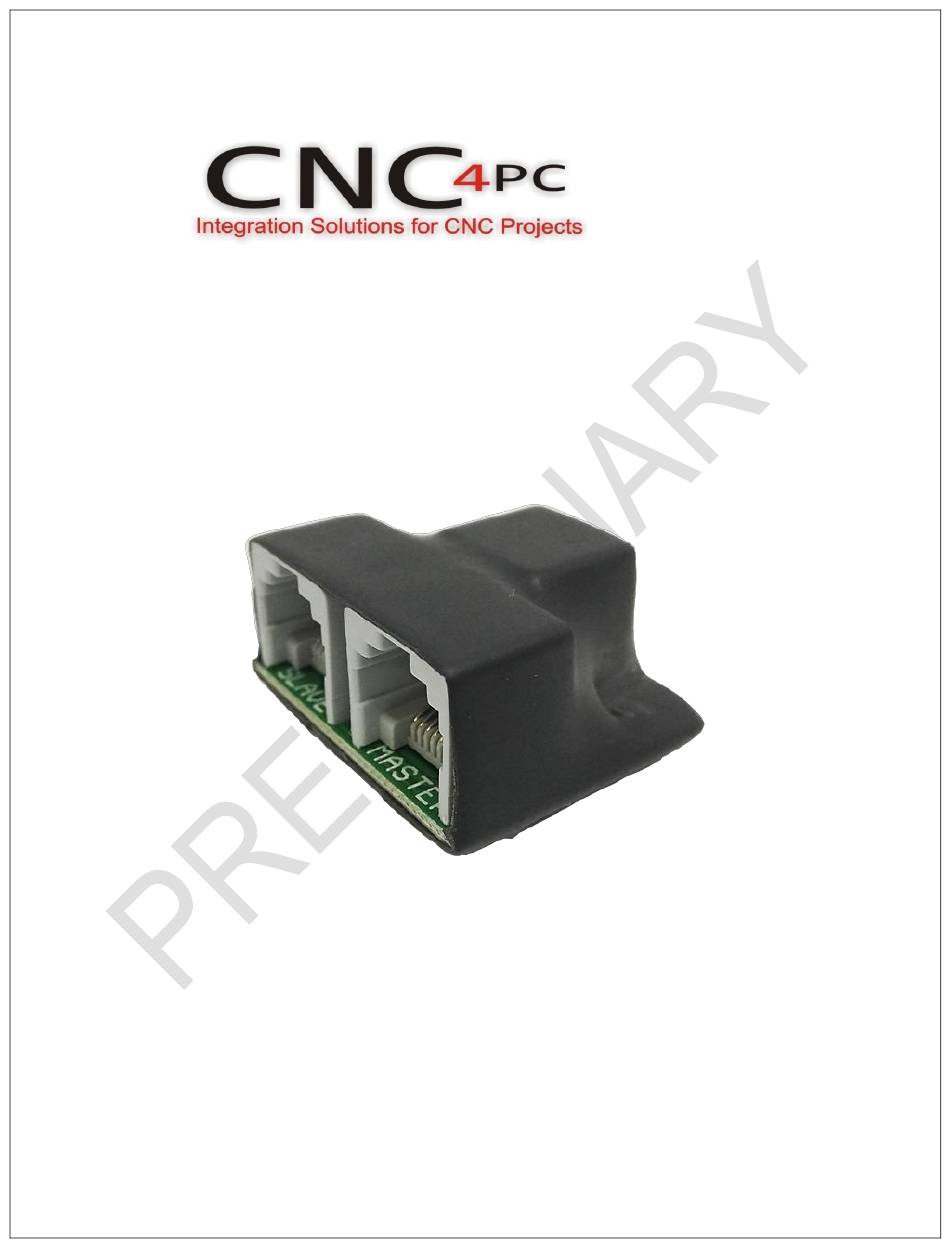

- Page 1 USER’S MANUAL VER.1 C88 RJ45 Split Axis Board Rev. 1 AUGUST, 2019...
- Page 2 USER'S MANUAL TABLE OF CONTENTS Contents Page # OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE DIRECTION ................ 2 PINOUT ........................... 3 WIRING EXAMPLE ......................4 DIMENSIONS ........................5 User’s Manual Page i...
- Page 3 • It also connects Fault and Enable Signals. • Has a jumper to allow reversing the direction of the slave axis. • Simple and straight forward wiring using standard CAT5/6 cables. • Compatible with all CNC4PC breakout boards using RJ45 for axis connections. BOARD DESCRIPTION User’s Manual...
- Page 4 JUMPER TO SELECT THE DIRECTION Use the Jumper in position 1-2 to reverse the direction Use the Jumper in position 2-3 to keep the direction User’s Manual Page 2...
- Page 5 PINOUT INPUT AXI MASTER AXI SLAVE AXI RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN STEP(IN) STEP(OUT) STEP(OUT) ERROR/RES(IN) ERROR/RES(OUT) ERROR/RES(OUT) DIR(IN) DIR(OUT) DIR(OUT) 12/24VDC(IN) 12/24VDC(OUT) 12/24VDC(OUT) 5VDC(IN) 5VDC(OUT) 5VDC(OUT) User’s Manual Page 3...
- Page 6 WIRING EXAMPLE User’s Manual Page 4...
- Page 7 DIMENSIONS All dimensions are in Millimeters DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
