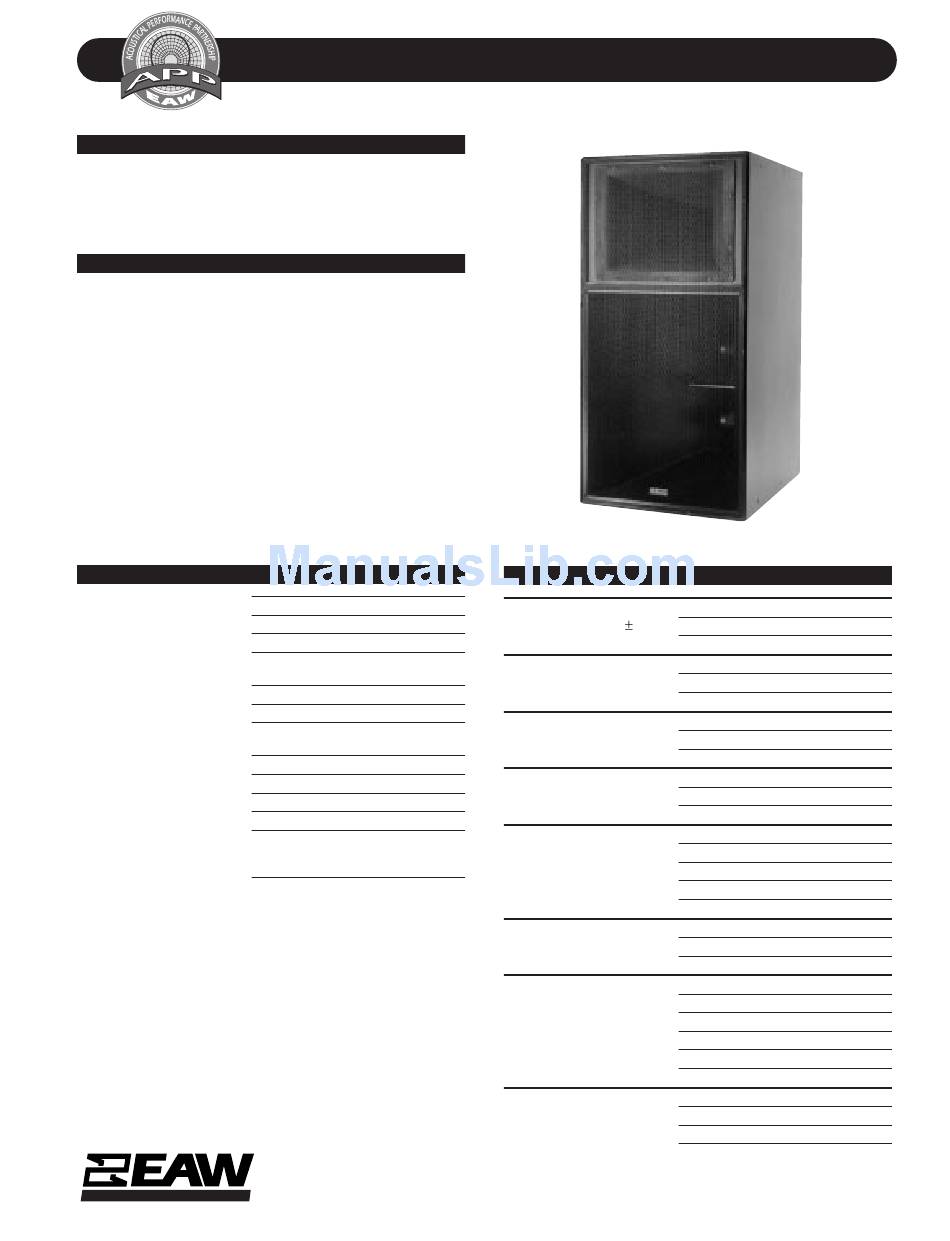

EAW MH242iE Technical Specifications

DESCRIPTION
A 2-way biamp mid/high system in a trapezoidal enclosure.
Includes 2x horn-loaded 12-in midrange cones and a 2-in
exit compression driver on a 40 x 30 constant directivity
horn.
APPLICATIONS
The MH242iE Virtual Array mid/high loudspeaker is engi-
neered to combine with BH, BV or TD Series LF modules to
create true 3-way large format arrays. 3-way design dramati-
cally improves the quality of vocal reproduction while the
cone-driven large format midrange horn extends pattern con-
trol into the lower octaves. It provides very long throw and
very high output in large scale permanent installations. Com-
prehensive mounting/suspension points. Six year warranty.
Applications include:
Large Theaters
Concert Halls
Stadiums
Cathedrals
Large HOW's
Dance Clubs
DESCRIPTIVE DATA
Part Number 999090
Product Group M
MF Subsystem & Loading 2x 12-in Horn Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Mid/High
Powering Mode Biamp (MX Series Processor)
Recommended High-Pass
Frequency (24 dB/Octave) 80Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 6-Terminal Barrier Strip
Suspension Hardware (24) 3/8"-16 threaded mounting/
suspension points (6 each top,
bottom and sides)
Grill Vinal Coated Perforated Steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MH242iE 999090 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS MH242iE
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohm)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
3 db 120Hz to 17kHz
-10 dB 80Hz
MF 113
HF 115
MF 4 or 2x 8
HF 10
MF AES Standard 800
HF AES Standard 200
MF Peak 148.0
HF Peak 144.0
MF Long Term 142.0
HF Long Term 138.0
Horizontal 40
Vertical 30
inches millimeters
Height 56.43 1433
Width (Front) 29.75 756
Width (Rear) 15.625 397
Depth 42 1067
Trapezoid Angle 9.5 degrees per side
pounds kilograms
Net Weight 382 173.8
Shipping Weight 387 176.1
