KEY FUNCTIONS
16 Radio mode
• Use digit to select radio station or press and hold
to save the station.
Playback/ BT mode
• Press to PAUSE/PLAY.
17
Radio mode
• Press to increase radio frequency manually. Press
and hold to increase radio frequency automatically
Phone (BT) mode
• Press to skip to next song.
Playback mode
• Press to skip to next track/chapter. Press & hold to
fast forward current track.
18
Radio mode
• Press to decrease radio frequency manually. Press
and hold to increase radio frequency automatically
Phone (BT) mode
• Press to return to beginning of current song
Playback mode
• Press to skip to previous track/ chapter. Press &
hold to fast reverse current track.
19
AUX-IN
20 MUTE
21 Radio mode
• Press to switch between radio band FM1 - FM2 -
FM3 or press and hold for automatic radio stations
scan and save .
Playback mode
Press to enter manual selection.
•
Phone (BT) mode
• Press to end call.
22 Press to switch EQ between ROCK - POP - CLASS -
JAZZ.

OPERATION

BLUETOOTH

Pre-pair Bluetooth
• Ensure mobile phone supports Bluetooth function
before pairing. Different mobile phone will have
different emissive power. To get the best connection,
the recommended distance range is 3m without any
object obstruction.
Pairing
•
Turn on mobile phone's Bluetooth to set up.
(Please refer to the instruction manual of the
mobile phone on how to operate Bluetooth)
• "Osaka 300" should appear on your
available Bluetooth scanning list.
• Select "Osaka 300" . Pairing successful when phone's
Paired Device list appear as "Connected" under
Osaka 300.
General
Power supply (12V) ..........................................................11 ~ 16V
Current Consumption ...................................................max. 10A
Max. power output ............................................................4 x 50W
Dimension (WxDxH) .....................................180 x 120 x 55mm
Weight ....................................................................................0.318kg
Operation temperature ................................................-20° ~ 60°
FM Stereo Radio
Frequency range ....................................................87.5 - 108MHz
Preset memory stations ..............................................................18
Sensitivity ................................................................................<20dB
Stereo separation .................................................................>25dB
SNR .............................................................................................>60dB
Audio Specification
Frequency response ...............................................20Hz - 20kHz
Speaker impedance ...........................................................4 ohms
Playback
USB/SD .............................................................................MP3, WMA
Display ..............................................................................ID3 display
Distortion .................................................................................<0.3%
SNR .............................................................................................>60dB
Bluetooth
Profile ..........................................................................................A2DP
Aux-In .............................................................................3.5mm jack
4

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt
authorized dealer if problem persist.
Problems Possible Causes
Unable to start up The car key is not inserted into the
ignition; ignition is off
Power Cable is not inserted into the
main body.
Burnt power fuse .
Drained car battery.
No sound Audio cables are not properly connected
to the unit.
Mute setting is on.
Low volume.
No sound from front, rear, left & right
speakers due to Fade-Balance settings.
Slow in SD card SD card may contain corrupted files or
reading virus.
Unable to search Radio's antenna is not well inserted.
radio stations

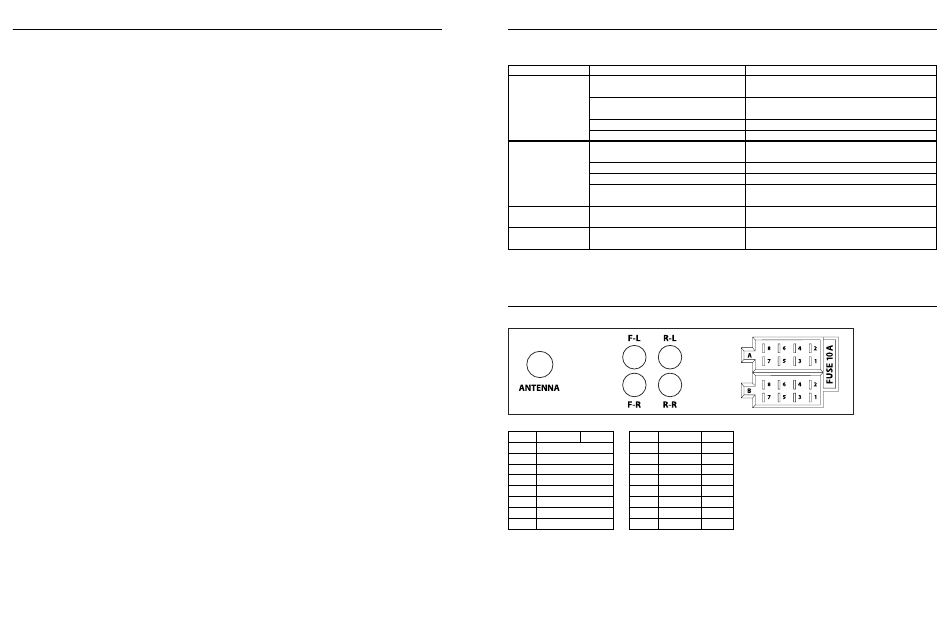

WIRING DIAGRAM

NO. WIRE A NO. WIRE
1 REAR LEFT - 1 BLACK
2 REAR LEFT + 2 RED
3 FRONT LEFT - 3 -
4 FRONT LEFT + 4 BLUE
5 5 YELLOW
FRONT RIGHT -
6 FRONT RIGHT + 6 -
7 REAR RIGHT - 7 -
8 REAR RIGHT + 8 -
Solutions
Insert the car key and turn on the ignition.
Insert the power cable.
Replace it with a new fuse.
Charge or replace the car battery.
Ensure proper connection of the audio cables.
Unmute the volume.
Adjust the volume.
Select Equalizer from Home Page to adjust setting.
Replace it with a new audio/video SD card with
compatible file formats.
Ensure radio antenna is properly installed.
B
GND
ACC
-
ANT
B+
-
-
-
