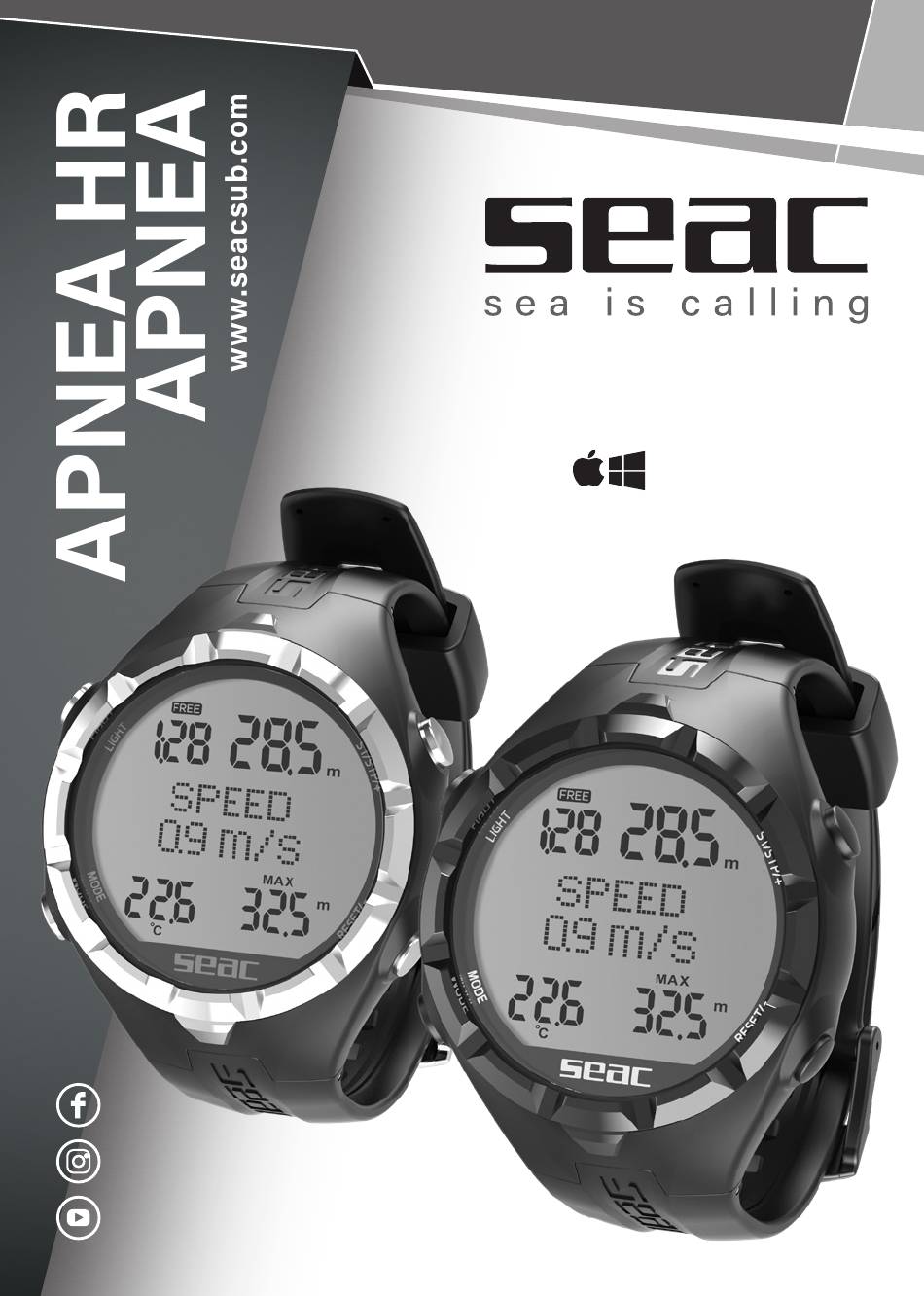

- Page 1 ISTRUZIONI - INSTRUCTIONS INSTRUCTIONS - INSTRUCCIONES ANLEITUNG - ΟΔΗΓΙΕΣ OS / WINDOWS COMPATIBLE...
-
Page 2: Table Of Contents
Table of Contents FREEDIVING MANUAL ........3 DIVE PARAMETERS ...........23 Freeset ................23 GENERAL WARNINGS ........3 USER SETTINGS RANGE .........24 SWITCHING ON THE APNEA ......6 APNEA DURING THE DIVE ......25 TECHNICAL CHARACTERISTICS ....6 DIVE IN FREE MODE ..........25 HARDWARE .............6 AFTER THE DIVE ...........28 APPLICATION SOFTWARE ......7 Logbook ................28 FUNCTIONS OF THE APNEA COMPUTER ..8... -
Page 3: Freediving Manual
FREEDIVING MANUAL Congratulations on your purchase of a SEAC diving computer. The SEAC Apnea dive computer is a technologically advanced device designed and manufactured to provide all the information that every diver needs. Periodically check www.seacsub.com for any updates to this manual. - Page 4 • WARNING! It is strictly forbidden to freedive in the 12 hours after diving with scuba equipment! Violating this rule could considerably increase the risk of decompression sickness. • WARNING! No fly time after a freediving session Because no in-depth hyperbaric studies are available that are sufficient to evaluate the safety of flying for freedivers, in order to avoid decompression sickness following deep freedives, it is recommended that you wait 18 to 24 hours before boarding a plane, depending on the total dive time, the...
- Page 5 APNEA • WARNING! Always check that the settings are correct for your dive, and don't allow anyone else to tamper with your computer before the dive. If it has been tampered with by another person, check that your settings are correct. •...
-
Page 6: Switching On The Apnea
Backlighting: LED, user-adjustable. Battery: CR2450, non-rechargeable, 3V 600mAh, user-replaceable (we strongly recommend that you have this done at an authorized SEAC center, also replacing the O-ring in the battery compartment). Buttons: Pressure/Temperature sensor: Piezoresistive. Alarm Type: Audible and visual. PC/Mac connection: Serial via USB with special dedicated cable (optional). -
Page 7: Application Software
APNEA APPLICATION SOFTWARE Updates: Supported through serial port via USB. Factory mode: Supported to save energy, can be set by the user. Auto Recovery: Automatic reboot if software locks. Restore: Manual, through combination of buttons/ time. Dive modes: Freedive (with MSST “Minimum Suggested Surface Time”). -
Page 8: Functions Of The Apnea Computer
FUNCTIONS OF THE APNEA COMPUTER Software a) MSST Minimum Suggested Surface Time The MSST is minimum interval of time on the surface that is suggested between two dives to reduce freediving risks. • WARNING! The minimum suggested recovery times between two dives indicated by the MSST calculation can reduce, but not eliminate, the risks of accidents caused by freediving, such as syncope, Taravana, and/or hemoptysis, because there are many other factors to consider, such as age, body... - Page 9 APNEA b) Hydration • WARNING! It is well known that dehydration, along with other freediving conditions and the freediver's physical condition, can contribute to freediving accidents. To reduce these risks, the Apnea computer periodically reminds the freediver to hydrate by drinking water. In every session, the reminder to hydrate will be displayed about every 2 hours.
-
Page 10: Logbook
e) Dive Time Exceeded Alarm The Dive Time Exceeded audible alarm sounds when the freediver exceeds the Dive Time value set in the corresponding section of the ALARMS menu, if activated. This alarm stops automatically after 30 seconds, or can be stopped manually by pressing any button. -
Page 11: Reboot
• WARNING! End users should only reboot this way in special situations, for example when asked to do so by an authorized Seac technician in an online technical support session to solve a problem with the device. • Automatically: in the event of Application Software errors to prevent “Freezing”... - Page 12 When the Software Application is launched, a test of the battery under load is performed. When this happens you may notice the backlighting turn on temporarily. If the battery voltage under load is less than 2.0V (Minimum Voltage), the device will remain off or locked, on a screen with the words “LOW BAT”...
-
Page 13: Time And Time Zones
APNEA Time and Time Zones The computer can handle two time zones: • Local Time: Time at the user's location. • Home Time: The time at home. The reference time is always the LOCAL time, and is indicated in the center of the Watch screen, or in secondary screens during FREE dives. -
Page 14: Divelogger
DiveLogger Dive data can be downloaded to be saved, viewed, and processed. The software for both Windows 10 and Mac is available for free download on the website www. seacsub.com. However, to connect the Apnea to a PC you need a special USB cable that can be purchased separately. -
Page 15: User Data Memory
APNEA User Data Memory: The computer settings data that the users enters/edits, the tissue data, and the current date/time are saved every 15 minutes. Therefore, if you change the battery, the data that are restored on reboot are at most 15 minutes old, so the time will only need to be adjusted manually by a few minutes. -
Page 16: Countdown - Cdt Dwn
Countdown - CDT DWN The resolution of the countdown is in seconds. It can be set to a maximum of 99 hours, 59 minutes, and 59 seconds. Five seconds from the end of the time set, an audible alarm will sound each second. -
Page 17: Alarm - Clk Alm
APNEA Alarm - CLK ALM The alarm is daily, and is synchronized to local time. Only one alarm can be set. The alarm lasts 60 seconds and can be stopped early by pressing any button. To enter the Alarm function from the watch screen press the HR button followed by the LR button until the words CLK ALM appear. -
Page 18: Display
LAYOUT MENU: ALARMS Display BACKLIGHT BRIGHTNESS LEVEL (BKL LEV): Levels available from 0 to 3 (if you select “0” backlighting will not activate) BKL TIME: duration of the backlight in seconds in AUTO mode; selectable from 2” to 60” . BKL MODE: 3 modes: AUTO by choosing this option, the backlight will remain on for the preset time. -
Page 19: System Settings (System)
APNEA • WARNING: intense use of the backlight will consume the battery faster, so it will not last as long. CONTRAST: 5 display contrast levels can be selected. For each mode, set the choice using the HR (+) and LR (-) buttons and confirm with the LL button (Mode) and move to the next selection. -
Page 20: Pc Mode
with the LL button (Mode) and move to the next selection. Press LL and LR at LAYOUT MENU: SYSTEM the same time to return to the main view. PC Mode LAYOUT MENU: PC To connect your Apnea to a PC or Mac to link with the Dive Logger software and download your data, your Apnea must be set to this mode before you connect it to the computer with the special USB cable (optional). -
Page 21: Info Mode
APNEA LAYOUT MENU: INFO Info mode The Info screen shows: the name of the model, the serial number (which is also laser engraved on the back of the case), and the firmware version installed. Seriali >= C-001000 Reset To avoid resetting by mistake and losing the user settings as a result, you need to confirm a reset twice: Seriali <... -
Page 22: Off (Factory Mode)
LAYOUT MENU: RESET OFF (factory mode) “Factory Mode” is a special function for reducing energy consumption to a minimum and helping the battery last as long as possible. The computer will be “off”, while still keeping all settings, storage, and time calculation in memory. -
Page 23: Dive Parameters
APNEA DIVE PARAMETERS Freeset Press the LL button once, followed by the LR button once. The word FREESET will appear in the middle of the display. Press the LL button once to enter the submenu where you'll be able to: •... -
Page 24: User Settings Range
USER SETTINGS RANGE MENU PARAMETER RANGE DEFAULT UNIT NOTES MSST ALGO ON/OFF LOG RATE WATER SALT/ SALT FRESH MENU PARAMETER RANGE DEFAULT UNIT NOTES MSST ON/OFF DEPTH ON/OFF RANGE 3 mt/10 ft 99 mt/325 ft TIME ON/OFF RANGE 10s - 5990s MENU PARAMETER... -
Page 25: Apnea During The Dive
APNEA APNEA DURING THE DIVE • WARNING! LAYOUT MODALITA' FRE This manual does NOT replace adequate training! DIVE IN FREE MODE Main screen in FREE dive mode before the dive Dive time – Depth Instantaneous descent or ascent speed during the dive; or, surface time: the timer starts as soon as the diver emerges. - Page 26 LAYOUT MODALITA' FREE When the diver surfaces, two counters launch immediately in the center of the display: SURF: indicates the surface interval. It continues to indicate surface time, even when the MSST has dropped to zero. MSST: indicates the Minimum Suggested Surface Time between one dive and the next in countdown mode.
- Page 27 APNEA Two hours after a session begins, and then every subsequent 2 hours, the center of the screen will display a warning to hydrate by drinking water. This notice will reappear each time the diver emerges, until the diver accepts by pressing one of the two lower buttons. Two hours after confirming, the warning will appear again, and this pattern will continue for the rest of the session.
-
Page 28: After The Dive
LAYOUT MEN AFTER THE DIVE Logbook The computer memory intended for saving FREE dives taken is limited to: - Approx. 30 hours with sampling every 2 seconds - Approx. 15 hours with sampling every second Logbook display LAYOUT MENU: LOG Historic summary screen Maximum depth reached Maximum dive time executed... -
Page 29: Connect Your Apnea Computer To Your
APNEA Navigating between dives in a single session Dive Time Dive Depth Session number Dive Date Dive Number Min. Dive Dive Start Time Time Connect your APNEA computer to your Mac or PC The APNEA can be connected to your Mac or PC through the DiveLogger program to download dives and run updates. -
Page 30: Fitness Function: Step Counter
Fitness function: step counter The Apnea computer features a convenient step counter that is activated by an accelerometer inside the device, and special software, that when set with the user's information (height, weight and age), manages all data for the run or walk with considerable accuracy. -
Page 31: Replacing The Battery
4 hours. REPLACING THE BATTERY • WARNING! Batteries should always be replaced by an authorized SEAC Center, because this is a delicate operation with a high probability of subsequent flooding of the computer if performed by inexpert personnel. -
Page 32: Apnea Serial Number
inserts fixed in the case, we recommend not tightening with excessive force to reduce the risk of stripping. The recommended torque is 12 Ncm. The O-ring seal on the battery compartment is radial, so excessive closing force on the compartment screws is not necessary. NOTE Do not dispose of used batteries in the environment or discard them as ordinary waste;... -
Page 33: Certificate Of Guarantee
1. The warranty has a duration of 2 (two) years starting from the time the product is purchased at a SEAC authorized dealer and requires no prior or subsequent formal validation. 2. The warranty is acknowledged only to the original buyer of the product at a SEAC authorized dealer. - Page 34 6. This warranty may also be exercised by shipping the product believed to be defective to SEAC. The authorized intermediary for this operation must be the SEAC dealer where the product was purchased. If this is not practically possible, solely upon authorization from SEAC, customers may by authorized to send the defective product to any other SEAC dealer or directly to SEAC itself.
- Page 35 (labor, spare parts if any, and shipping charges). Failing this, SEAC will return the product at the expense and care of the recipient. The warranty always excludes defects or imperfections deriving from: •...
- Page 36 NOTES ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 37 APNEA NOTES ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 38 Via D. Norero, 29 San Colombano Certenoli (GE) 16040 Italy Phone +39 0185 356301 Fax +39 0185 356300 seacsub@seacsub.com www.seacsub.com SEAC USA Corp. Phone +1 786 580 3695 seac.usa@seacusa.com www.seacusa.com MADE IN CHINA • Rev. A - 05/21 Artbook.net 17851/21...
