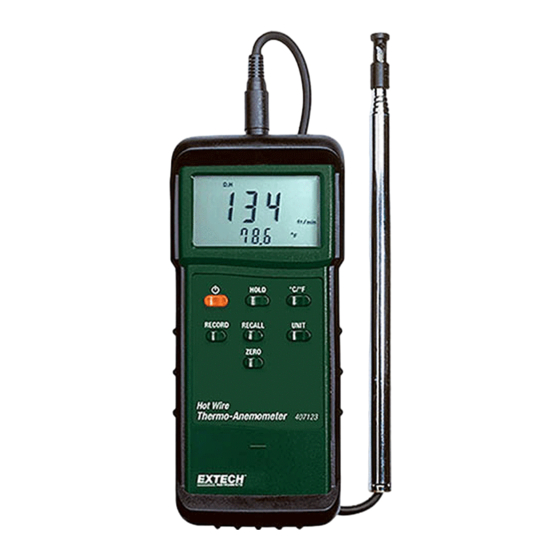

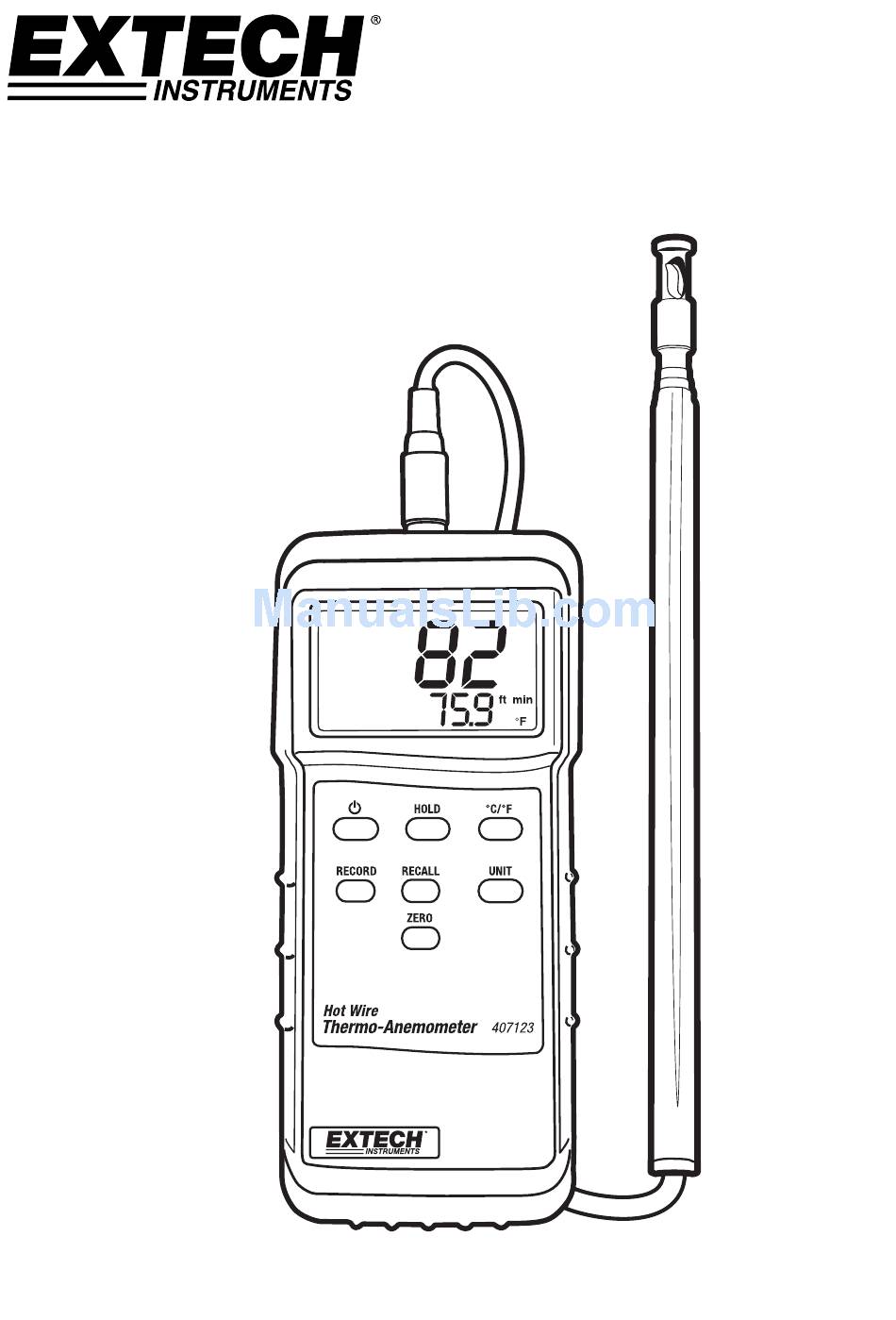

- Page 1 User's Guide Hot Wire Thermo-Anemometer Model 407123...
- Page 2 Introduction Congratulations on your purchase of the Extech Hot Wire Anemometer. This instrument measures air flow and temperature by placing the sensor into an airway such as a duct or a vent. The sensor is situated at the end of the telescoping wand for convenience and has a protective sliding cover.
- Page 3 4. View the air velocity and temperature readings on the LCD Display. The large main LCD display indicates the Air Velocity reading. The lower LCD sub-display indicates the temperature reading. 407123-EU-EN v6.6 3/14...
- Page 4 The meter is equipped with an RS-232 PC Interface jack at the top of the meter (next to the sensor input jack). For streaming of data to a PC via the RS232 Output jack, the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software (available free at www.extech.com) are required. 407123-EU-EN v6.6 3/14...
-
Page 5: Specifications
*or, ±(1.0%FS+3d) whichever is greater Temperature 0 to 50 C (32 to 122 F and C (1.5 Note: m/s: meters per second; km/h: kilometers per hour; ft/min: feet per minute; Knots: nautical miles per hour; MPH: miles per hour 407123-EU-EN v6.6 3/14... - Page 6 Units Conversion Table ft/min knots km/hr 1 m/s 196.87 1.944 2.24 1 ft/min 0.00508 0.00987 0.01829 0.01138 1 knot 0.5144 101.27 1.8519 1.1523 1 km/hr 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 407123-EU-EN v6.6 3/14...
