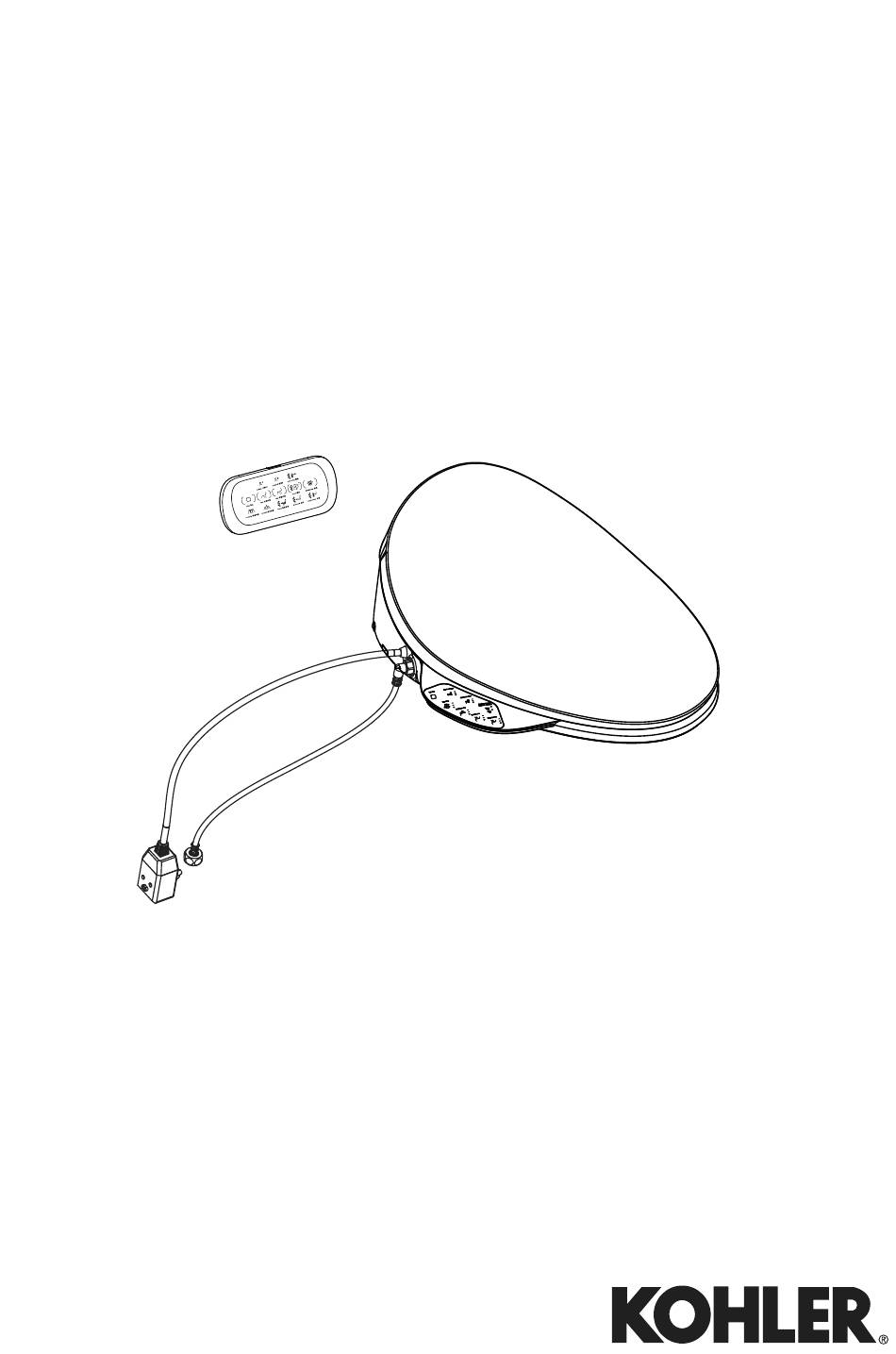

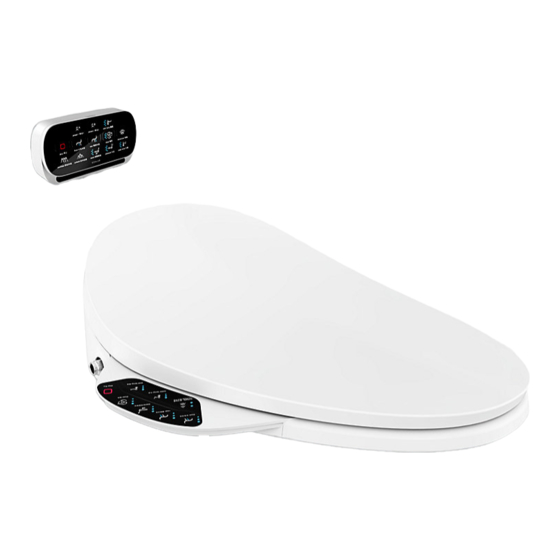

- Page 1 Homeowners Guide 用户手册 Smart Seat 清舒宝智能便盖 C3-230 K-4108T-0 科勒（中国）投资有限公司 中国上海市静安区江场三路158号 邮编：200436 制造商：上海科勒电子科技有限公司 中国上海市宝山区丰翔路1955号 邮编：200444 English page 2-21 中 文 页 码 22-41 1223525-T01-M...
-
Page 2: Cautions And Warnings
Children are not allowed to use or touch this product. Do not leave children alone in a room with such product. 1223525-T01-M Kohler Co. - Page 3 □ recommended by Kohler Co. such as T-valve etc. Do not lean on cover when use this appliance to prevent product from damage. □...
-
Page 4: Specifications
* The description of water efficiency label marked on Bidet: water efficiency label represents a compliance mark of the water efficiency grade etc. performance of Bidet. * Power value testing condition: dynamic pressure 0.2MPa, inlet water temp 15°C. 1223525-T01-M Kohler Co. - Page 5 All information in this manual is based upon the latest product information available at the time of publication. At Kohler, we constantly strive to improve the quality of our products. We reserve the right to make changes in product characteristics, packaging or availability at any time without notice.
-
Page 6: Operation
In the rear wash state, the flushing intensity can be changed first from low to high and then from high to low, stage by stage cyclically by continuously pressing the REAR WASH button. It will stop automatically after 5 minutes of continuous flushing. 1223525-T01-M Kohler Co. - Page 7 During the third week, the ring bases its judgment on the data collected during the previous week to decide when it enters into Power Save mode. It works the same for the following weeks. Kohler Co. 1223525-T01-M...
- Page 8 16mm×8mm irradiation area. Perform test in accordance with GB /T 23131 requirements, UV radiation zone was shown in the diagram, UV working cycle activation mode refers to users guide. Testing lab: China household electrical appliances testing institute.) 1223525-T01-M Kohler Co.
- Page 9 Press this icon to adjust the seat temperature among the 5 gears available or turn off the seat warming function. Long press the icon to enter / exit energy-saving mode. J - "Deodorizer" icon Press this icon to start deodorizer function. To stop the function, press the "Stop" icon. Kohler Co. 1223525-T01-M...
- Page 10 If the devices are reconnected , the icons will stop flashing and resume previous state. Initialize each word Long press the "Stop" icon to force shut down the device. 1223525-T01-M Kohler Co.
- Page 11 When the unit is used for the first time, the following has been preset. Front Wash: Seat temperature: mid Dryer temperature: mid Water Temperature: mid Night light: function on Water Pressure: mid Power save: off Position: mid Rear Wash: Water Temperature: mid Water Pressure: mid Position: mid Kohler Co. 1223525-T01-M...
- Page 12 1/3 from the front of the seat (sensor area). Proceed to the “Keypad and Panel Diagram” and “Operation” Sections to test the various seat functions. 1223525-T01-M Kohler Co.
-
Page 13: Care And Cleaning
Care and Cleaning For best results, keep the following in mind when caring for your Kohler product: IMPORTANT! Do not immerse product in water. Test First - Always test your cleaning solution on an inconspicuous area before applying it to the entire surface. - Page 14 After having the bidet wand cleaned, press and hold the BIDET WAND button for over 2 seconds, the bidet wand will retract. Otherwise, the bidet wand will automatically retract after a while. 1223525-T01-M Kohler Co.
-
Page 15: Clean The Screen
Reinstall the screen. Take care to face right in position to the thread. Reconnect the water supply hose to the seat. Check all connections for leaks and make any adjustments as needed. Turn on the water supply. Kohler Co. 1223525-T01-M... - Page 16 Otherwise, it may be damaged. Unload the jalousie. Pull out the original deodorization block. Replace with a new one. Load the jalousie. Make sure no impurities in the deodorization assembly before renewing the deodorization block. 1223525-T01-M Kohler Co.
- Page 17 Disconnect the water supply hose from the T-valve. Press the release button(see illustration). Slide the seat forward to disengage the seat front the mounting plate. The seat will contain water until drained. Refer to the “Drain the water from the seat” section. Kohler Co. 1223525-T01-M...
-
Page 18: Troubleshooting
Drain the water from the seat. Reinstall the drain plug. Troubleshooting This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. -
Page 19: Remote Control
C. Water supply screen plugged. C. Clean the screen according to the installation guide. D. None of the above actions D. Contact a KOHLER Service correct the symptom. Representative. Cleansing Functions Symptoms Probable Causes Recommended Action 1. - Page 20 Probable Causes Recommended Action 1. The seat moves both A. Tighten the bolts of the A. The bolts for the mounting plate up and down and right mounting plate. that secure the main unit are and left. loose. 1223525-T01-M Kohler Co.
- Page 21 GB/T 26572. :Indicate only partial product series contains this substance. Note: the information provided is based on the supplier data and Kohler inspection results. The product is designed not to hurt the environment. Under current technology, all hazardous materials have been used in the smallest amounts possible.
- Page 22 安全注意事项 保存这些说明 警告：触电、火灾或人身伤害的危险。 220V~ , 50 H z, 10A 警告：触电或产品损伤的危险。 重要！产品损伤的危险。不要安装在水可能溅到的地方。 重要！产品损伤的危险. 重要！ 重要！ 重要！ 重要！ 注意： 危险-降低触电的危险： 警告-避免低温灼伤、触电、火灾或人身损伤 常 识 待 1223525-T01-M Kohler Co.
- Page 23 安全注意事项 如三通等。 在安装本产品的同一房间中，需要在触手可及的位置安装一个止水阀， 用于紧急情况下，无需借助工具即可切断本产品的进水水路；否则本 产品的意外故障可能会导致用户损失。 必须 如须再次接通电源， Kohler Co. 1223525-T01-M...
- Page 24 供水压力 最大进水压力 额定电压 约 额定功率 约 最大瞬时功率 约 约 进水温度 使用环境温度 有，档位可调 有，档位可调 出水流量(水压 时) 臀部冲洗最大档不小于 关、五档可调 室温、约 ℃ 约 档 开 关 开 关 关、五档可调 盖板 关、五档可调 有 除菌 漏电保护器 其它安全装置 遥控器 * 智能座便器加施的水效标识的说明：水效标识表示智能座便器水效等级等性能的一种符合性标志。 * 功率值测试条件：动压0.2MPa，进水温度15℃。 1223525-T01-M Kohler Co.
- Page 25 盖板（ 抗菌 * ） 座圈（抗 菌 * ） * 抗菌：含无机系抗菌材料的座圈、盖板长期抗细菌，抑制产品表面的细菌生长，这一加工处理不代表防霉等附带效果。抗菌率 大于90%（依据GB21551.2-2010进行试验。测试机构：中国家用电器检测所、上海出入境检验检疫局机电产品检测技术中心） Kohler Co. 1223525-T01-M...
- Page 26 1223525-T01-M Kohler Co.
- Page 27 本机附带宽幅清洁功能，如想使用宽幅清洁，请长按脉动/移 动冲洗键约2秒后启动臀部移动冲洗。 Kohler Co. 1223525-T01-M...
- Page 28 J - 除菌 非落座时，如果长时间无人使用，将自动启动UV除菌功能，对喷管进行除 菌。除菌结束后24小时之内不会再次启动该功能。 UV 照射范围 喷嘴 * UV除菌（是指UV灯产生紫外线除菌）：在UV工作周期内通过照射对喷嘴表面进行除细菌。除菌率大于99%（在UV的一个 工作周期后于16mm×8mm的照射区域内依据GB /T 23131进行试验，UV照射区域见示意图，UV工作周期开启方式见操作说 明。测试机构：中国家用电器检测所） 1223525-T01-M Kohler Co.
- Page 29 Kohler Co. 1223525-T01-M...
- Page 30 M - 水压键 在开启女性冲洗或臀部冲洗后，按此键调节水压档位。 预设功能 在女性冲洗、臀部冲洗及暖风功能未启动的情况下，短按 或 ，将当前参数 恢复为用户预设值。各档位指示灯长亮5秒。 长按 或 ，将当前的女性冲洗或臀部冲洗参数( )进行预设存储，各档位指示灯长亮5秒。 低电压报警 注意：电压报警后请及时充电。 当 键闪烁时，表示遥控器内置电池电量将耗尽，需将遥控器放置在基座上充电； 当基座窗口中红灯闪烁，表示基座中电池电量将耗尽。需更换电池。 配对 注意：配对操作只能在离座状态下进行。 座便盖正常上电，按遥控器顶端开机键开机，当 长时间 闪烁，即表示该遥控器需要与本体进行配对操作。 长按 键,当 快闪后开始进行本体端操作。 同时长按本体侧键盘的 键和 键，直到听到一声短鸣后放开按键。 看到遥控器 停止闪速，即配对成功。 配对过的遥控器需断开连接后才能进行配对操作。 遥控器与本机的通讯 当遥控器与本机的通讯断开后， 图标将自动闪烁提示，当自动 连接上后图标停止闪烁，恢复进入上一次的使用状态。 关机功能 任何时候长按 键，遥控器进入关机状态。 1223525-T01-M Kohler Co.
- Page 31 确认进水阀是否已打开。 功能 Kohler Co. 1223525-T01-M...
- Page 32 1223525-T01-M Kohler Co.
- Page 33 注意：长期放置不用时，可能会由于马桶里面水分挥发 完毕后，下水道的气体溢出导致塑料件变黄风险，打开 上盖或往马桶里面加水可有效避免该问题。 Kohler Co. 1223525-T01-M...
- Page 34 1223525-T01-M Kohler Co.
- Page 35 Kohler Co. 1223525-T01-M...
- Page 36 扫码查看替换装，型号：21039T-NA。 1223525-T01-M Kohler Co.
- Page 37 Kohler Co. 1223525-T01-M...
- Page 38 1223525-T01-M Kohler Co.
- Page 39 Kohler Co. 1223525-T01-M...
- Page 40 “ ” “ ” 1223525-T01-M Kohler Co.
- Page 41 ○ ○ ○ ○ ○ * 电池 ○ ○ ○ ○ ○ * 陶瓷类组件 ○ ○ ○ ○ ○ ○ * 水箱组件 ○ ○：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572现行 有效版本规定的限量要求以下。 ×：表示有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 现行有效版本规定的限量要求。 *：表示部分机型含有该部件。 注：本表格提供的信息是基于供应商提供的数据及科勒公司的检测结果。 本产品应用环保设计理念，在当前技术水平下，所有有害物质或元素的使 用已经控制到了最低程度，科勒公司会继续努力通过改善现有技术来减少 这些物质的使用。 本产品的“环保使用期限”为10年，科勒公司根据产品设计特性 指定该期限。只有在本产品使用说明书所述的正常情况下使用本 产品时，“环保使用期限”才有效。 Kohler Co. 1223525-T01-M...
