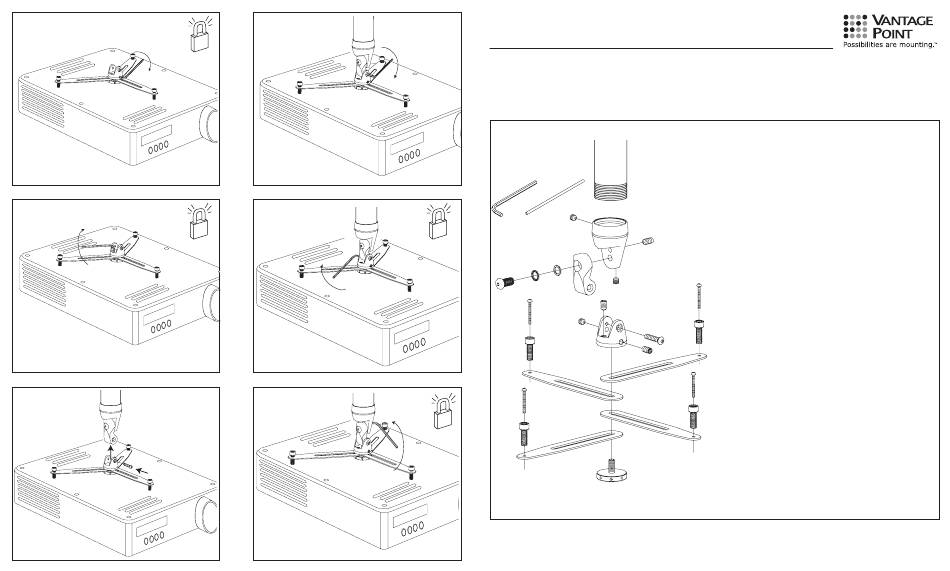

Model CGUPMPA01 Universal Projector Mount
With Pipe Adaptor Assembly Instructions
NOTE! Hardware has not been supplied for installation from the Pipe Adaptor upward. Installer must provide desired
length of 1-1/2" NPT Pipe and hardware at ceiling attachment point. Preview all steps before beginning. Should any portion of
these instructions be unclear, contact us directly at 800-582-9595 for assistance. Do not attempt to assemble this Vantage Point
Universal Projector Mount, if you have any doubts as to its proper assembly and installation.
weight indicated. Use with heavier than the maximum weight indicated may result in instability causing possible injury. Use of this
product for any other purpose unless specifi ed by Vantage Point Products is not recommended. Think
1-1/2" NPT PIPE NOT INCLUDED
A
B
J
C
H D
G
F
E
J
K
P
J
L
I
Q
D
P M
Q
O
N
Maximum Projector Weight: 50 lbs
Vantage Point Products Corp • P.O. Box 2485 Santa Fe Springs, CA 90670 USA
USA Tel: 1.800.582.9595 • Canada Tel: 905.607.9994 • Europe Tel: 31.72.581.6056
Web Site: www.vanptc.com • Email: cons-serv@vanptc.com
CAUTION - Do not exceed maximum
Safety First!
PART DESCRIPTION
A 3/16" long arm hex key
B 5" steel dowel tool
C 1-1/2" NPT pipe adaptor
D 3/8"-16 x 3/4 socket head set screw
E custom button head bolt
F 1/2" serrated belleville washer
G bronze thrust bearing
H projector mount end link
I projector mount top rotator
J 3/8"-16 x 3/8" socket head set screw
K 3/8"-16 x 5/8" socket head set screw
L 5/16-18 x 1-1/2" button head cap screw
M projector mount attachment arm
N projector mount lower cap
O projector mount retention bolt (installed at factory) 1
P 4mm x 40mm pan head phillips screw
Q projector mount adjustment screw
