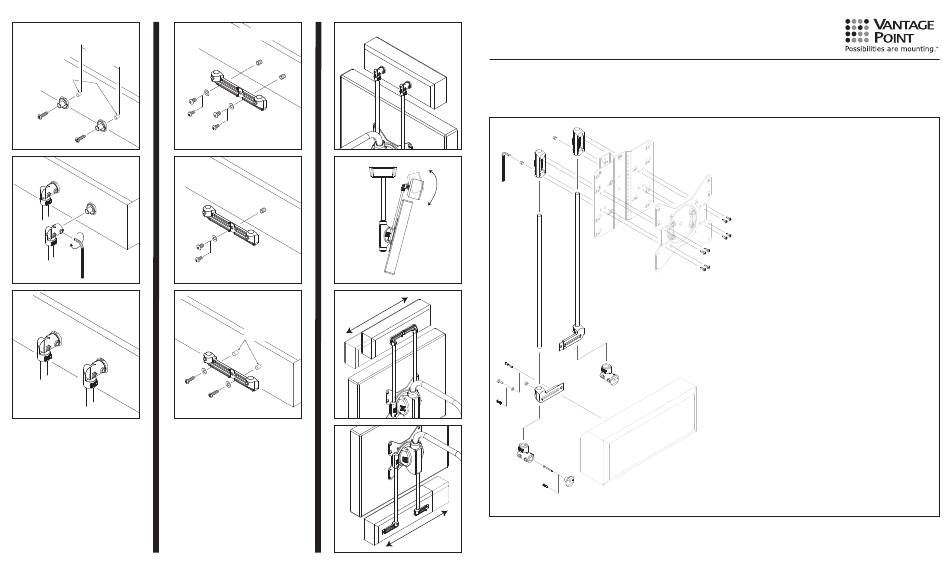

Vantage Point Products AX2LSB01 Assembly Instructions

Post Install Channel Arm Install
Solid Back
��
�������
���� ��� � ���� �����
� ������� � �������
F
E
G
E
E
Threaded Insert
H
F
H
G
F
H
G
Solid Back
���� ��� � ���� �����
� ������� � �������
H
H
E
Model AX2LSB01 Center Channel

Speaker Mount Assembly Instructions

Preview all steps before beginning. Should any portion of these instructions be unclear, contact us directly at 800-582-9595 for
assistance. Do not attempt to assemble this Vantage Point Center Channel Speaker Mount, if you have any doubts as to its proper
assembly and installation. CAUTION - Do not exceed maximum weight indicated. Use with heavier than the maximum weight
indicated may result in instability causing possible injury. Use of this product for any other purpose unless specified by
Vantage Point Products is not recommended. Think Safety First!
C 200mm
A
flat / tilting plate
(not included)
B
D
200mm
wall mount / ceiling plate
(not included)
M
E
F
I
H
G
J
K
center channel speaker
(not included)
L
G
Vantage Point Products Corp • P.O. Box 2485 Santa Fe Springs, CA 90670 USA
USA Tel: 1.800.582.9595 • Canada Tel: 905.607.9994 • Europe Tel: 31.72.581.6056
Web Site: www.vanptc.com • Email: cons-serv@vanptc.com
PART DESCRIPTION
A 5/32 short arm hex key
B 5/32 set screw (factory installed)
C center channel adjusting block w/set screw
D center channel 18" tube
E #12 x 3/4" s/m/s silver zinc
F 1/4-20 - 1/2" phillips pan head zinc
G 5mm -16mm phillips pan head zinc
H 1/4 - flat washer silver zinc
I left hand center channel arm w/set screw
J satelite link assembly
K #10 x 1" phillips pan head sheet metal screw
N L speaker mount post
M right hand center channel arm w/set screw
N 8-32 x 1/2" phil flat head plastic screw

Maximum Center Channel Speaker Weight:

15 lbs / 6.8 kg

WARRANTY INFORMATION

All Vantage Point Products Corp. products are manufactured to ensure
superior quality, performance and durability for a lifetime of use . War-
ranty covers the product to be free of defects in materials and work-
manship under normal and reasonable use. Vantage Point Products
will repair or replace, at our option, any product which proves to be
defective upon our inspection. This warranty will not apply to products
that have been lost or damaged by misuse, abuse or accident, altered
or repaired in any way or by any person or firm other than specified by
us, used in violation of instructions or incorrect assembly nor used in
a manner other than specified by us. This warranty is nontransferable
to a new owner and may require proof of purchase. All claims must
be directly handled with Vantage Point Products Corp. by calling us at
1-800-582-9595.
6i87-05/05
QTY
1
4
2
2
2
2
2
2
1
2
2
2
1
8
