Product Description
ALDES North America Ventergy® Series IAQ-BVS kit includes filters and Constant Airflow Regulators (CAR3®). The CAR3®
accurately balances the amount of fresh air brought into the house. The fresh air is then mixed and filtered with the
tempered air and distributed throughout the house. Blending/Filtering Ventilators are suitable for ALL ASHRAE Climatic
Zones. In extreme weather conditions, the ratio of inside air can be increased to offset temperature differences.

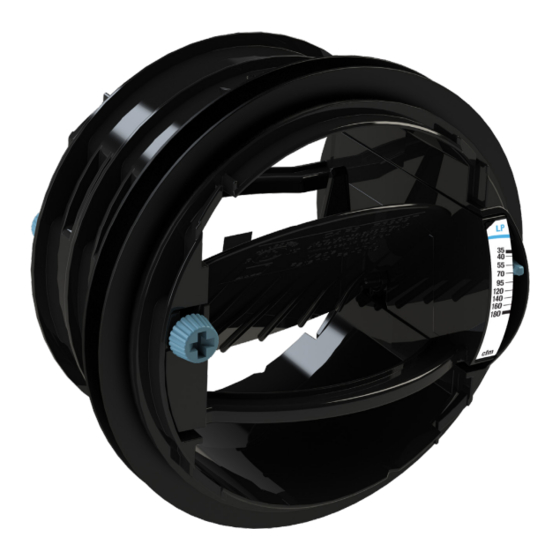

Airflow Regulators CAR3 ®***
RECOMMENDED
FAN
Sold separately
CAR3 ®
ENERGY STAR
(35-180 CFM)
Certified* Ventilator
BVS120
BVS200
BVS120 or BVS200
6" WYE
4" UNIVERSAL SLEEVE
W/BACKDRAFT
6" UNIVERSAL SLEEVE
6" ALGRILLE
FILTERED/TEMPERED AIR
TO LIVING SPACE
For more information, contact your Aldes sales advisor, visit aldes-na.com, call 1.800.255.7749, or find us on
IAQ-BVS_KIT_SPEC & IOM. ©2021 American ALDES Ventilation Corporation and ALDES Canada. All Rights Reserved. Reproduction or distribution, in whole or in part, of this document, in any form or by any means,
without the express written consent of American ALDES Ventilation Corporation and/or ALDES Canada, is strictly prohibited. The information contained within this document is subject to change without prior written notice.
5" 4"
CAR3 ®
(15-85 CFM)
1 2
1 3
4" CAR3 ®
4" WYE
DAMPER
4" DECO
GRILLE
RETURN AIR
VENTERGY
BLENDING/FILTERING ACCESSORY KITS
RESIDENTIAL
SYSTEM
SOLUTIONS
Supply Air
6" 6"
6"
Universal Backdraft
Algrille
Sleeve Damper
1 1 1
2 2 2
5" CAR3 ®
4" UNIVERSAL SLEEVE
W/BACKDRAFT
DAMPER
4" DECO
GRILLE
RETURN AIR
IAQ-BVS
®
SPEC & IOM
Return Air
4"
4" Universal
6"
Deco Sleeve w/
Wye
Grille Backdraft
Damper
-- 2 2
1 3 3
1. RETURN AIR – All 4" Deco Grilles
and sleeves are designed for ceiling
installation.
will require special spring-loaded
backdraft dampers.
5" WALL HOOD
2. SUPPLY AIR – All 6" supply grilles
(Algrilles) and corresponding universal
sleeves are designed for ceiling
installation. The 6" Spring-Loaded
FRESH AIR FROM
Backdraft Dampers should be inserted
OUTSIDE
into the Universal Sleeves by the
installer and positioned so that the
damper blades open downward.
3. OUTSIDE/FRESH AIR – A 5" low-
pressure Wall Hood with debris screen
is provided as an intake for outside
air. It should be located at least 18"
above the ground or snow line. While
generally not required, a 5" backdraft
damper can be ordered for installation
in the wall hood collar. Contact the
factory for assistance.
4. CONSTANT AIRFLOW REGULATORS
(CAR3®) are provided in each BVS
fan for automatic balancing of fresh,
return, and supply air. They are located
in the BVS duct-attachment collars.
Intake
5"
4"
Wall
Wye
Hood
-- 1
-- 1
Installation in walls
