aldes MR Mono Manual

aldes MR Mono Manual

Constant airflow regulator mr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Constant Airflow Regulator MR
MR Mono - MR Modulo
Introduction
Range
Principle of operation
Construction and material
Dimensions - weights
Field of application
Aeraulics features
Acoustic features
Installation
Maintenance
Specification text
Application examples
Codes
Complementary offers
Regulation and balacing offer
Advantages

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR Mono and is the answer not in the manual?

Questions and answers

Related Manuals for aldes MR Mono

Summary of Contents for aldes MR Mono

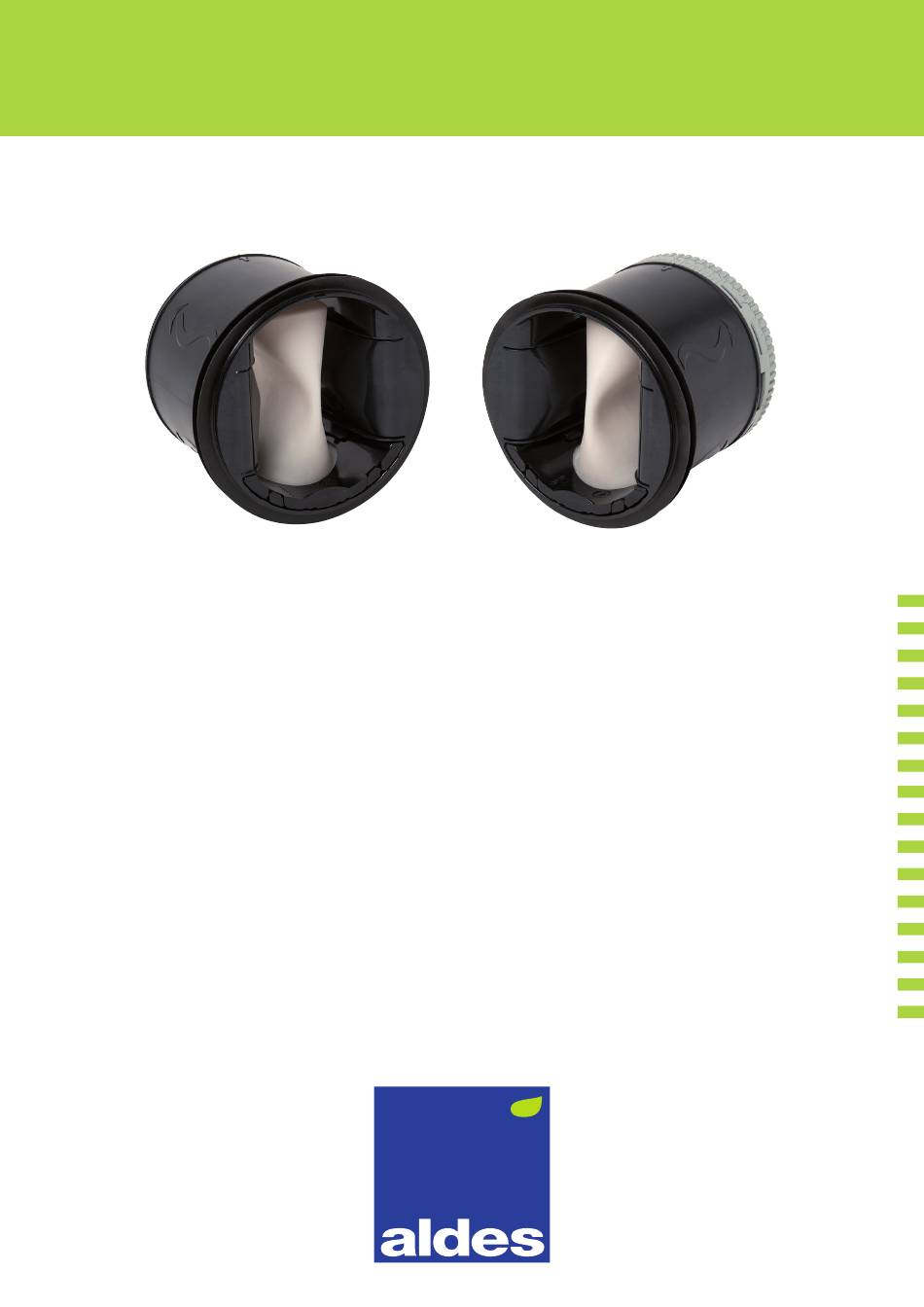

  • Page 1 Constant Airflow Regulator MR MR Mono - MR Modulo Introduction Range Principle of operation Construction and material Dimensions - weights Field of application Aeraulics features Acoustic features Installation Maintenance Specification text Application examples Codes Complementary offers Regulation and balacing offer...

  • Page 2: Dimensions & Weight

    7 diameters (mm): 80, 100, 125, 150, 160, 200 and 250. Ø B 3 Pressure ranges: • between 50 and 250 Pa for the standard MR Mono MR Modulo and the MR Modulo, • between 150 and 650 Pa for the MR High Pressure, •...

  • Page 3: Field Of Application

    Ø 150 / Ø 160 (100-240 m Ø 200 (225-400 m Ø 250 (300-650 m Q (m AERAULIC FEATURES The curves for each diameter of the MR Mono standard, MR Mono High Pressure and MR Modulo are available on request.
  • Page 4 Constant Airflow Regulator MR MR Mono Standard ACOUSTIC FEATURES Sound power levels of noise (Lw) at duct output: The following tables give the sound power levels of noise (Lw) expressed in decibels per octave (dB/oct) as well as the global sound power levels in dB(A) according to the pressure drop.
  • Page 5 Constant Airflow Regulator MR Differiencial Pressure DP (Pa) Ø 125 Airflow 50 Pa 100 Pa 150 Pa 200 Pa 31 33 30 25 15 11 15 31 36 39 40 37 29 25 19 41 39 41 44 43 35 32 26 47 42 43 48 49 41 38 32 51 32 33 30 26 16 12 15 31 38 40 40 37 30 26 20 41 41 43 45 43 36 33 27 47 45 45 49 49 42 39 33 52 33 33 30 26 17 13 15 31 40 41 40 38 32 27 21 42 44 44 45 44 38 34 28 47 48 47 50 49 43 40 35 53 34 33 30 27 18 14 16 32 42 41 40 38 33 28 22 42 47 46 45 44 39 35 29 48 51 49 50 50 44 41 36 53...
  • Page 6 Constant Airflow Regulator MR MR Modulo ACOUSTIC FEATURES Sound power levels of noise (Lw) at duct output: The following tables give the sound power levels of noise (Lw) expressed in decibels per octave (dB/oct) as well as the global sound power levels in dB(A) according to the pressure drop.
  • Page 7 Constant Airflow Regulator MR Differiencial Pressure DP (Pa) Ø 125 Airflow 50 Pa 100 Pa 150 Pa 200 Pa 36 35 32 30 25 16 14 34 43 43 42 39 36 31 23 44 46 45 47 45 41 38 32 50 48 48 51 50 46 44 39 54 36 35 31 30 25 17 15 34 43 43 42 39 36 31 24 44 47 46 47 45 42 38 32 50 50 48 51 50 47 45 40 55 36 34 31 30 25 18 15 34 44 43 42 40 36 31 24 44 48 46 47 46 43 39 33 50 52 49 52 51 48 45 40 55 37 34 31 29 25 18 16 34 44 42 41 40 37 32 25 44 50 47 47 46 43 40 33 51 54 50 52 51 49 46 41 56...

  • Page 8: Installation

    Constant Airflow Regulator MR MR Mono - MR Modulo INSTALLATION • The MR will push-fit into circular ducts in close proximity to a take-off or a terminal. • It is important to observe the MR orientation corresponding to the airflow direction indicated on the MR.

  • Page 9: Maintenance

    • +/- 5 m³/h for airflow ≤ 50 m³/h, • +/- 10% for airflow > 50 m³/h. Installation will be possible in duct and accessories as well independent of orientation. Positioning and sealing will be ensured by a double-lip seal in elastomer. Type MR Modulo, Aldes brand.

  • Page 10: Application Example

    Constant Airflow Regulator MR MR Mono - MR Modulo APPLICATION EXAMPLE Airflow stabilization within an HVAC network portion Exhausted airflow stabilization • In exhaust, a 1Ø-distance is recommended between the CAR and the terminal to insure air velocity harmonization in the duct to avoid aeraulic and acoustic disturbance.
  • Page 11 100-240 11016311 260-425 11016198 100-240 11016312 225-400 11016313 300-650 11016314 MR Mono STANDARD RANGE CODES • Ø 80 to 250 mm • Qnom from 15 to 650 m Ø (mm) Airflow (m Code Ø (mm) Airflow (m Code Ø (mm)
  • Page 12 Constant Airflow Regulator MR MR Mono - MR Modulo COMPLEMENTARY OFFERS MR performances are not altered by clogging, therefore it requires practically no special maintenance. • If used in an atmosphere where there is a lot of particles, sleeves with inspection window are recommended to allow regular inspection.
  • Page 13 Constant Airflow Regulator MR MR Mono - MR Modulo REGULATION AND AIR-BALANCING OFFER FOR HVAC DUCWORKS Passive range Balancing dampers. CRGN Iris Commissioning damper Rectangular balancing dampers Iris damper Automatic range Constant airflow steadiness irrespective of pressure variations. MR Mono...
  • Page 14 Constant Airflow Regulator MR Notes...
  • Page 15 Constant Airflow Regulator MR Notes...
  • Page 16 • a simplification of the installation studies for air distribution ductworks, • reduced operating costs, • substantial time saved in installation linked to absence of commissioning (MR Mono range), • maximum flexibility on site with tool-free airflow setting (MR Modulo range) ■...
