Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com

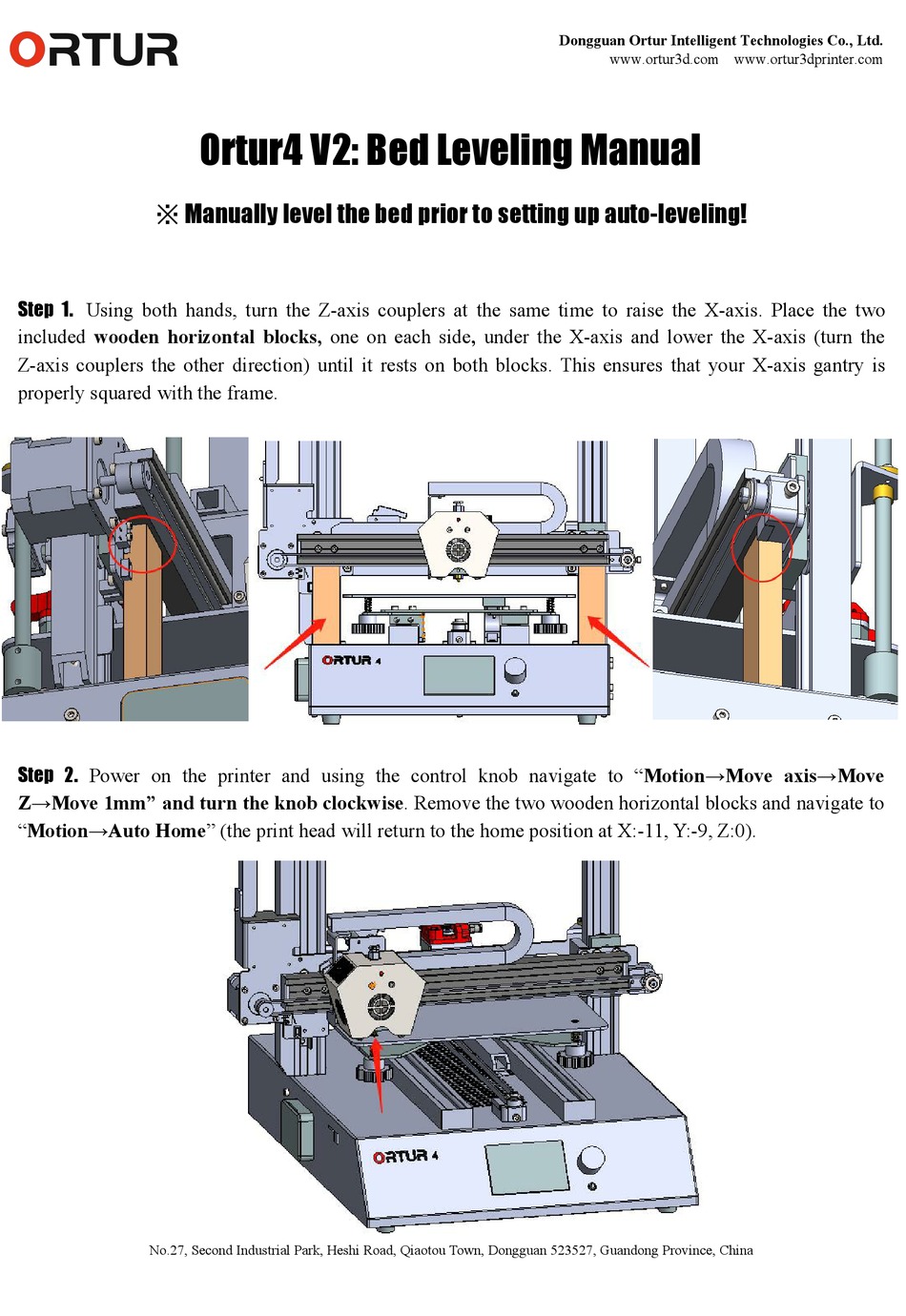

Ortur4 V2: Bed Leveling Manual
※ Manually level the bed prior to setting up auto-leveling!
Step 1. Using both hands, turn the Z-axis couplers at the same time to raise the X-axis. Place the two
included wooden horizontal blocks, one on each side, under the X-axis and lower the X-axis (turn the
Z-axis couplers the other direction) until it rests on both blocks. This ensures that your X-axis gantry is
properly squared with the frame.
Step 2. Power on the printer and using the control knob navigate to "Motion→Move axis→Move
Z→Move 1mm" and turn the knob clockwise. Remove the two wooden horizontal blocks and navigate to
"Motion→Auto Home" (the print head will return to the home position at X:-11, Y:-9, Z:0).
