Summary of Contents for K-Mate BTH180P
- Page 1 BTH80P True Wireless Bluetooth Headset User’s manual...
-
Page 2: Table Of Contents
Contents Brief introduction…………...…………………………..…... 1 Before use……………………………………………………. 1 …………………………………………………...……1 1. Overview ……………………………………………2 2. Charging for headset.. …………………………………2 2. Charging for charging case.. Getting started……..…………………………………………3 1. Wearing headset.............3 ........5 Mono & Twin Modes....... 3. Earbuds pairing/connecting............6 4. Function operation............8 ................ -
Page 3: Brief Introduction

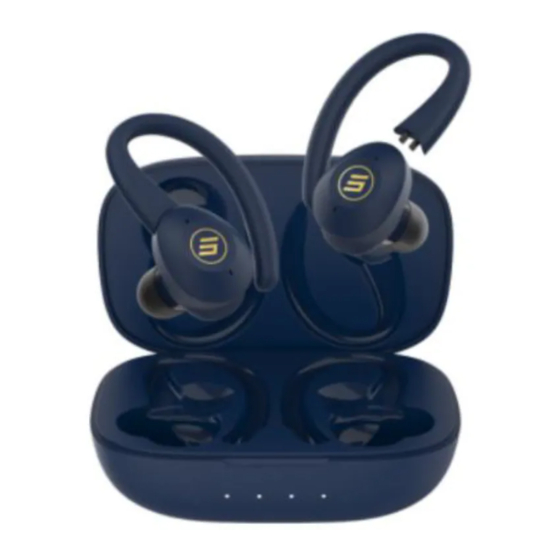

Brief introduction BTH180P is a true wireless Bluetooth headset. The earphones on the left and right sides adopt a separate design, which can be used in different occasions according to personal usage habits. There is no need to connect the earphone cable between the two earphones. - Page 4 MFB touch-button Type-C charging jack LED indicator (Red and Wireless charge induction blue) area Microphone Earhook Top case Charging pins Charging indicator light 2. Charging for earbuds When the headset is low on power, it emits the red light flashing slowly 4 times every 14s.
-
Page 5: Charging For Charging Case
Remarks: Please place the L and R earphones in the correct charging compartment according to the L and R marks on the charging box to charge them. 3. Charging for charging case When any of the following situations occurs, it indicates that the charging case will be low power. - Page 6 Type-C charging Wireless charging Remarks: The indicator light of the charging box is off when the earphone in the idle state（not in charged）. Open the cover of the charging box, the 4 white indicator lights of the charging box will light up in sequence, and the indicator lights will go out after about 5s.
-
Page 7: Getting Started
Getting started 1. Wearing headset with earhook a. Choose the right earphone to match the ear b. Align the earphone with the ear and insert the ear tip into the ear hole C.Rotate the earphone to a comfortable position 2. - Page 8 3.Mono mode Each earbuds can be connected singly to the cellphone. 1. Power on 1)In the charging state, open the charging box top case or take the earphone out of the charging box, and the earphone will automatically turn on. 2)If the earbuds are power off, you should press touch-button for about 3s until blue LED flashes as the same time the earbuds emits “Power on”.
- Page 9 4.Power off 1）Auto power off once put into charging case 2）Press touch-button about 5s and release it till red LED is on,and earbuds prompt “Power off”. Remark: When the earbuds are idle and not connected to the Bluetooth device, they will automatically enter the pairing mode after 10 seconds.
-
Page 10: Function Operation
6.Pair and connect the left and right earphones (when the two earphones cannot be connected automatically) 1. Put the left and right earphones into pairing state respectively (red and blue lights flash alternately). 2. When the headset is in the pairing state, press the touch button in 5 consecutive taps, and see that the red light turns to red and blue lights alternately and slowly flashing after 1 second, which means the headset has entered TWS pairing mode. - Page 11 Playing triple--click Right Balance Balance music touch-button 2.Calling Status of Function Prompt tone earbuds Cancel Once-click Once-click Calling Dang calling touch-button touch-button Incoming Once-click Once-click Answering Dang call ringing touch-button touch-button Incoming Double-click Double-click Reject Dang call ringing touch-button touch-button Double-click Double-click After dang Falling...
-
Page 12: Battery Display
Turn off Connected Press and Audio pass ambient with phone hold sound touch through off bottom 4s Game Connected triple--click Enter gaming mode with phone touch-button mode Exit Connected triple--click exit gaming Game with phone touch-button mode mode There is no prompt sound Short during... -
Page 13: Meaning Of Indicator Light
When the earbuds are connected to an IOS device or some of the Android device, it will display the battery of earbuds on the device. When the earbuds is low on power ,the battery indicator will turn red and show a depleted battery icon. -
Page 14: Factory Reset
represents the current battery power of the charging case. According to the power level from low to high, there are 1, 2, 3 and 4 white LED on.After flashing, it lights for about 5s and then goes out During the charging process, Charging the number of white lights on the charging box represents... -
Page 15: Care And Maintenance
Care and maintenance Read the following recommendations carefully before using BTH180P. Following these you will be able to enjoy this product for many years. Keep it dry and don’t put it in the damp place to avoid the product’s ... -
Page 16: Specification
b) Make sure the headset connects with the mobile phone correctly; c) Make sure the distance between the headset and the cell phone is in the available Bluetooth range. 4. Why can’t I hear the sound clearly on the headset? a) Make sure the mobile phone is in the strong signal area;... - Page 17 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
