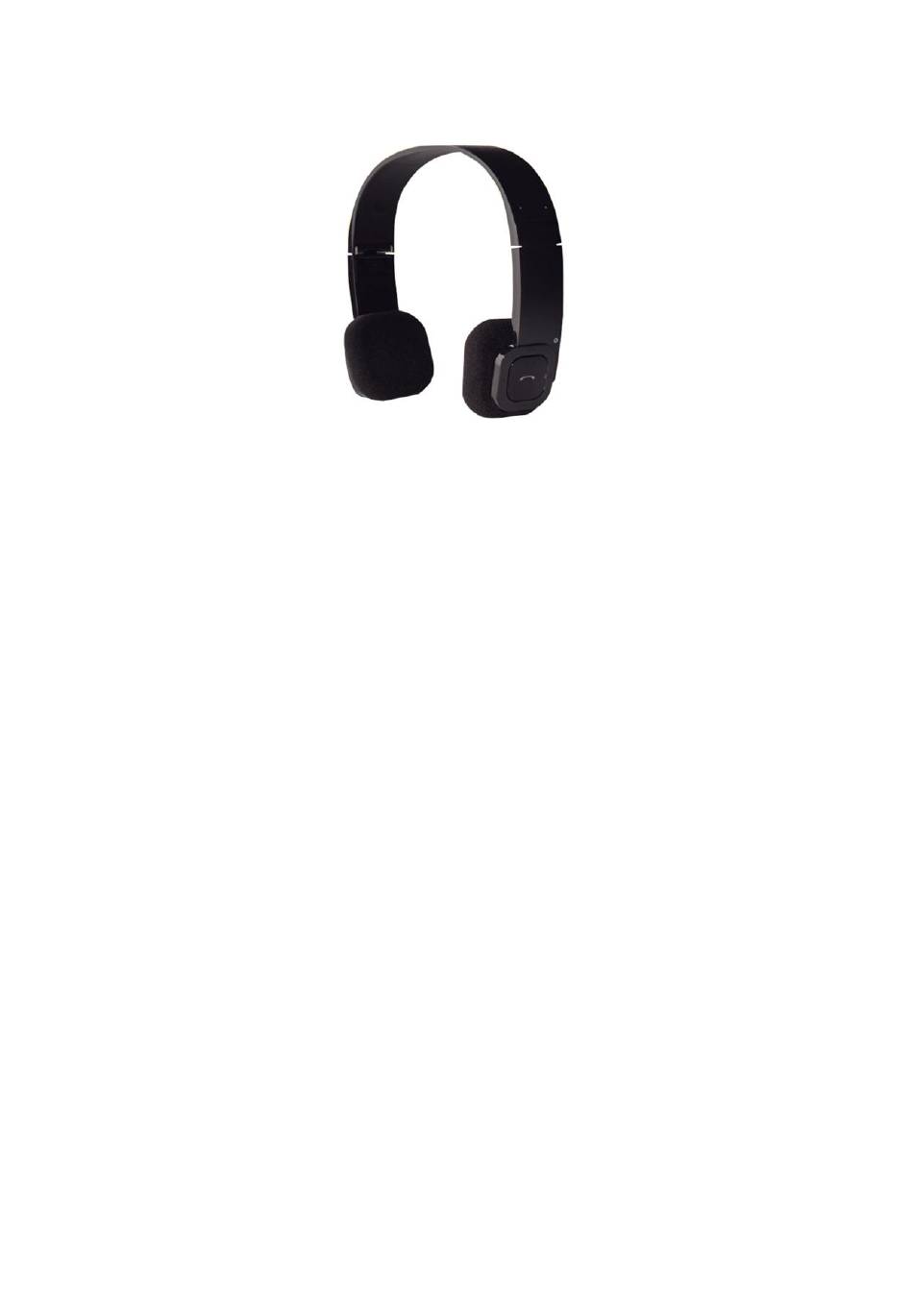

- Page 1 BTH015 Bluetooth stereo headset User’s manual...
-
Page 2: Table Of Contents
Contents Brief introduction………………………………….…………...… 1. Bluetooth wireless communication technology…...………….…..1 2. About BTH015………………………………..…….………….…..1 Before use…………………………………………………...……..2 1. Overview……………………………..………………..…………...2 2. Charging the headset………………………….………………..…3 Getting started.……………………………….………….………..3 1. Turning on/off the headset……………….……….……………...…3 2. Pairing the headset with Bluetooth devices…………………..…..4 How to enter pairing mode……………………..………………..4 Pairing the headset with a Bluetooth cell phone…....…..4 Pairing the headset with a Bluetooth transmitter..………………..5... -
Page 3: Brief Introduction

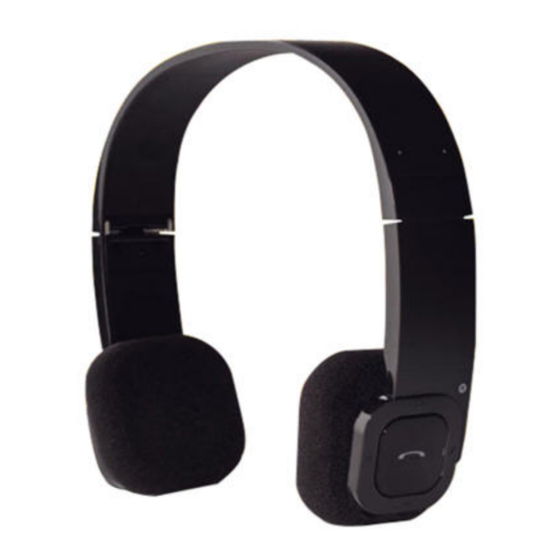

I can reach up to 100 meters. 2. About BTH015 BTH015 is a Bluetooth stereo headset. It’s foldable and retractable design is very easy to take with you. It supports the following Bluetooth profiles: HSP —— Headset Profile HFP ——... -
Page 4: Before Use
3) Easy to switch between the call and music, you will not miss the incoming call during listening to music. 4) Every time the headset is turned on, it will connect to last connected device automatically. Note: Even though the paired device and the headset support the same Bluetooth profiles, functions may vary due to specification differences of the paired devices. -
Page 5: Charging The Headset
2. Charging the headset The headset comes with a built-in rechargeable battery, prior to using it, it is recommended to charge the battery fully for the first time. When the headset is low power, red LED flashes twice and the headset emits three “Dong”... -
Page 6: Pairing The Headset With A Bluetooth Cell Phone
3) Activate your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range, and select “BTH015” from the list of devices shown; 4) According to the indication, enter password or PIN No: “0000”;... -
Page 7: Pairing The Headset With A Bluetooth Transmitter
headset with the new device according to steps 1～6 mentioned above. Pairing the headset with a Bluetooth transmitter You can connect the headset to a Bluetooth transmitter to enjoy music wirelessly. Hereby take BTT010 (Bluetooth transmitter for iPod, not included) for example. The pairing steps are as follows: 1) Place the headset and the Bluetooth transmitter where they are easily viewable by no more than 1 meter apart;... -
Page 8: Re-Connecting With A Bluetooth Device
3) Pair and connect the headset with a Bluetooth cell phone (refer to “pairing the headset with a Bluetooth cell phone”). 4) Turn on the Bluetooth transmitter, it will connect to the headset automatically. Remarks: After successful multi-pairing, the paired devices will remember each other. - Page 9 Status of Function Operation BTH015 Cancel calling Calling Short press MFB button Answer a call Incoming ring Short press MFB button Press and hold MFB button for Reject a call Incoming ring 2 seconds and release it until hearing indication tone...
- Page 10 5 seconds, and release them until red LED flashes once 2) Three-way call Status of Function Operation BTH015 End current call There is a new Short press MFB and answer a new incoming call button once incoming call...
-
Page 11: Music Playback
You have to select “transmit the sound via Bluetooth” in the settings menu and then choose “BTH015” as speaker device. The music will be transmitted to the headset. Please refer to your cell phone’s user’s manual for further information. -
Page 12: Led Indicator
Blue LED flashes once every 5 During a call seconds Red LED flashes twice every 20 Low power seconds 8. Indication tone Status of BTH015 Indication tone Two short “DU” tones Enter pairing mode During a call (Microphone Emits 2 tones every 5 seconds mute) -
Page 13: Care And Maintenance
Emits 3 “Dong” tones every 20 Low power seconds Care and maintenance Read the following recommendations before using the headset. Following these you will be able to enjoy the product for many years. Do not expose the headset to liquid, moisture or humidity to avoid the product’s internal circuit being affected. -
Page 14: Specifications
4 What to do when my cell phone can not search and find the headset? The cell phone will not find the headset if the headset and cell phone are not under the pairing mode. Make sure the headset is under the pairing mode and in the effective working range, and then the headset can be paired and connected. - Page 15 Talk: Up to 11 hours Standby time 200 hours Charing input DC 5A 130mA Charging time About 3 hours Dimensions 158×156×55mm Weight 103 g Notes: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
