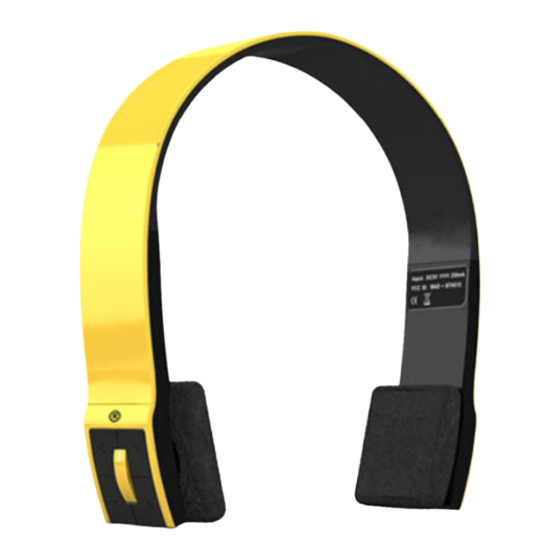

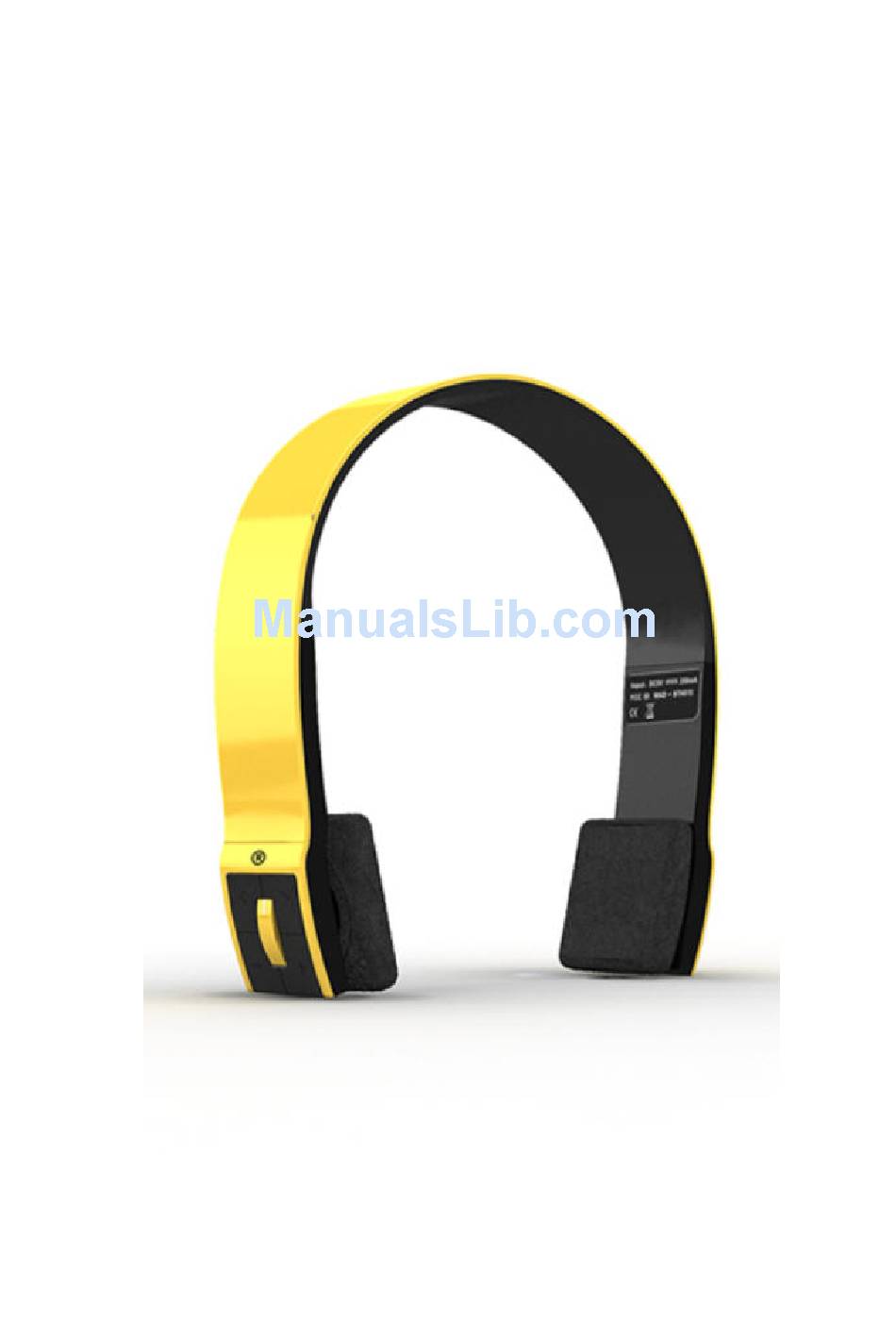

- Page 1 BTH002NI Bluetooth stereo headset User’ manual...
-
Page 2: Table Of Contents
Content Brief introduction…………………………………………………..…1 1. Bluetooth wireless communication technology……………….……...….1 2. About BTH002NI………………………………………..…………..1 Before using…………………………………...…………………………2 1. Overview……………………………………………………………...….2 2. Charging the headset………………………………………....…3 How to use……………………………………..…………………….…..3 1. Turning on/off the headset……………………………………..……..3 2. Pairing the headset with Bluetooth devices……………………….……..4 How to enter pairing mode……………………………………………..4 Pairing the headset with Bluetooth mobile phone………………….…….4 Pairing the headset with Bluetooth transmitter……………………..….…5... -
Page 3: Brief Introduction
HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile You can enjoy music wirelessly by using the BTH002NI. Steps as following: 1) Pairing with the Bluetooth mobile phone which supports HFP. Answer, end and reject call... -
Page 4: Before Using
3) Easy to switch between conversation and music, you will not miss the incoming call during listening to music. 4) Automatic connecting with the last paired device when turn on the headset. Note: Even though the paired device and headset support the same Bluetooth profiles, the functions may be different due to the specification difference of the paired devices. -
Page 5: Charging The Headset
2. Charging the headset The headset comes with a built-in rechargeable battery, prior to using it, it is recommended to charge the battery fully for the first time. When the headset is low power, the headset emits“Dongdong” tones and the red LED flashes twice every 20 seconds. -
Page 6: Pairing The Headset With Bluetooth Devices
“Yes” (this will vary among cell phone models); 5) After successful paired, choose and connect “BTH002NI” from the list of devices shown on cell phone; 6) After successful connecting, blue LED of headset will flashes twice... -
Page 7: Pairing The Headset With Bluetooth Transmitter
5 seconds. Notes: 1) The pairing password of BTH002NI is “0000”, so, the headset can only pair with the Bluetooth transmitter which pairing password is “0000”. 2) If the pairing is still not successful after trying several times, please refer to your Bluetooth transmitter manual carefully. -
Page 8: Wearing The Headset
2) Manual connecting When the headset is in standby mode and does’t connect to a device, short press MFB button once, it will connect to last connected device. Notes: Before connecting to a Bluetooth device, please turn on the Bluetooth device’s Bluetooth function. - Page 9 End call During a call Short press MFB once Volume up During a call Short press “+” button Volume down During a call Short press “－” button Call transfer to During a call Long press MFB about 2 seconds mobilephone Call transfer to During a call Long press MFB about 2 seconds...
-
Page 10: Playing Music
Notes: Not all the mobile phones support all the functions listed above. Please refer to the instruction of your mobile phone. Some functions and indication tones may vary with different mobile phones. When the volume is adjusted to max or min, you will hear one indication tone. -
Page 11: Restoring Factory Defaults And Resetting
“transmit the sound through Bluetooth” in the “setting” of music play interface, and then choose “BTH002NI” in the device list, the music will be transmitted to the headset. Please refer to the instruction of your mobile phone for further information. -
Page 12: Indication Tone
8. Indication tone Indication tone Status of headset One “Weng”tone every 3 seconds Conversation mode and microphone mute “Dongdong” tones every 20 seconds Low power 9. Factory reset In the status of turn off, long press MFB and volume up “+” button about 11 seconds and release it until all LED indicator light off. -
Page 13: Faqs
FAQs 1. Why does red light blink twice every 20 seconds? Battery is low, need to be recharged. 2. Why is not the red light of headset bright when charging? a) Please make sure the charging device connects with headset well. b) You didn’t use the headset for a long time, the battery may dry up. -
Page 14: Specifications
Specifications Bluetooth version Bluetooth V3.0 Bluetooth profiles Headset, Hands free, A2DP, AVRCP Effective range 10 meters Working time About 9 hours Standby time About 400 hours Charging input DC 5V/500mA Charging time About 1.5 hours Dimensions 162×153.5×32 mm Weight About 99 g CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE... - Page 15 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause...
- Page 16 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
