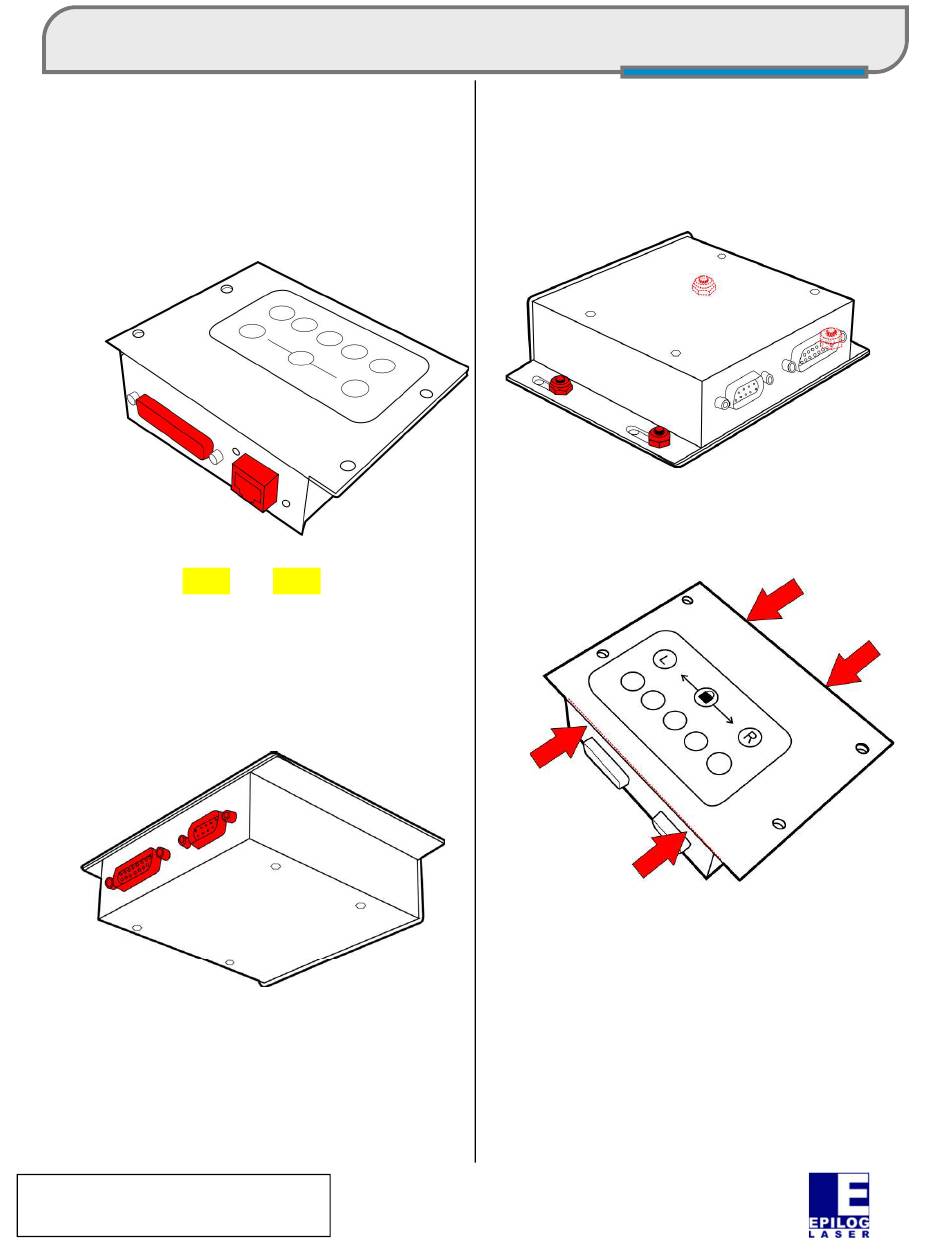

Laser Safety Module
Fiber Laser
If your engraver has a Fiber laser installed,
you will need to disconnect the DB15 connector.
This connecter has two screws which secure it to
the housing for the Laser Safety Module. Loosen
these screws and gently pull to disconnect the
cable.
5 Laser Connection Ports
Disconnect DB25 and DB15
There are two more connecters on the left
side of the Laser Safety Module which need to be
disconnected. They each have two screws
securing them to the housing of the Laser Safety
Module. Loosen the screws and gently pull to
disconnect the harness.
6 DB15 and DB9 Connections
Remove Part form Machine
You can now remove the Laser Safety Module
from the engraver.
Phone: 303-215-9171
Email: Tech@Epiloglaser.com
Fusion M2 Laser Systems
Install New Part
Prep Case for Install
Orient the new Laser Safety Module so that
the led panel is lying flat on the table. Locate and
loosen the four case nuts.
Once the case nuts have been loosened,
squeeze the case together from either side
(where the ports are located) and continue to
apply pressure while you retighten the nuts.
Attach DB9 and DB15
Reattach the DB9 and DB15 computer cables
to the module, match the orientation of the D
shaped connecters and be sure to secure
connecter screws tightly with a precision flat
head screw driver.
Attach Laser Connection
CO2
If your engraver is equipped with a C02 laser
source, Locate the data cable and connect the 8-
