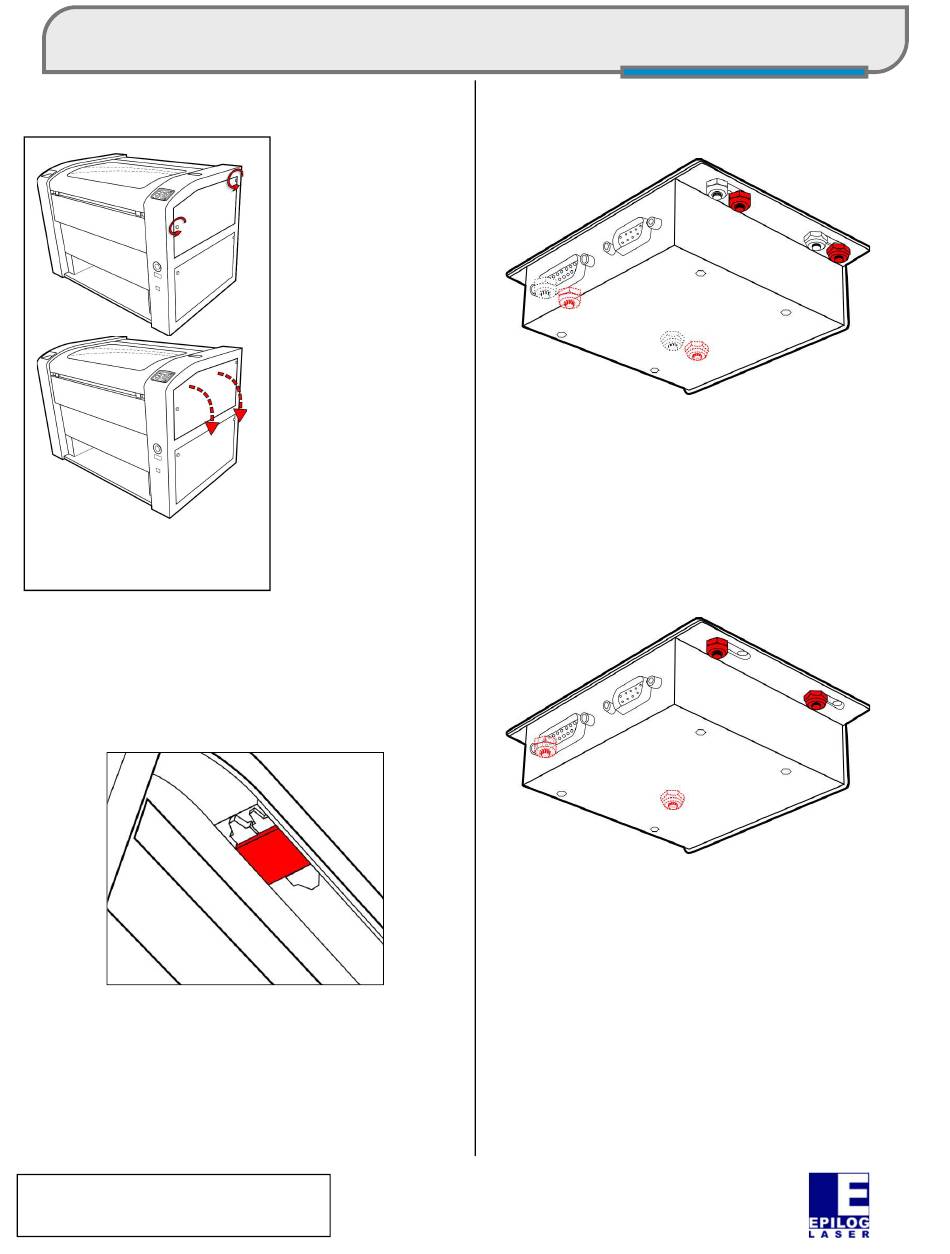

Epilog Fusion M2 Manual page 2

Laser Safety Module
Remove Old Part:
Removing the Right Side
Panel
locate the laser safety module inside of the
engraver. The top of the module can be located
on the top of the right hand side of the engraver.
You should see the module case and connections
from below, looking up.
2 Laser Safety Module from Below
Remove Mounting Nuts
Locate the Laser Safety Module on the right
side of the engraver.
From beneath locate the four mounting nuts
which fasten the module to the chassis of the
Phone: 303-215-9171
Email: Tech@Epiloglaser.com
Remove Right
Panel
Locate the Cam
Locks on the upper
right hand panel.
Using a 5/32" Allen
wrench, turn the
lock counter
clockwise to release
the door panel.
Allow top of the
panel to swing
forward where it can
be lifted out of the
machine and
removed.
Locate the
Module
Next we will
• 2 •
Fusion M2 Laser Systems
engraver. The mounting
distinguished from the Case nuts by their
positioning, one behind each case nut.
3 Mounting Nuts
Loosen Case Nuts
If the module does not come away from the
chassis of the engraver after removing the
mounting nuts, the case nuts may also need to
be loosened to allow the module to slide freely
from the mounting studs.
4 Case Nuts
Disconnect Laser Connections
Depending on the configuration of your
engraver you may have a connection for a Fiber
Laser, a Co2 Laser, or both.
Co2 Laser
If your engraver has a C02 Laser installed,
locate and disconnect the 8-Pin Modular "RJ45"
Connecter and disconnect it. This port looks
similar to an Ethernet or Telephone jack.
nuts can be
