MiCOM
P921/P922/P923
Voltage and Frequency Relays
Technical guide
P92x/EN T/E11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiCOM P921 and is the answer not in the manual?

Questions and answers

Sergey
March 20, 2025

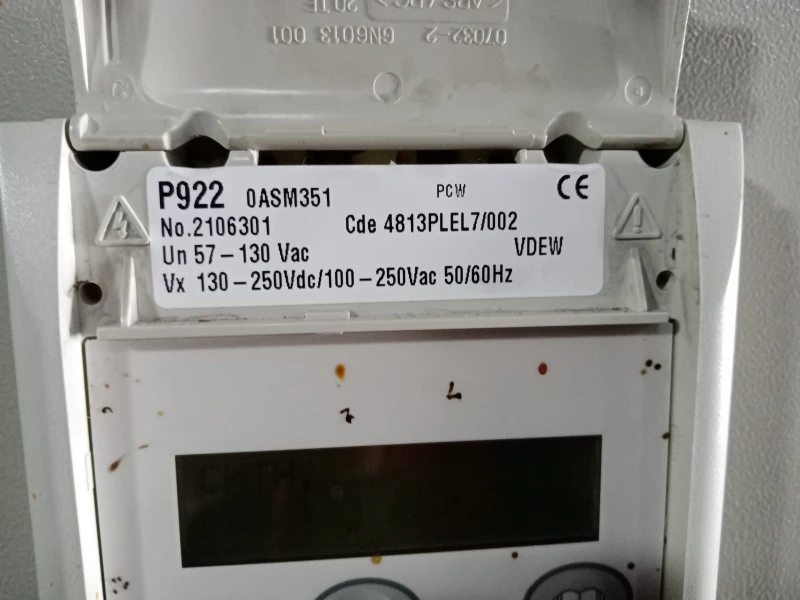

Lost password for micom 922 0ASM351 2106301

User image 67dbc88d40ed6
0
2 comments:
Mr. Anderson
March 20, 2025

If the password for the Areva MiCOM P921 is lost or forgotten, modifying the stored parameters of the relay is prohibited. To reset the password, the user must contact the manufacturer or an authorized agent and provide the serial number of the relay. The manufacturer will then provide a stand-by password specific to the relay.

This answer is automatically generated

0
Sergey
March 20, 2025

@Mr. Anderson не подскажете куда обращаться.

User image 67dbca0c085e5
0
