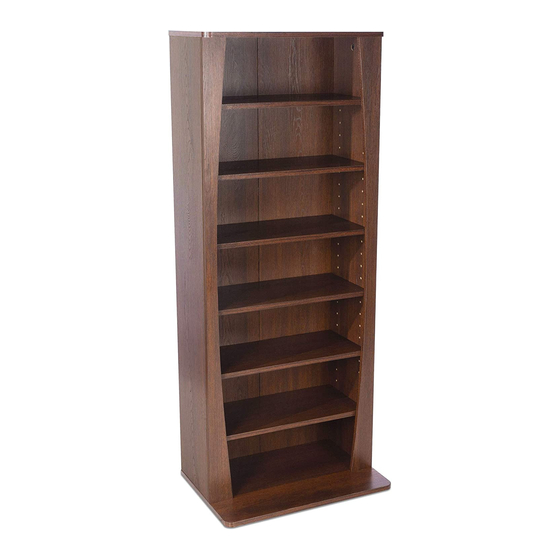

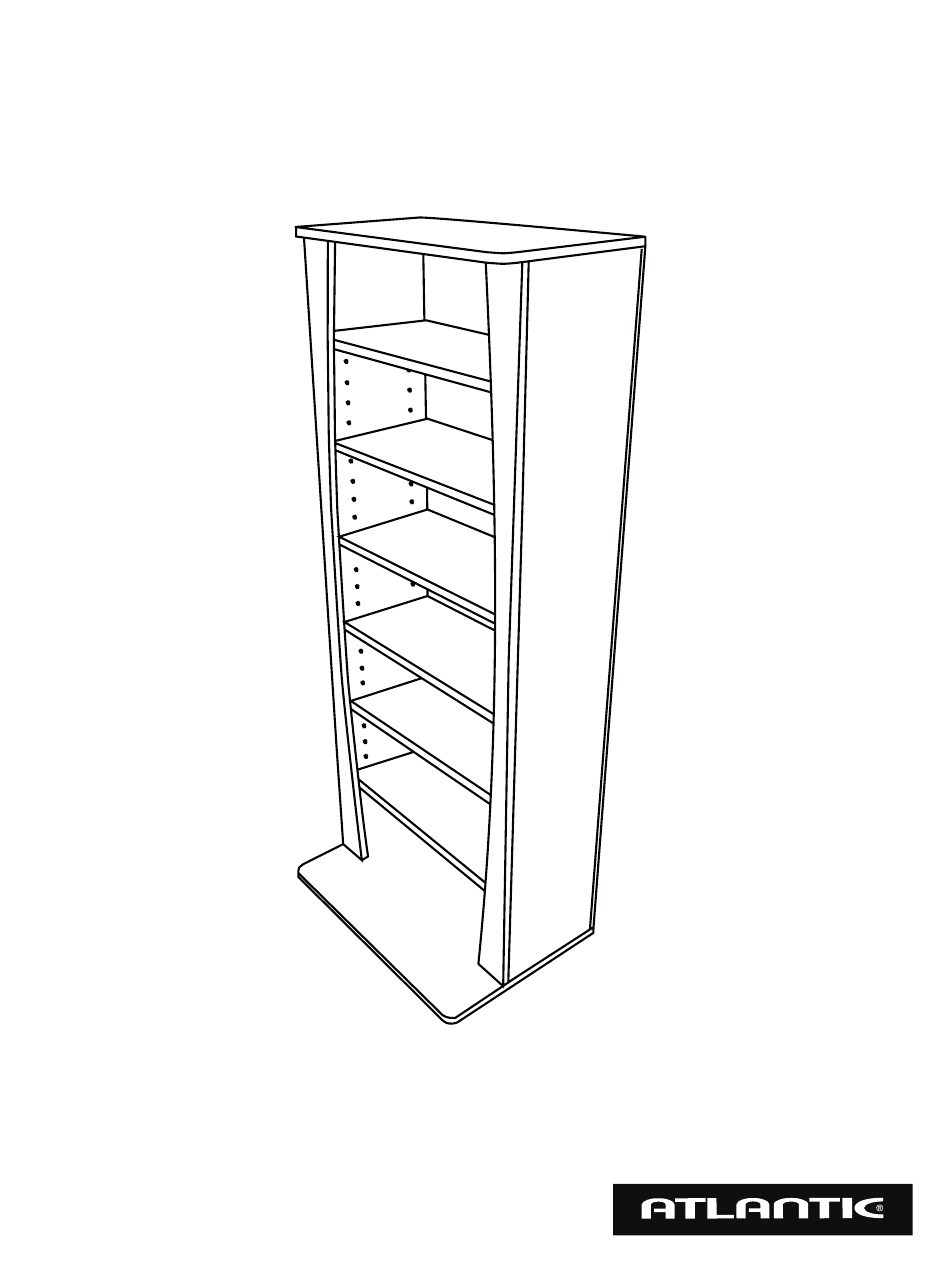

- Page 1 Canoe XL Multimedia Cabinet Item#: 22536267 Customer Service: 800-747-2660 Ver. 01 7/15/20...
- Page 2 Assembly Tips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on the open flat carton or a rug to protect the product and your floor. Some heavy products need a second person to assist in the assembly.
- Page 3 Parts List/ Lista de Piezas Item Item Components Components Artículo Componentes Artículo Componentes Cant. Cant. Tools Needed (not included) Herramanientas requeridas (no incluidas) Drill and Drill Bit Phillips Screwdriver Pencil Taladro eléctrico Destornillador Phillips Lápiz y broca 3mm ( 1/8”) Ø...
- Page 4 [1] x8 If needed Insert four dowels [1] into left panel (A) using a hammer if needed. Repeat for right panel (B). Align holes in panel (C) with dowels [1] in panel (A). Carefully press panel (C) flush with panel (A) so the flat edge of panel (C) is flush with panel (A).
- Page 5 [3] x14 Turn the cabinet so the back faces forward. Place and hold the back panel (F) flush with the side panels as shown. Use a hammer to pound in 14 nails [3] as shown (four on the top, four on the bottom and three on each side).
- Page 6 Drywall Panel de yeso [B] x2 [C] x2 [D] x2 WOOD STUD MOUNTING MONTAJE de MADERA Use Phillips screwdriver to attach mounting bracket [B] with wood screw [C] into the predrilled hole on the side of the cabinet. Repeat for other side of cabinet. Using a stud finder, locate a wood stud.
- Page 7 Product Warranty Thank you for your Atlantic Inc. purchase. This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A. and Canada, and excludes claims from condtions, malfunctions or damage not resulting from defects in material or workmanship. The warranty duration is one year.
