Gecko SSPA-1-AS SPA PACK Quick Reference Card

SSPA-1-AS SPA PACK
Dual-Pump (or Single-Pump & Blower) System
•

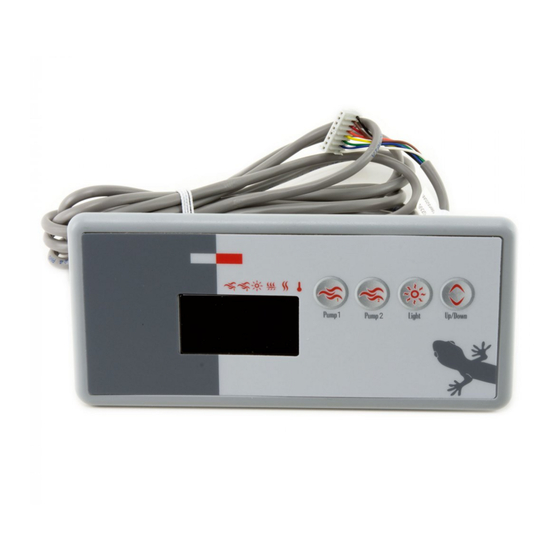

This Quick Reference Card is a summary of your spa's main functions
and provides a quick overview of operations accessible from your spa side keypad.
To start the pump:
Press the Pump 1 key to turn the pump on
at low speed. A second press will turn the
pump to high speed. A third press will turn
the pump off. A built-in timer will shut the
pump off after 20 minutes unless it has
been manually deactivated.
The "Pump 1" marker will be
displayed when the pump is running.
To start pump 2:
Press the Pump 2 key to turn pump 2 on.
A second press will turn the pump off. A
built-in timer will shut the pump off after
20 minutes unless it has been manually
deactivated.
The "Pump 2" marker will be
displayed when the pump is running.
Note: For dual-pump configuration only.
To start the blower:
Press the Pump 2 key to turn the blower
on. A second press will turn the blower off.
A built-in timer will shut the blower off after
20 minutes unless it has been manually
deactivated.
The "Pump 2" marker will be displayed
when the blower is running.
Note: For single-pump & blower configuration only.
To turn the light on:
Press the Light key to turn the light on. A
second press will turn the light off. A built-in
timer will shut the light off after 2 hours
unless it has been manually deactivated.
The "Light" marker will be displayed
when the light is on.
Quick Reference Card
•
To change the water temperature:
Press the Up/Down arrow key to increase
or decrease the desired water temperature.
The selected temperature setting ("set point"
value) will be displayed for 5 seconds as a
confirmation.
The "Set Point" marker on the display
will indicate that the temperature
shown is the desired, and not the
current temperature of the water!
The temperature can be adjusted by 1˚
increments from 15 to 40˚C (59 to 104˚F).
Temperature display unit:
The water temperature can be displayed
in ˚C or ˚F. Simply press and hold the
Light key for 10 seconds to toggle between
˚C or ˚F.
Water heater automatic start:
When the water temperature is 0.5˚C
(1˚F) lower than the set point, the heater
will be turned on until the water tempera-
ture reaches the set point plus 0.5˚C (1˚F).
The "Heater" marker will be displayed
when the heater is on. It will flash
when there is a call for heat but the
heater has not started yet.
Note: If your system is configured in Low Current
Mode, the heater will not start if the pump is
running at high speed.
