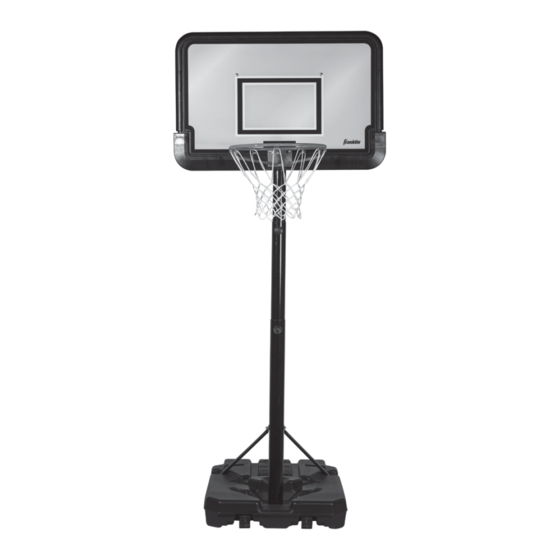

- Page 1 HARD COURT ® BASKETBALL SET 60116X ITEM NUMBER: www.franklinsports.com/60116X Made In China Franklin Sports Inc. Stoughton, MA 02072...
- Page 2 SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material.
- Page 3 PARTS LIST 3pc Axel Set Lower Left & Right Brace Top Left & Right Brace Top Pole Middle Pole Lower Pole Rep. Part: 60116X-R4 Rep. Part: 60116X-R2 Rep. Part: 60116X-R3 Backboard Pre-Installed Rep. Part: 60116X-R6 Wheels Base Plastic Insert Tube Rep.
- Page 4 ASSEMBLY INSTRUCTIONS GENERAL NOTE 1. Remove all components from the shipping 2. Ensure you have all components shown in the carton. Remove all protective wrap and layout parts identifier. all components on the ground. STEP 1 PARTS NOTE Position the Wheels (#10) and Lower Pole (#6) in the locations on the base, slide the...
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3 PARTS NOTE The Plastic Insert Tube (#12) sits inside the Middle Pole (#5) and Lower Pole (#6). Insert the Middle Pole (#5) into the Lower Pre-Installed Pole (#6). Secure using Screw (D). (The screw should be flush with the pole.) STEP 4 PARTS...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 5 PARTS NOTE Attach Rim (#7) to the Backboard (#8) using Bolt, Nut & Washer Sets (E) as shown. Secure the Top Pole (#4) to the Top Left & Right Brace (#3) as shown. Attach Top Left & Right Brace (#3) to the back of the Backboard (#8) as...
- Page 7 ASSEMBLY INSTRUCTIONS STEP 7 PARTS NOTE (2) Adults are required to complete assembly. To prevent serious injuries, the pole should be held down by one adult at all times while the base is being filled. Lean system forward, resting rim on the ground.
- Page 8 Do not use system during windy or severe weather. System may tip over. Place system in an area protected from the wind or in an area away from property that may be damaged if the system falls. FRANKLIN SPORTS 1-800-225-8649 Failure to observe this warning may cause property damage and/or serious injury.
