Summary of Contents for Russound V-KP-1
- Page 1 Product Manual V-KP-1 Amplified Keypad with Amazon Alexa Built-in...
- Page 2 (accepts up to 14AWG wire) Flat Screwdriver for the Wallplate Mounting 1 Removable, Screw-Down 4-pin Speaker Con- nector (accepts up to 14AWG wire) #2 Philips Screwdriver for attaching the V-KP-1 to the mounting box 1 Color Change Faceplate (Black) Wire Strippers...

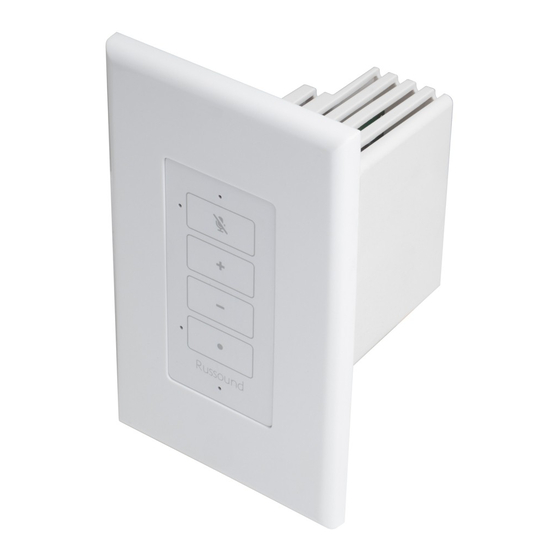

- Page 3 V-KP-1 OVERVIEW V-KP-1 OVERVIEW Mic Mute Volume Up Power Volume Down Speaker Action Connections Impedance Switch Status LED...
- Page 4 V-KP-1 CONNECTION AND SETUP V-KP-1 CONNECTION AND SETUP Making the Connections The V-KP-1 is very easy to install and only re- quires two connections: power and loudspeakers. Note: All wiring connections must be made with the system powered off and the V-PS-2 power...
- Page 5 V-PS-2 Power Supply to the new V-KP-1. The V-KP-1 would be mounted in the same location as the previous volume control and the existing wires to the room’s loudspeakers would be switched from the previous volume control to the new V-KP-1.
- Page 6 Loudspeakers will always connect directly to the Once your speaker connections and power V-KP-1 and typically those wires are run locally connections have been made to the V-KP-1, you within the room from the loudspeakers to the are ready to make the same connections at the wall-mounting location.
- Page 7 There is a slider switch at the rear of the V-KP-1 that can be set to either It is now ready for connection to your Wi-Fi 4 or 8 ohms. The default is 8 ohms. If using the network.
-
Page 8: Other Settings
Amazon account. Other Settings Using your V-KP-1 without an Amazon account Once your V-KP-1 has been linked to your Ama- For the best possible experience, and to enable zon account, you can access additional settings voice control, we strongly recommend asso-... - Page 9 4 ohms. All speaker connec- tions should be done in parallel, with both left speakers’ positive (+) terminals being connected to the V-KP-1 left + terminal and with both right speakers’ negative (-) terminals being connected to the V-KP-1’s right - terminal.
- Page 10 • Tap the Spotify Connect Device icon at the bottom of the screen. Volume Down - • Tap the V-KP-1 device you want to play to. Tap here to decrease the volume Action - Tap here for the Amazon...
- Page 11 Your privacy is very important to Russound. Power Output 2 x 15W, 4 or 8 Ohm Selectable The microphone array of the V-KP-1 can be turned Frequency Response 20-20kJz, +/- 1dB off at any time by pressing the Mic Mute button on the front of the V-KP-1.
- Page 12 V-KP-1 OPERATION Using Spotify Connect The V-KP-1 supports Spotify Connect, allowing you to play Spotify on your V-KP-1 using the Spotify is an award-winning digital music service Spotify App on your phone or tablet. that gives you on-demand access to over 20 million tracks.
- Page 13 Wi-Fi network connection information. pairing and management of paired devices can also Note: If you are no longer using the V-KP-1, you can be accomplished through the Alexa app. delete the V-KP-1 from your device list in your Ama- zon account using the Alexa app.
- Page 14 Email: tech@russound.com www.russound.com ©2021 Russound/FMP, Inc. All rights reserved. Russound and the Russound logo are registered trademarks of Russound/FMP, Inc. All other trademarks are the property of their respective owners. Specifications are subject to change without notice. 4.22.2021 Rev. 2...
