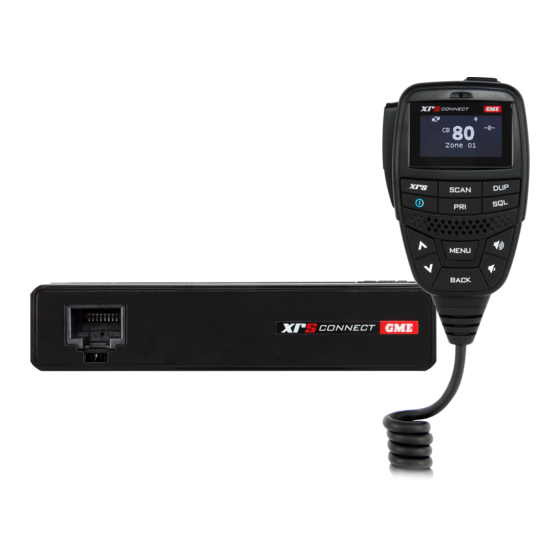

XRS-330C

Instruction Manual

Super Compact Hideaway
80 Channel UHF CB Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XRS-330C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GME XRS-330C

Summary of Contents for GME XRS-330C

  • Page 1: Instruction Manual

    XRS-330C Instruction Manual Super Compact Hideaway 80 Channel UHF CB Radio...

  • Page 2: Table Of Contents

    MENU TABLE ........10 DEFECTS ..........19 Repeater and duplex mode ......4 Receive-only channels (zones) ....10 Priority channel ..........4 ACCESSORIES SUPPLIED • XRS-330C 5 watt UHF CB Radio • Mounting Cradle (MK031) • XRS Connect Speaker Microphone (MC664B) • Microphone Extension Lead (LE040) •...

  • Page 3: Introduction

    In the event additional telemetry/telecommand channels are approved by the ACMA, these channels shall be added to those Your GME XRS-330C 80 channel radio is Australian designed and currently listed where voice transmission is inhibited. manufactured and is the most advanced UHF Citizen Band radio available.

  • Page 4: User Controls And Interface

    Programmable XRS CONNECT APP (XRS) function Scan The GME XRS Connect app is the easy way to customise, update Duplex Power and maintain your XRS Connect radio. To download the free XRS Connect app for iOS or Android go to the App Store or Google Play...

  • Page 5: Signal Meter

    Release the PTT when you have finished talking, the icon will disappear. Your XRS-330C radio is able to automatically compensate for these variations by utilising a Dynamic Volume Control. When activated IMPORTANT: Always listen to ensure the channel is free before through the menu, this feature automatically compensates for transmitting.

  • Page 6: Squelch Tail

    Network Scan allows a group of radio users to maintain communications even when the band is congested by monitoring Your XRS-330C radio allows you to enable or disable Duplex mode a small group of user selectable channels. If the operating channel on individual repeater channels.

  • Page 7: Auto Skip

    channel before you press SCAN. e.g. to make channel 24 your • If is displayed, the selected channel is already in the scan working channel, simply select channel 24 before pressing SCAN. memory. To remove it, press and hold SCAN. A low beep will be heard and will disappear.

  • Page 8: Selecting Priority Scan

    Selecting Priority Scan If a signal from outside your Net-Scan group transmits on the selected channel without using your chosen CTCSS/DCS code, the To select Priority Scan, refer to the MENU / SCAN SETTINGS group will automatically switch to a new clear channel at the next options.

  • Page 9: Ctcss Tone Set Compatibility

    Instruction manual available through the XRS Connect App. When this option is because the tones used in older GME models may be listed in a enabled, Busy Lockout will not prevent you from transmitting over different order to those in your radio.

  • Page 10: Selcall Naming

    SelCall naming Setting up the Quiet mode When storing SelCall numbers, you can add names to each one To setup the Quiet mode you must first store the individual to make it easier to identify whose number you are recalling. channels that you want to stay quiet into the Quiet memory.

  • Page 11: Group Calling

    Group Calling Receiving Group Calls The SelCall system includes a Group Call function that allows you Receiving a Group Call is identical to receiving a normal SelCall to call up to 1000 radios simultaneously. This can be useful in an except that the alarm sound is a LOW tone beep instead of the emergency situation where you may need to transmit a message normal High tone beep.

  • Page 12: Menu Table

    Programming is done either through the radio menu or through can be up to 16 characters long. the GME XRS Connect App. The XRS Connect App also offers To save the name HOLD the a range of pre-programmed frequencies in various categories MENU key [HLD:SAVE].

  • Page 13: Add Channels To A New Zone

    Add channels to a new zone Edit existing channels in a zone Press MENU. Press MENU. Select ZONES and press MENU. Select ZONES and press MENU. Select the desired Zone from Select the desired Zone from the Zone list and HOLD MENU the Zone list and HOLD MENU [HLD:EDIT] to edit the zone.

  • Page 14: To Select Programmable Button Options

    Button Option Description button Display Dim Dims the display and keypad backlight CB Scan Memory Cycles through the three Scan memories XRS button press Quiet Memory Stores channels in the SelCall Quiet memory XRS button hold Quiet Mode Toggles SelCall Quiet mode on or off Scrambler Enables or disables the scrambler option Squelch Level...

  • Page 15: Radio Setting Options Table

    Radio setting options table Menu Item Description Setting BEEP VOLUME Adjusts the volume of the key press beeps. 0 to 10 [4] BRIGHTNESS Adjusts the OLED and keypad brightness. 0 to 10 [5] BUSY LOCK Disables the transmitter when the radio is busy to prevent you from transmitting over the top of other users ON/OFF [OFF] CB SUBTONE Switches the CTCSS or DCS tone Off or ON and sets the tone frequency.

  • Page 16: Installation

    Resend the LAST SelCall number Use the keys to change the letter or number at the cursor Use the keys to select position. ‘Last’, then HOLD MENU Press MENU [SEL:NEXT] to step [HLD:CALL] to resend the last forward to the NEXT character SelCall number.

  • Page 17: Fitting The Radio

    (red) lead should be connected via the 2 amp fuse to the performance. battery’s positive terminal. GME have a wide range of suitable 477 MHz UHF CB antennas to suit most installations and applications. We recommend contacting your local GME retailer for advice.

  • Page 18: Noise Suppression

    Noise suppression ignition or alternator wiring. If the noise continues, it may be The inherent design of FM transceivers results in a high level of necessary to fit a suppression kit in which case we recommend resistance to ignition and electrical interference. However in some you consult an auto electrician for advice specific to your installations it may be necessary to take additional steps to help installation.

  • Page 19: Dcs Codes

    DCS CODES CODE CODE CODE CODE CODE CODE UHF CB OPERATING FREQUENCIES Frequency Frequency Frequency Frequency (MHz) (MHz) (MHz) (MHz) 476.425 476.925 476.4375 476.9375 Emergency use only 476.450 476.950 476.4625 476.9625 Telemetry / SelCall use 476.475 476.975 476.4875 476.9875 only. Voice transmission is inhibited as required by 476.500 477.000...

  • Page 20: Specifications

    SPECIFICATIONS Electrical Mechanical specifications and connections GENERAL Dimensions: 22 (H) x 99.5 (L) x 86 (D) mm Compliant Specification: Meets AS/NZS 4365 for radio Weight: 137 grams communications equipment in the UHF citizen and personal radio 12 volt Power Supply: Two core cable with bulkhead service.

  • Page 21: Standard Communications Contract Warranty Against Defects

    The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by GME is under license. Other trademarks and trade names are those of Head Office: PO Box 96, Winston Hills, NSW 2153, Australia their respective owners.
