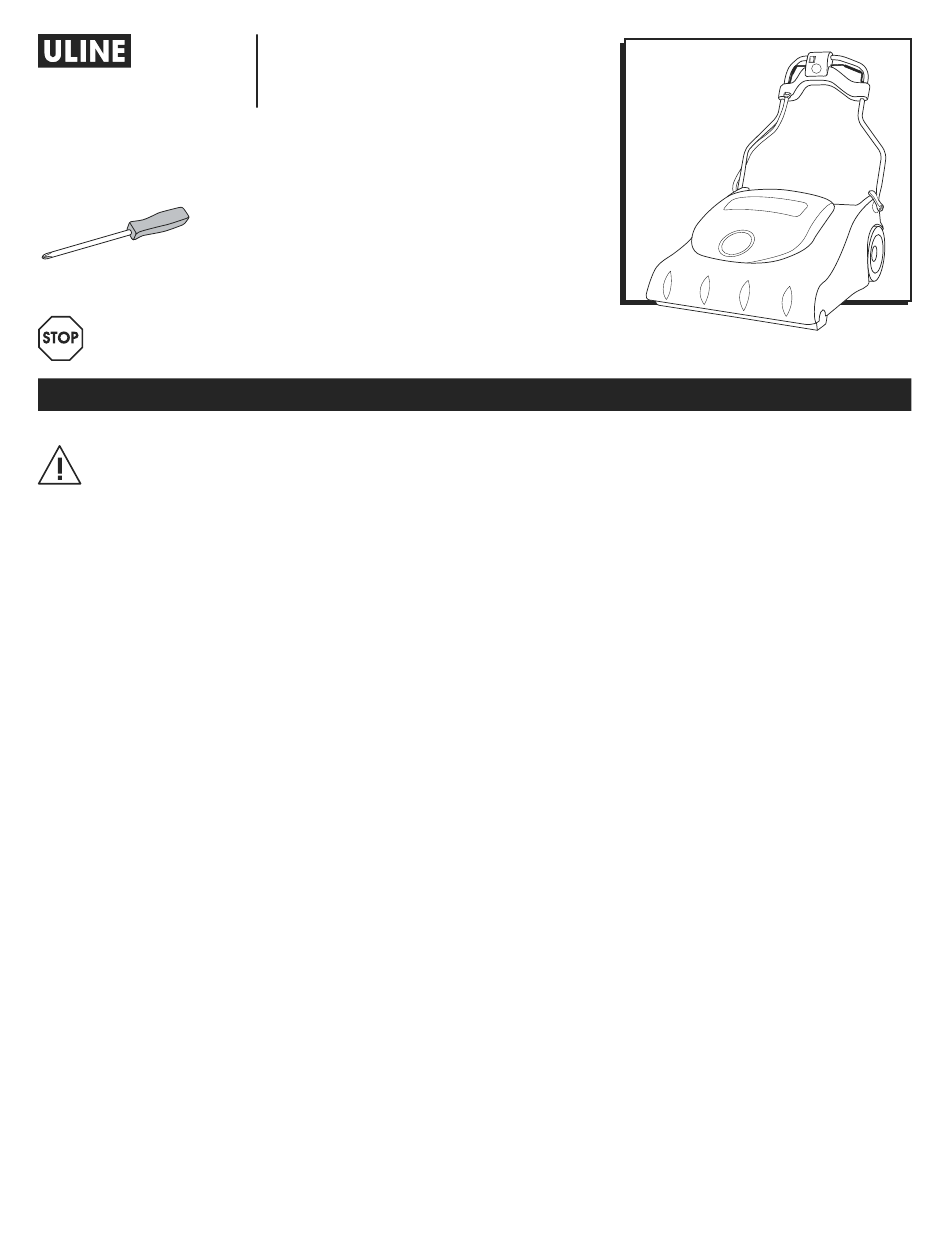

H-7645
30" WIDE
AREA VACUUM
TOOL NEEDED
Screwdriver
IMPORTANT! Read all instructions
before using vacuum.
CAUTION! To reduce the risk of fire, electric
shock, or injury:
• Vacuum is designed to pick up dirt, dry debris
and dust in an indoor environment and is not
constructed for any other use. The pick up of
any type of fluid or dangerous/toxic materials is
prohibited.
• Before plugging in, make sure the voltage
indicated on the rating plate located on the back
of the vacuum matches the local supply.
• Do not leave vacuum unattended when plugged
in. Unplug from outlet when not in use and before
servicing.
• Do not use with damaged cord or plug. If vacuum
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water,
return it to a service center for repair.
• Do not pull or carry by cord, use cord as handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum over cord.
Keep cord away from heated surfaces.
• If cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
• Do not handle plug or vacuum with wet hands.
• Turn off all controls before unplugging.
• Do not attempt to service the unit while vacuum is
plugged in.
PAGE 1 OF 24
1-800-295-5510
uline.com
SAFETY
Pour le français, consulter les pages 17-24.
• Connect to a properly grounded outlet only.
See Grounding Instructions. Connect only to a
dedicated individual branch circuit.
• Do not operate vacuum with the use of an
extension cord.
• Do not use outdoors or on wet surfaces. Do not
expose to rain/moisture. Store indoors.
• Do not put any object into openings. Do not use
with any opening blocked, keep free of dust, lint,
hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of
body away from openings and moving parts.
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches or hot ashes.
• Do not use without vacuum bag or filters in place.
• Do not use to pick up flammable or combustible
liquids such as gasoline or use in areas where they
may be present.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Use only as described. Use only manufacturer's
recommended attachments.
• Do not operate vacuum unless mentally and
physically capable of following vacuum
instructions.
• Keep children and unauthorized persons away
from the vacuum when in use.
Para Español, vea páginas 9-16.
0621 IH-7645

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-7645 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-7645

  • Page 1 Para Español, vea páginas 9-16. Pour le français, consulter les pages 17-24. H-7645 1-800-295-5510 uline.com 30" WIDE AREA VACUUM TOOL NEEDED Screwdriver IMPORTANT! Read all instructions before using vacuum. SAFETY CAUTION! To reduce the risk of fire, electric • Connect to a properly grounded outlet only.
  • Page 2: Safety Labels

    SAFETY CONTINUED This vacuum must be WARNING! Do not modify the plug provided grounded. If it should with the appliance. If it will not fit the outlet, Grounded malfunction or break have a proper outlet installed by a qualified Outlet down, grounding electrician.
  • Page 3 Brush Height Wheels Adjustment Pedal Vacuum Bag Compartment Lid 30" Brush REPLACEMENT BAGS, BELT AND FILTERS ULINE PART NO. DESCRIPTION H-7645-FILTR Disposable Paper Filter Bag H-7645-HEPA Disposable HEPA Paper Filter Bag H-7645-BAGS Outer Cloth Filter Bag H-7645-BELT Brush Belt H-7645-EXHST...
  • Page 4: Handle Adjustment

    SETUP HANDLE ADJUSTMENT 3. Install paper bag inside cloth bag. (See Figure 3) Loosen handle adjustment lock lever and adjust Figure 3 handle to desired operating height. (See Figure 1) 2. Tighten handle adjustment lock lever to lock handle Paper in place.
  • Page 5: Operation

    OPERATION Plug power cord into properly grounded power Figure 5 outlet. On/Off Switch 2. Turn On/Off switch to the ON position. (See Figure 5) Brush Brush 3. To operate brush squeeze brush start triggers. Start Start (See Figure 5) Trigger Trigger 4.
  • Page 6: Exhaust Filter Replacement

    MAINTENANCE CONTINUED BELT ADJUSTMENT AND REPLACEMENT CAUTION! Turn off and unplug vacuum before performing maintenance. 1. Turn off and unplug vacuum. EXHAUST FILTER REPLACEMENT 2. Carefully turn vacuum on side to remove belt cover on left side of vacuum by removing three screws 1.
  • Page 7: Specifications

    MAINTENANCE CONTINUED VACUUM MOTOR INTAKE FILTERS Replace filters in their original positions. (See Figure 11) 1. Turn off and unplug vacuum cleaner. Figure 11 2. Position handle in operating position. 3. Open vacuum lid. 4. Remove clamp with screwdriver to gain access to filter.
  • Page 8: Electrical Diagram

    ELECTRICAL DIAGRAM Input AC On/Off 120V Switch Black Black White Black Green White White Black Bridge Black Blue Rectifier Green Circuit Breaker 2.5A Black Black Black Circuit Breaker 15A Main Handle Black Black Black Bailer Black Handle Brush Switch Switchbox Machine 1-800-295-5510 uline.com...
  • Page 9: Herramienta Necesaria

    H-7645 800-295-5510 uline.mx ASPIRADORA PARA ÁREAS AMPLIAS DE 30" HERRAMIENTA NECESARIA Desarmador ¡IMPORTANTE! Lea todas las instrucciones antes de utilizar la aspiradora. SEGURIDAD ¡PRECAUCIÓN! Para reducir el riesgo de • Use solo enchufes debidamente conectados a incendio, descarga eléctrica, o lesiones: tierra.
  • Page 10: Etiquetas De Seguridad

    CONTINUACIÓN DE SEGURIDAD Esta aspiradora debe riesgo de descarga eléctrica. Verifique con Toma de estar conectada a un electricista calificado o personal de servicio en Corriente tierra. Si hay caso de que tenga dudas si su toma de corriente Conexión un funcionamiento está...
  • Page 11 Tapa del Compartimento de la Bolsa de la Aspiradora Cepillo de 30" BOLSAS, BANDAS Y FILTROS DE REPUESTO NO. DE PARTE DE ULINE DESCRIPCIÓN H-7645-FILTR Bolsa para Filtro de Papel Desechable H-7645-HEPA Bolsa para Filtro de Papel Desechable HEPA H-7645-BAGS...
  • Page 12 CONFIGURACIÓN SETUP AJUSTE DEL ASA 3. Coloque la bolsa de papel dentro de la bolsa de tela. (Vea Diagrama 3) 1. Afloje la palanca de bloqueo para ajustar el asa y ajuste el asa a la altura deseada de Diagrama 3 funcionamiento.
  • Page 13: Mantenimiento

    FUNCIONAMIENTO 1. Conecte el cable eléctrico a la toma de corriente Diagrama 5 Interruptor con conexión a tierra adecuada. Encendido/Apagado 2. Gire el interruptor de Encendido/Apagado a la posición de ON. (Vea Diagrama 5) Disparador Disparador que Activa que Activa 3.
  • Page 14 CONTINUACIÓN DE MANTENIMIENTO AJUSTE Y REPUESTO DE LA BANDA ¡PRECAUCIÓN! Apague y desconecte la aspiradora antes de darle mantenimiento. 1. Apague y desconecte la aspiradora. REPUESTO DEL FILTRO DE ESCAPE 2. Con cuidado acueste la aspiradora de lado para retirar la cubierta de la banda del lado izquierdo 1.
  • Page 15: Especificaciones

    CONTINUACIÓN DE MANTENIMIENTO FILTROS DEL CONSUMO DEL MOTOR Reemplace los filtros en su posición original. (Vea Diagrama 11) DE LA ASPIRADORA Apague y desconecte la aspiradora. Diagrama 11 2. Coloque el asa en la posición de funcionamiento. 3. Abra la tapa de la aspiradora. 4.
  • Page 16: Diagrama Eléctrico

    DIAGRAMA ELÉCTRICO Entrada AC Interruptor 120V Encendido/Apagado Negro Negro Blanco Negro Verde Blanco Negro Blanco Puente Negro Azul Rectificador Rojo Rojo Verde Disyuntor de 2.5A Motor Negro Negro Negro Disyuntor Aspiradora depillo Cepillo Principal Negro Negro Negro Asa de Aspiradora Negro Liberación Interruptor...
  • Page 17 H-7645 1-800-295-5510 uline.ca ASPIRATEUR POUR GRANDE SUPERFICIE – 30 PO OUTIL REQUIS Tournevis IMPORTANT! Lisez le mode ARRÊT d'emploi avant l'utilisation. SÉCURITÉ MISE EN GARDE! Pour réduire le risque d'incendie, • Branchez à une prise correctement mise à la terre.
  • Page 18: Étiquettes De Sécurité

    SÉCURITÉ SUITE Cet aspirateur doit être AVERTISSEMENT! Ne modifiez pas la fiche fournie ARRÊT Prise mise mis à la terre. En cas de avec l'appareil. Si elle ne convient pas à à la terre défaillance ou la prise, faites installer une prise appropriée par de panne, la mise à...
  • Page 19 10 po Couvercle du compartiment Brosse de 30 po à sac d'aspirateur SACS, COURROIE ET FILTRES DE RECHANGE RÉF. ULINE DESCRIPTION H-7645-FILTR Sac-filtre en papier jetable H-7645-HEPA Sac-filtre HEPA en papier jetable H-7645-BAGS Sac-filtre extérieur en tissu H-7645-BELT Courroie de brosse...
  • Page 20: Réglage De La Poignée

    INSTALLATION SETUP RÉGLAGE DE LA POIGNÉE 3. Installez le sac en papier dans le sac en tissu. (Voir Figure 3) Desserrez le levier de blocage et de réglage de la poignée et placez la poignée à la hauteur de Figure 3 fonctionnement désirée.
  • Page 21: Entretien

    FONCTIONNEMENT Branchez le cordon d'alimentation dans une prise Figure 5 Interrupteur correctement mise à la terre. marche/arrêt 2. Allumez l'interrupteur marche/arrêt. (Voir Figure 5) Déclencheur Déclencheur 3. Pressez les déclencheurs pour faire fonctionner de brosse la brosse. (Voir Figure 5) brosse 4.
  • Page 22: Remplacement Du Filtre De Sortie D'air

    ENTRETIEN SUITE REMPLACEMENT ET RÉGLAGE DE LA COURROIE MISE EN GARDE! Éteignez et débranchez l'aspirateur avant de procéder à l'entretien. Éteignez et débranchez l'aspirateur. REMPLACEMENT DU FILTRE DE SORTIE D'AIR 2. Placez avec soin l'aspirateur sur le côté et retirez le couvercle de la courroie situé...
  • Page 23: Données Techniques

    ENTRETIEN SUITE FILTRES D'ENTRÉE D'AIR DU MOTEUR D'ASPIRATEUR Remplacez et remettez les filtres dans leur position initiale. (Voir Figure 11) Éteignez et débranchez l'aspirateur. Figure 11 2. Placez la poignée en position de fonctionnement. 3. Ouvrez le couvercle de l'aspirateur. 4.
  • Page 24 SCHÉMA DU SYSTÈME ÉLECTRIQUE Entrée CA Interrupteur de 120 V marche/arrêt Noir Noir Blanc Noir Vert Blanc Blanc Noir Pont Bleu Bleu redresseur Rouge Rouge Vert Disjonteur de 2,5 A Moteur Noir Noir Noir Disjoncteur de la Aspiration 1 de 15 A brosse Poignée principale...
