OWNER'S
MANUAL
MODEL NO.
390.269152
CAUTION:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product.
Save This Manual For
Future Reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PRINTED IN U.S.A.
Pump out a flooded basement.
OU
T
IN

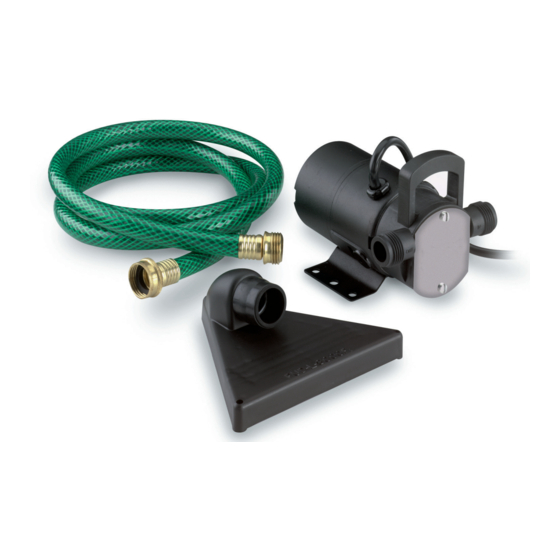

PORTABLE UTILITY PUMP
• Safety Instructions
• Installation
• Operation
• Maintenace
• Repair Parts
Empty a clogged sink or tub.
O
U T
I N
629 0405
®
Form No.
512 0405
F642-05001
(4/22/05)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sears CRAFTSMAN 390.269152
Summary of Contents for Sears CRAFTSMAN 390.269152
- Page 1 • Safety Instructions Before First Use of This Product. • Installation • Operation Save This Manual For Future Reference. • Maintenace • Repair Parts Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PRINTED IN U.S.A. F642-05001 Form No. (4/22/05)
- Page 2 This warranty is VOID if this pump is used for commercial or rental purposes. Sears is not liable for loss or damage to property, nor for any incidental or consequential loss or expense from property damage, that results directly or indirectly from the use of this product.
- Page 3 INSTALLATION STEP 1 STEP 3 Do Not Run Pump Dry! Straight Hose! No Coils! No kinks! 4838 0205 KEEP THE HOSES AS STRAIGHT AS POSSIBLE To reduce friction, do not coil or kink the hoses. When 4836 0205 OIL THE PUMP pumping from a well or stream, raise the inlet hose a few Oil the pump with 1/2 tablespoon food grade mineral or veg- inches off the bottom to avoid sucking in sand, silt or peb-...
- Page 4 INSTALLATION / MAINTENANCE In rare cases you may need to prime the pump. To prime it, MAINTENANCE INSTRUCTIONS fill the suction hose with water, put it back in the water source, and start the pump. Hazardous voltage. Can shock, burn, or cause death.
- Page 5 MAINTENANCE PUMP DISASSEMBLY 4. Remove the shaft seal. This may need to be pushed out from the backside. 1. Remove the two face screws, front wear plate and the O-Ring. Figure 5 – Seal Removal Figure 2 – Remove Face Plate PUMP ASSEMBLY 2.
- Page 6 MAINTENANCE 3. Align the motor shaft so the flat section on the shaft is Typical uses for the Utility Pump: lined up with the flat area on the inside of the impeller. Slide the pump end with the insert and impeller onto the motor shaft.
- Page 7 RP0001077 Impeller Cavity Insert U97-146 U Cup Seal 16FA019-4 Pump Body C76-69P Slinger RP0001616 Motor M0015-115 Brush Kit PKG 201 • Pud-L-Scoop™ SA35 • Not illustrated. † Standard hardware item; purchase locally. To Order Parts, Call Sears Product Service, 1-800-366-7278...
- Page 8 Sears Parts & Repair Center. 1-800-488-1222 Call anytime, day or night (U.S.A. only) www.sears.com To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 1-800-361-6665 (U.S.A.) (Canada) Para pedir servicio de reparación Au Canada pour service en français:...
