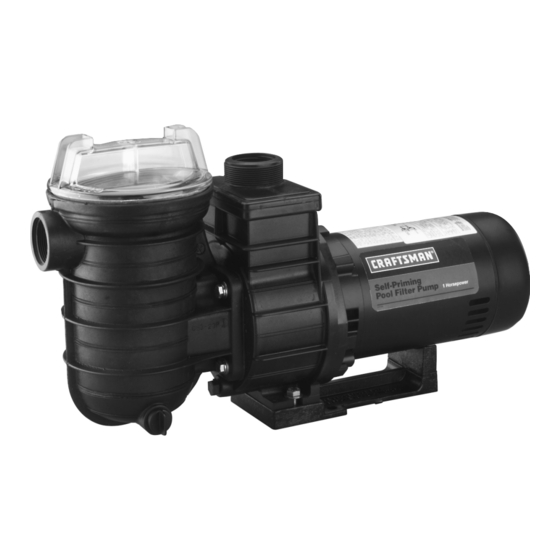

Sears CRAFTSMAN 390.262801 Owner's Manual

Self-priming pool filter pump

Hide thumbs

Table Of Contents

Quick Links

Download this manual

OWNER'S

MANUAL

Model No.

390.262801

390.262901

CAUTION:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

Save This Manual For

Future Reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

PRINTED IN U.S.A.

SELF-PRIMING

POOL FILTER PUMP

• Safety Instructions

• Installation

• Operation

• Service Hints

• Repair Parts

F642-9817

Form No.

(Rev. 4/24/02)

Table of Contents

Need help?

Do you have a question about the CRAFTSMAN 390.262801 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sears CRAFTSMAN 390.262801

Page 1 Before First Use of This Product. • Safety Instructions • Installation • Operation Save This Manual For Future Reference. • Service Hints • Repair Parts Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PRINTED IN U.S.A. F642-9817 Form No. (Rev. 4/24/02)
Page 2: Table Of Contents
® POOL FILTER PUMPS For one year from the date of purchase, Sears will repair or replace this pump, free of charge, if defective in mate- rials or workmanship. This warranty does not cover repairs on replacement parts necessary because of abuse or negligence including failure to install, adjust and operate this pump according to the instructions in the owner’s manual.
Page 3: Safety Instructions
Wire pump through a Ground Fault Circuit Interrupter and/or property damage. (GFCI - required by the National Electrical Code for above ground pools). A GFCI is available from the Sears Electrical Department.
Page 4: Installation
INSTALLATION Pump mount must: Teﬂon Taping Instructions: Be solid - level - rigid - vibration free. (To reduce vibration Use only new or clean PVC pipe ﬁttings. and pipe stress, bolt pump to mount.) Wrap male pipe threads with one to two layers of teﬂon Allow pump inlet height to be as close to water level as tape, winding tape clockwise as you face start of thread.
Page 5: Electrical
ELECTRICAL Ground motor before Bond motor to pool structure. Use a solid copper con- WARNING connecting to electrical ductor, size No. 8 AWG (8.4 mm ) or larger. Run wire from power supply. Failure to external bonding lug (see Figure 2) to reinforcing rod or ground pump motor can mesh.
Page 6: Operation
ELECTRICAL / OPERATION ELECTRICAL OPERATION NEVER run pump dry. Connect a No. 8 AWG (8.4 mm ) solid copper bonding Running pump wire to the pressure wire connector provided on the may damage seals, causing motor housing and to all metal parts of swimming pool, spa, or hot tub and to all electrical equipment, metal pip- leakage and flooding.
Page 7: Storage/Winterizing
OPERATION Clean and lubricate trap cover O-ring with petroleum jelly Draining Pump each time it is removed. 1. Pump down water level WARNING Clean and inspect O-ring; reinstall on trap cover. below all inlets to the pool. Replace trap cover on trap; turn clockwise to tighten cover.
Page 8: Pump Service
PUMP SERVICE Pump should only be serviced by qualiﬁed person- Pump Reassembly/Installing New Seal: nel. 1. Carefully examine the seal “L” cup and tank body Be sure to prime pump (Page 6) before starting up O-Ring (Key No. 5, Page 10). Replace if material shows after service.
Page 9: Troubleshooting Guide
TROUBLESHOOTING GUIDE Read and understand Mechanical Troubles / Noise WARNING safety and operating 1. Make sure suction and discharge piping are supported. instructions in this manual 2. Securely mount pump on concrete platform for qui- before doing any work on etest performance.
Page 10 REPAIR PARTS To order parts, call: 228 0893 Sears Product Service 1-800-366-7278 Part 390.262801 390.262901 Description 1 H.P. 1-1/2 H.P. Motor - 60 Cycle - 115/230V C218-313C C218-314C Screw, #10-32 x 1/2” Lg. U30-692SS U30-692SS Bonding Lug U17-568 U17-568 Water Slinger...
Page 12 Maintenance Agreement or to inquire • Product Type about an existing Agreement • Model Number call 9 am - 5 pm, Monday-Saturday 1-800-827-6655 • Part Number • Part Description REPAIR SERVICES America's Repair Specialists Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
