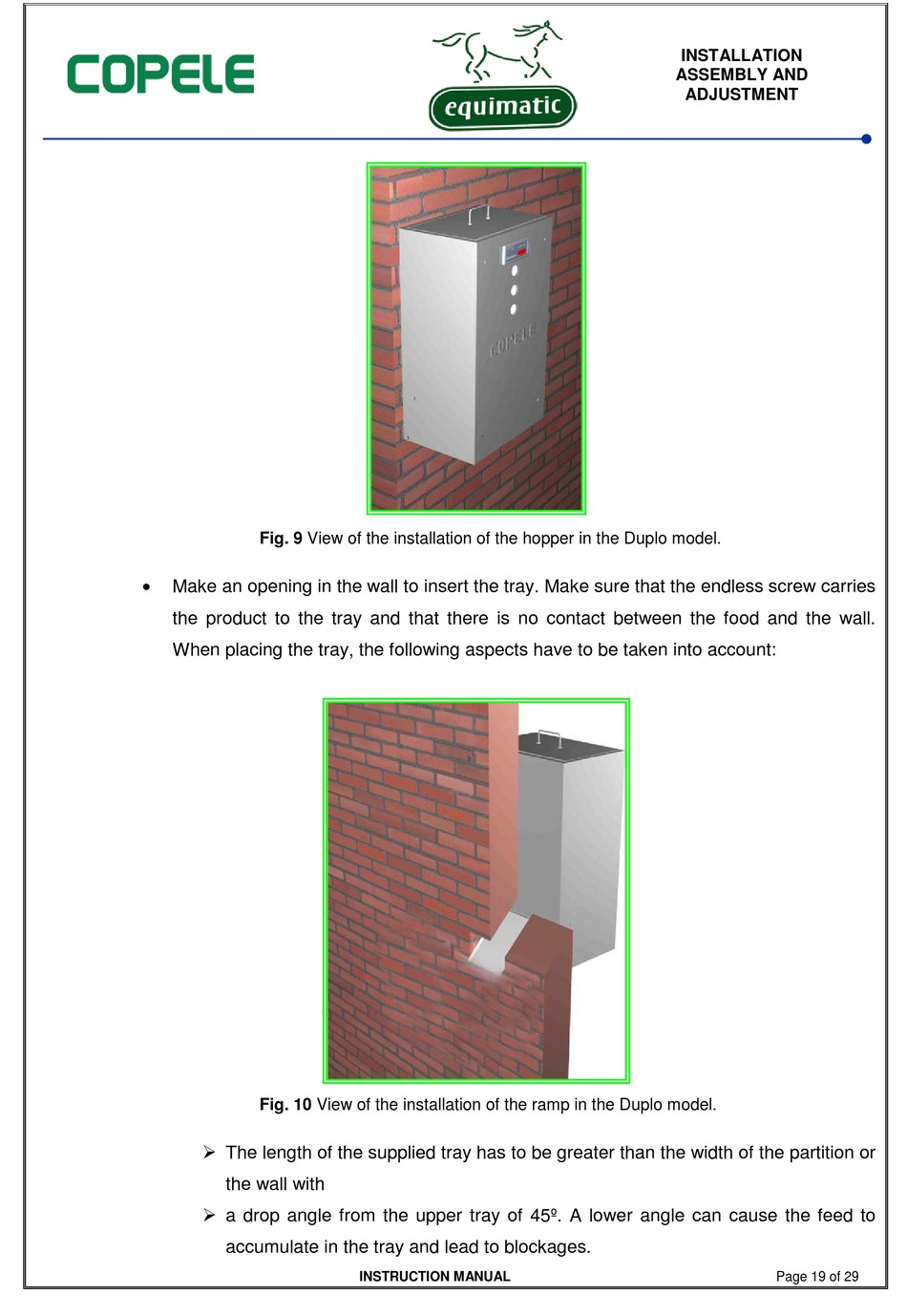

Fig. 9 View of the installation of the hopper in the Duplo model.
Make an opening in the wall to insert the tray. Make sure that the endless screw carries
the product to the tray and that there is no contact between the food and the wall.
When placing the tray, the following aspects have to be taken into account:
Fig. 10 View of the installation of the ramp in the Duplo model.
 The length of the supplied tray has to be greater than the width of the partition or
the wall with
 a drop angle from the upper tray of 45º. A lower angle can cause the feed to
accumulate in the tray and lead to blockages.
INSTRUCTION MANUAL
INSTALLATION
ASSEMBLY AND
ADJUSTMENT
Page 19 of 29
