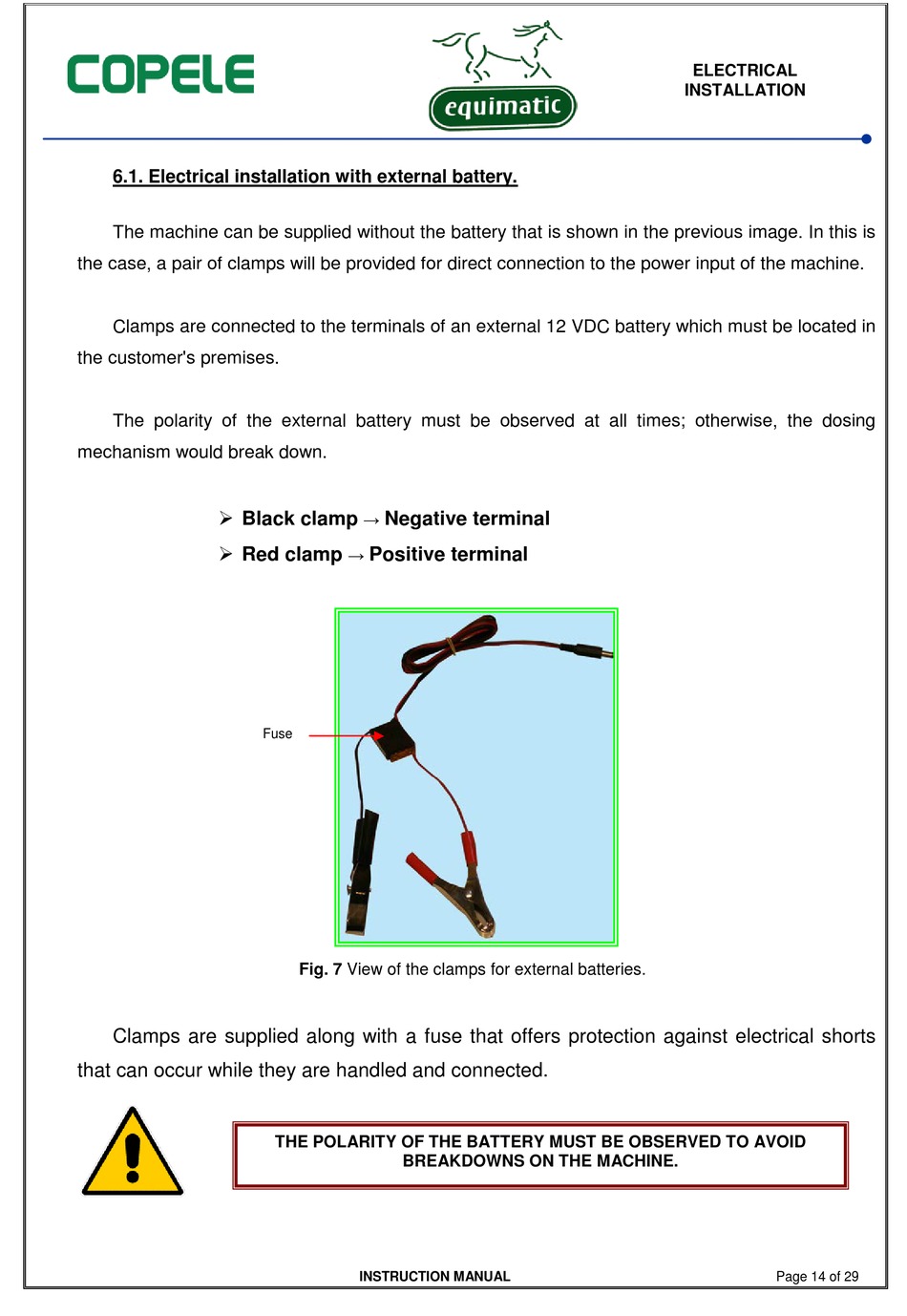

6.1. Electrical installation with external battery.

The machine can be supplied without the battery that is shown in the previous image. In this is
the case, a pair of clamps will be provided for direct connection to the power input of the machine.
Clamps are connected to the terminals of an external 12 VDC battery which must be located in
the customer's premises.
The polarity of the external battery must be observed at all times; otherwise, the dosing
mechanism would break down.
 Black clamp
 Red clamp
Clamps are supplied along with a fuse that offers protection against electrical shorts
that can occur while they are handled and connected.
→
Negative terminal
→
Positive terminal
Fuse
Fig. 7 View of the clamps for external batteries.
THE POLARITY OF THE BATTERY MUST BE OBSERVED TO AVOID
BREAKDOWNS ON THE MACHINE.
