- Page 1 La un ch A m pl i f i e r INSTRUCTION MANUAL WATS 930 www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Guarantee General Description Technical Description Example Configuration Specifications... -
Page 3: Safety
Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 4: General Description

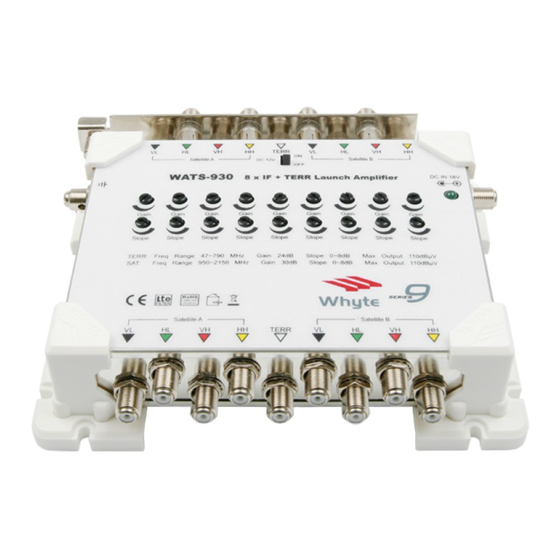

GENERAL DESCRIPTION The Whyte WATS-930 is a 8 x SAT and 1 x Terrestrial Launch Amplifier that is compact and powerful. It may be utilised as a Launch Amplifier or as a Line Amplifier, and can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. -
Page 5: Example Configuration
EXAMPLE CONFIGURATION SAT A SAT B WATS-930 2.5A Power Supply Unit Short Circuit & Overload Prorection Model: WPSU-2.5A Input: 110-240V AC 50/60Hz Output: 18V 2.5A WPSU-2.5A WM932 Quick Fit Couplers WM932 WM932... -
Page 6: Specifications
Slope Control to all inputs The RED Compliant Whyte WATS-930 is a 8 x SAT and 1 x Terrestrial Launch Amplifier that is compact and powerful. It may be utilised as a Launch Amplifier or as a Line Amplifier, and can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. For ease of installation, the WATS-930 Launch Amplifier can be connected directly to a cascade of Series 9 Multiswitches using F-type couplers. - Page 7 Unit 13, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Copyright © Whyte Technologies June 2020...
