- Page 1 Launch A m p lif i er INSTRUCTION MANUAL WATS-1730 www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Guarantee General Description Product Description Technical Description Installation Instructions Example Configuration Specifications... -
Page 3: Safety
Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 4: General Description

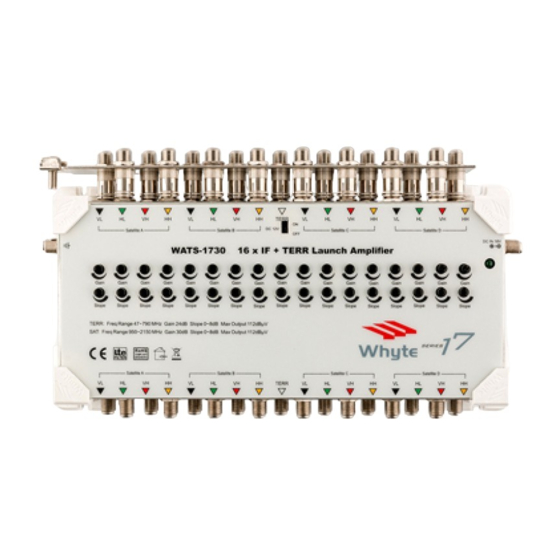

GENERAL DESCRIPTION The Whyte™ Series 17 Launch Amplifier is a 16 x IF plus 1 x Terrestrial Launch Amplifier. The WATS-1730 provides a gain of 30dB to all Satellite inputs and a gain of 24dB on Terrestrial. All inputs are colour coded and each come fitted with individual Gain Control and Slope Control. -
Page 5: Product Description
TECHNICAL DESCRIPTION Whyte™ Series 17 Launch Amplifiers may be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. A Whyte™ Power Supply Unit may be connected to the 18V Auxiliary Input which will power the amplifier as well as pass power upwards and downwards via the HH and HL lines. - Page 6 EXAMPLE CONFIGURATION 17 WIRE SINGLE TRUNK CASCADE CONFIGURATION SAT A SAT B SAT C SAT D WPSU-2.5A WM1732 WATS-1730 Quick Fit Couplers WPSU-2.5A WM1732 WM1732 WM1732 WM1732 DC Block WM1732...
- Page 7 LTE Filter rejects 4G interference The Whyte WATS-1730 is a 16 x SAT and 1 x Terrestrial Launch Amplifier that is compact and powerful. It may be utilised as a Launch Amplifier or as a Line Amplifier, and can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. For ease of installation, the WATS-1730 Launch Amplifier can be connected directly to a cascade Series 17 Multiswitches using F-type couplers.
-
Page 8: Installation Instructions
Unit 13, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Copyright © Whyte Technologies June 2020...
