Summary of Contents for Radenso DS1

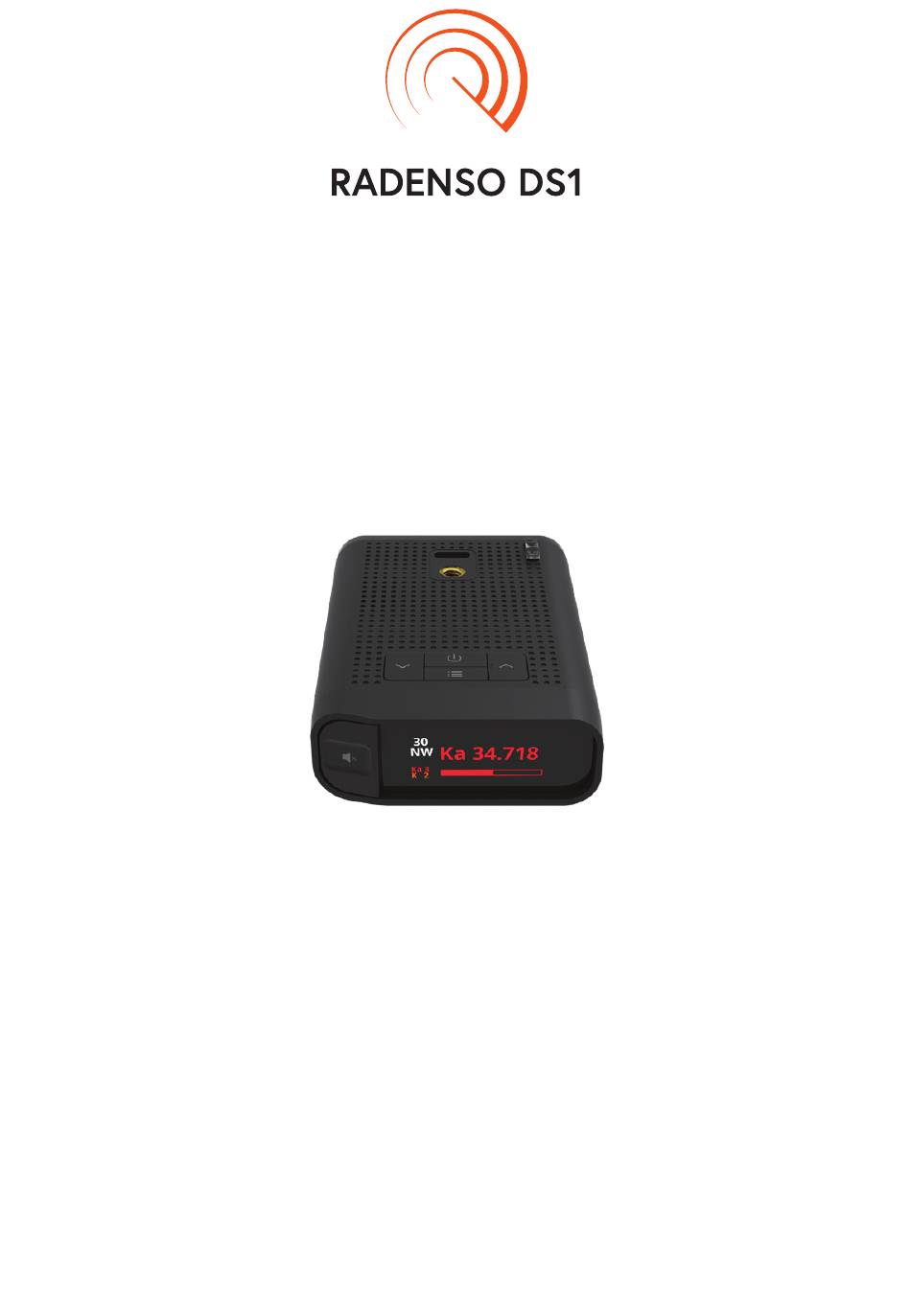

- Page 1 DS1 USER MANUAL VERSION 1.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Quick Start ............1 Button Operation Common Features . -
Page 3: Quick Start
QUICK START Button Operation Power Press Power On/Off Press Volume Level Up (0-9) Vol + Move Right (in the main menu) Press (in Menu) or Down (in the submenu) Press Volume Level Down (0-9) Vol - Move Left (in the main menu) Press (in Menu) or Up... -
Page 4: Common Features
COMMON FEATURES Understanding Mute Mute Mode can be activated by pressing [MUTE] during laser or radar alerts. Laser, radar, and over speed alerts will be muted. Unit automatically turns Mute Mode off 20 seconds after the radar/laser alert ends. Unit automatically turns Mute Mode off if the laser or radar band changes. -
Page 5: Accessories
• Wiring can be hidden behind your car interior panels to provide a stealthy look • Compatible with the Radenso DS1 Radenso Magnetic Suction Cup Mount • Easily mount your detector to the windshield of your car •... -
Page 6: Menu Settings
MENU SETTINGS The default menu settings are denoted in bold. Menu Submenu Option Menu Auto, Custom Mode On, Off Voice Frequency Display User Off, 5-45mph : 5mph step, Preference Low Speed 10-70km/h : 10km/h step Mute Default: US/CAN: 15mph; AUS/NZ: 40km/h Off, 65-105mph : 5mph step, Overspeed Warning... - Page 7 Menu Submenu Option Menu On, Off Ka1 Mode On, Off Ka2 Mode On, Off Ka3 Mode On, Off Ka4 Mode On, Off Ka5 Mode On, Off Ka6 Mode Band Setting (cont.) On, Off Ka7 Mode On, Off Ka8 Mode On, Off Ka9 Mode On, Off Ka Filter...
- Page 8 Menu Submenu Option Menu 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Laser Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Ka Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Tone MRCD Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 K Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10...
-
Page 9: Speed Unit
Menu Submenu Option Menu US, Canada, AUS/NZ Region -12 to 0 to +12 / 1 step Default: US/CAN: -5 ; AUS/NZ: +12 On, Off hr, 24 hr Time 12/24 English (mph), Metric (km/h) Unit Default: US: english; CAN/AUS/NZ: metric Auto Power Off, 15 min, 30 min Auto Mute Unit... -
Page 10: Displays
DISPLAYS Idle Display Set the standby mode. Scan Display: A moving scan graph is displayed. Time Display: The current time is displayed. User can select 12hr or 24hr in the menu. Smart Dark, Dark: Shows only one dot on the right bottom side. -
Page 11: Additional Settings
X or K band alerts. Then, if the same frequency (X, K band: +/- 10MHz) is detected at the same location, X and K alert will mute and the display will show ‘Lockout’ in green at the lower right corner until DS1 goes out of the 500m radius. Lockout Range Entry: approximately 450m... -
Page 12: User Point Alert
Press [MUTE] again to delete. The voice and display will confirm that the lockout was deleted. If the DS1 can't save the Lockout due to an issue receiving the GPS location, the voice will say "GPS Error." Delete All Lockouts Select "Delete All Lockouts"... -
Page 13: Auto Lockouts
Auto Lockouts If the same signal (X Band : +-10Mhz, K Band : +-10Mhz) is detected at the same location three times( 1st + 2nd + 3rd), DS1 will automatically lock the signal out as a false alert. Once a... -
Page 14: K-Notch
If choose “Delete All Auto Lockout?” in the menu, all Auto Lockout will be deleted K-notch The DS1 will mute the alert voice when K Band is within the range of 24.199 +- 0.005Ghz detects. Display will turn gray and display “K-notch” in green. -
Page 15: Threat Display
The display will first prioritize laser alerts, then MRCD, Ka, K, and X (in that order). Bogey Tone If another frequency is detected during X, K, Ka Band Alert, DS1 sounds the Bogey Tone and then the band alert continues. Auto Mute Mode... -
Page 16: Power Cord Alert Led
Dimmer, depending on the brightness of surroundings. Auto Power Mode If DS1 detects its speed is 0 or if it cannot receive GPS location data for the set time (15 min or 30 min), the Auto Power Off alert will ring for 10 seconds before powering off the detector. -
Page 17: Software Update
Software Update DS1 can be updated using Windows. Software updates include updates to red light and speed camera databases as well as new features from time to time. For the best user experience, we recommending updating your detector every few months. -
Page 18: Fcc Statement
FCC COMPLIANCE FCC ID : 2AZ4TDS1, CONTAINS FCC ID : W75-BTM0 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Warranty
Damage resulting from use, accident, modification of hardware or software, or normal wear and tear is not covered by this or any warranty. Radenso assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of this product. -
Page 20: Support
SUPPORT Thank you for purchasing the most advanced radar and laser detector in the world. Here at Radenso, we're committed to customer satisfaction. If you need support in any capacity, please contact us immediately. Address Radenso 1100 Sycamore Street Floor 1... -
Page 21: Memo
MEMO PAGE 19... - Page 22 MEMO PAGE 20...
