Summary of Contents for Radenso DS1

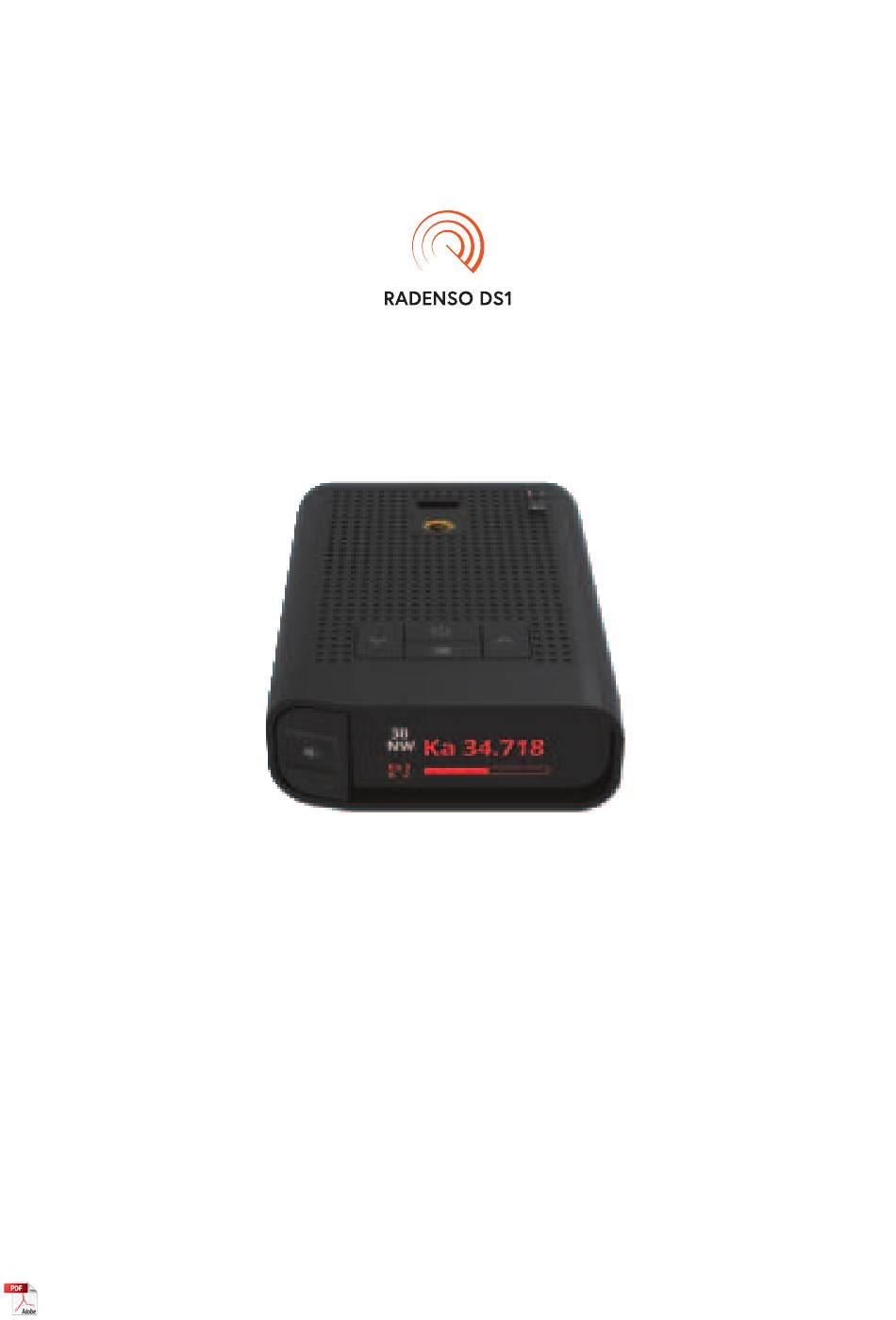

- Page 1 DS1 USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Features Preamble Display Button Operation Mute On/Off, Auto Demute Button Operation in Menu Mode Factory Reset Menu Settings 7-10 Speed Unit Unit of Measure for Quiet Ride & Speed Limit Idle Display Sub Display Alerts 12-13 Lowspeed Mute RLC Auto Mute Lockouts 14-15... -
Page 3: Features
FEATURES 19. Over Speed Warning 2. DB POI (Red Light, Speed (Off, 65-105mph/5mph step, Camera, Red & Speed Camera) 100-170kmph/10kmph step) Delete 20. BT On/Off 3. User Point Save/ 21. Laser On/Off Delete 22. Ka On/Off (Max 5,000 points) 4. User Point Alarm 23. - Page 4 40. K Color 56. All Lockout Delete (Red, Blue, White, 57. All Auto Lockout Gray, Pink, Purple, Green, Amber) 41. X Color ( Delete (Red, Blue, White, 58. Region Gray, Pink, Purple, Green, Amber) (US, CANADA, AUS/ 42. Idle Mode (Time, Scan, 59.
-
Page 5: Preamble Display
Preamble Display During a Preamble, the display shows Radesndo DS1 logo with Bright mode. Button Operation Power Press Power on/off Volume Level Up (Display & 1 Beep) Vol + Press 0-9 Level Volume Level Down (Display & 1 Vol -... -
Page 6: Button Operation In Menu Mode
Button Operation in Menu Mode Main Menu [VOL+]: Move to the right from the left in Main Menu [VOL-]: Move to the left from the right in Main Menu [MENU]: Select an option to enter the Sub Menu. Sub Menu: [VOL+]: Step down on the Sub Menu . -
Page 7: Menu Settings
MENU SETTINGS The default menu settings are denoted in bold. Menu Submenu Option Menu Mode Auto, Custom Voice On, Off Frequency Off Display Off, 5-45mph/5mph step, Low Speed User 10-70kmph/10kmph step Mute Preference Default: US/CAN: 15mph; AUS/NZ: 40kmph Overspeed Off, 65-105mph/5mph step, Warning 100-170kmph/10kmph step Off... - Page 8 Menu Submenu Option Menu Ka1 Mode On, Off Ka2 Mode On, Off Ka3 Mode On, Off Ka4 Mode On, Off Ka5 Mode On, Off Ka6 Mode On, Off Band Setting (cont.) Ka7 Mode On, Off Ka8 Mode On, Off Ka9 Mode On, Off Ka Filter On, Off...
- Page 9 Menu Submenu Option Menu Laser Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Ka Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Tone MRCD Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 K Tone 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 1, 2, 3, 4, 5, 6, 7, 8, 9, 10...
-
Page 10: Speed Unit
US, Canada, AUS/NZ Region -12 to 0 to +12 / 1 step Default: US/CAN: -5 ; AUS/NZ: +12 On, Off Time 12/24 hr, 24 hr English (mph), Metric (kmph) Unit Default: US: english; CAN/AUS/NZ: metric Auto Power Off, 15 min, 30 min Off... -
Page 11: Unit Of Measure For Quiet Ride & Speed Limit
Unit of Measure for Quiet Ride & Speed Limit mph to km/h 2. km/h to mph 1.1 Low Speed Mute 2.1 Low Speed Mute 5 mph to 10 km/h 10 km/h to 5 mph 10 mph to 20 km/h 20 km/h to 10 mph 15 mph to 20 km/h 30 km/h to 20 mph 20 mph to 30 km/h... -
Page 12: Idle Display
DISPLAYS Idle Display Set the standby mode. Scan Display: A moving red scan graph is displayed. 2. Time Display: The current time is displayed. User can select 12hr or 24hr in the menu. 3. Smart Dark, Dark: Shows only one dot on the right bottom side. - Page 13 of the lockout. Auto Lockout: in the right bottom corner, "Auto Lockout" will show in green while within the radius of the lockout. 8. K 24.199 Lockout Display: in the right bottom corner, "K L/O 24.199" will show in green while within the radius of the false alert.
-
Page 14: Lowspeed Mute
(X, K band: +/-10MHz) is detected at the same location, X and K alarm will be muted and the display will show ‘Lockout’ in green at the lower right corner until DS1 goes out of the 500m radius. Lockout Range... -
Page 15: User Point Alarm
3. Press [MUTE] again to delete. The voice and display will confirm that the lockout was deleted. DS1 does not save the Lockout due to the problem of receving GPS location data, the voice says "GPS Error." If GPS is unfixed, DS1 get Mute Off. -
Page 16: Poi Point Delete (Speed & Red Light Camera)
3rd), DS1 will automatically lock the signal out as a false alert. Once a signal is saved in Auto mute memory (the 1st counting) , DS1 will not save the same signal for 8 hours even though it is detected again, which means it takes at least 16 hours( 1st + 2nd + 3rd) to automatically lock a signal out. -
Page 17: K Lockout 24.199
If choose “Delete All Auto Lockout?” in the menu, all Auto Lockout will be deleted K Lockout 24.199 DS1 mute the alert voice when K Band within the range of 24.199 +- 0.005MH detects. Display turns gray-out and shows “K L/O 24.199” in green. -
Page 18: Threat Display
3. Ka 4. X, K Bogey Tone If the other frequency is detected during X, K, Ka Band Alert, DS1 sounds the Bogey Tone and then the band alert continues. Auto Mute Mode Auto Mute Mode : Selectable (On/Off) When Radar (X, K and Ka, POP) alert starts, DS1... -
Page 19: Auto Dim Mode
Option (1 sec, 2 sec, 3 sec). After DS1 gets Auto Mute On, DS1 volume level sounds reduced by Auto Mute Vol option percentage. 2. Auto Mute ends 10 seconds after the alarm ends. If the same radar is detected within 10 seconds, the unit keeps Auto Mute On. -
Page 20: Power Cord Mute Button
Laser or Radar alarm beeping sound increases. Power Cord Mute Button Power Cord Mute button operation is the same as those of DS1 unit. Software Update DS1 can be updated using both PC and BT. PAGE 20... -
Page 21: Fcc Statement
FCC ID : 2AZ4TDS1, CONTAINS FCC ID : W75-BTM0 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-
Page 23: Support
SUPPORT Thank you for purchasing the most advanced radar and laser defense in the world. Here at Radenso, we take your support very seriously; if you need support in any capacity, please contact us immediately. Address Radenso 1100 Sycamore Street...
