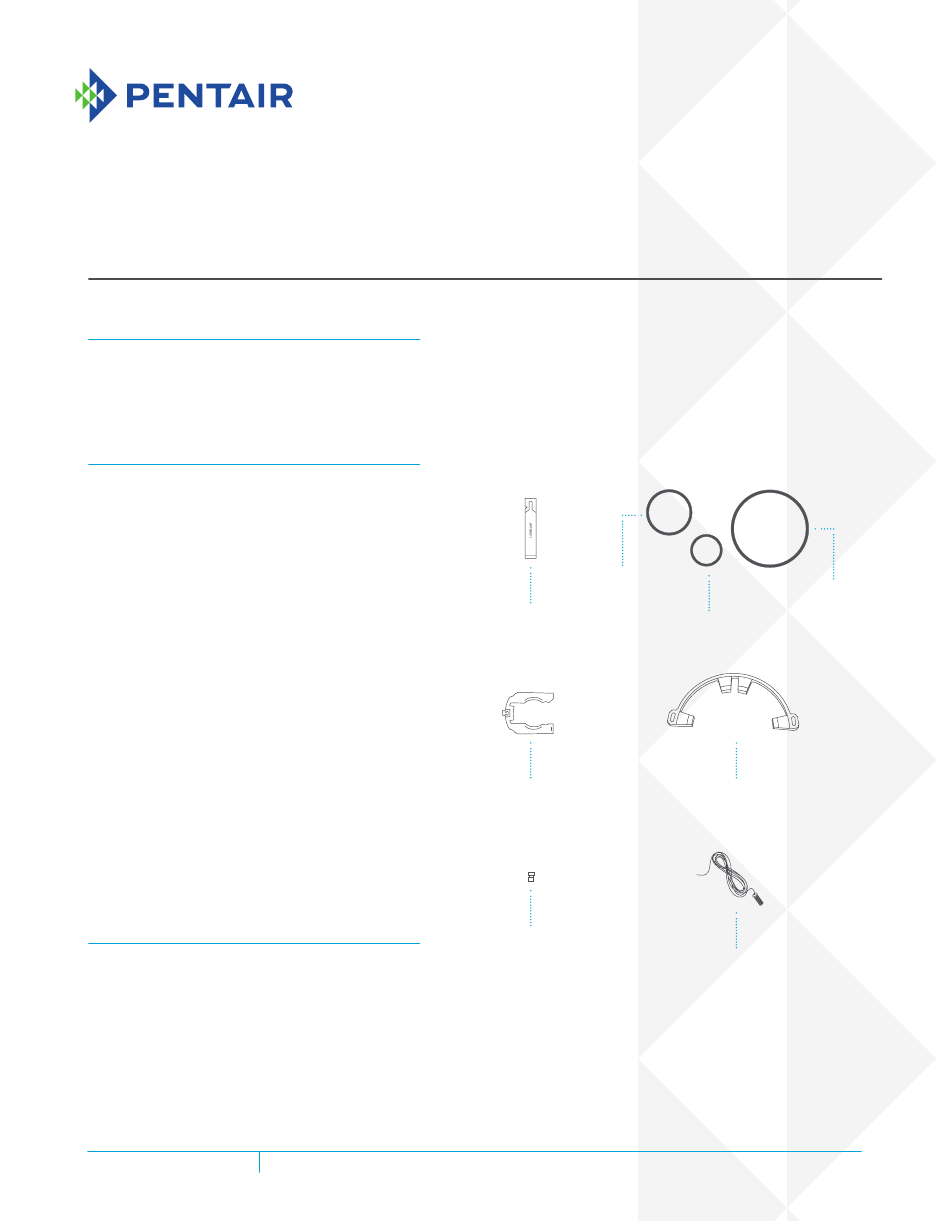

CLASSIC & CLASSIC QUICK CONNECT
WELLMATE
®
AIR CELL REPLACEMENT INSTRUCTIONS

NOTES

If replacing rubber air cell, drain with tether hole is required. See figure 3. If incorrect drain is
used, the tank will not function properly.
If tank has black (rubber) air cell, natural colored air cell is a direct replacement.

KIT INCLUDES

Qty.
Description
1
O-ring Lubricant Packet
1
Drain Assembly O-ring
(for black drain) CH2694-114
1
Drain Assembly O-ring
(for grey drain) 2694-112
2
Drain Assembly "C" Clips
(for back drain) CH20514
1
Replacement Air Cell
1
String Kit
1 Nylon String
1 Brass Valve Stem Connector
1 Valve Stem Nut
1 Valve Stem Washer
1 White Spacer
1
Valve Stem Cap
1
"H" Clip for Service Connection Fitting
(for black drain)
1
O-ring for Service Connection Fitting
(for black drain) 40951

MAY ALSO REQUIRE

Valve Core Tool
3/4" Diameter x 18" Long Wooden Dowel
Hacksaw
Channel Lock Pliers
Air Source
1/2" Deep Well Socket
FILTRATION & PROCESS
LUBRICANT
AIR CELL REPLACEMENT INSTRUCTIONS
LUBRICANT
O-ring 2694-112
(for grey drain)
Lubricant Packet CH13279
(for both classic & classic QC)
LUBRICANT
H-Clip 40876
(for black drain)
Air Stem Cap CH4630-1
(for both classic & classic QC)
O-ring CH2694-114
(for black drain)
O-ring 40951
(for black drain)
C-Clip (x2) CH20514
(for black drain)
String Kit
(for both classic & classic QC)
LUBRICANT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WELLMATE CLASSIC and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair WELLMATE CLASSIC

  • Page 1 CLASSIC & CLASSIC QUICK CONNECT WELLMATE ® AIR CELL REPLACEMENT INSTRUCTIONS NOTES If replacing rubber air cell, drain with tether hole is required. See figure 3. If incorrect drain is used, the tank will not function properly. If tank has black (rubber) air cell, natural colored air cell is a direct replacement. KIT INCLUDES Qty.
  • Page 2 TO REMOVE OLD AIR CELL Figure 1 Dust Cap 1. Turn off electric power to the pump at the control box or main switch. 2. Drain water from the tank by opening faucet closest to the tank. Allow all Valve Stem Cap water to escape and leave faucet open after water stops running.
  • Page 3 Figure 3 - Drain Assembly Tether hole for air cell FOR TANK WITH BLACK DRAIN ASSEMBLY FOR TANK WITH GREY DRAIN ASSEMBLY 10. Thread grey drain into bottom of tank. 10. Press the drain fitting into the bottom of the tank until it is 11.
  • Page 4 P: 262.238.4400 | F: 262.238.4404 | WWW.PENTAIRAQUA.COM | CUSTOMER CARE: 800.279.9404 All Pentair trademarks and logos are owned by Pentair, Inc. or its affiliates. All other registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
