CARLO GAVAZZI SBPBASEA Manual

Carpark base holder
Hide thumbs

Advertisement

Quick Links

Download this manual

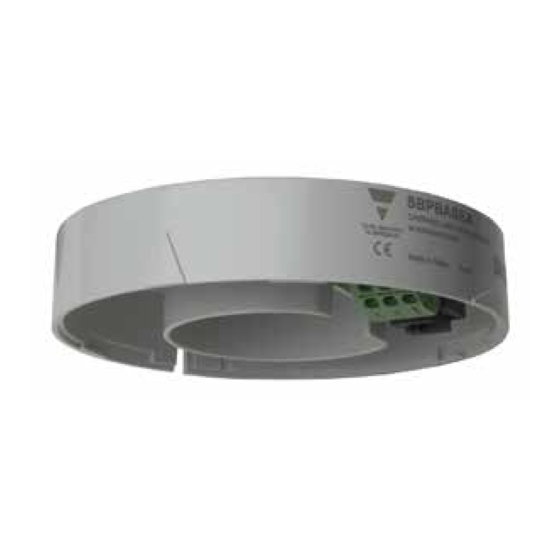

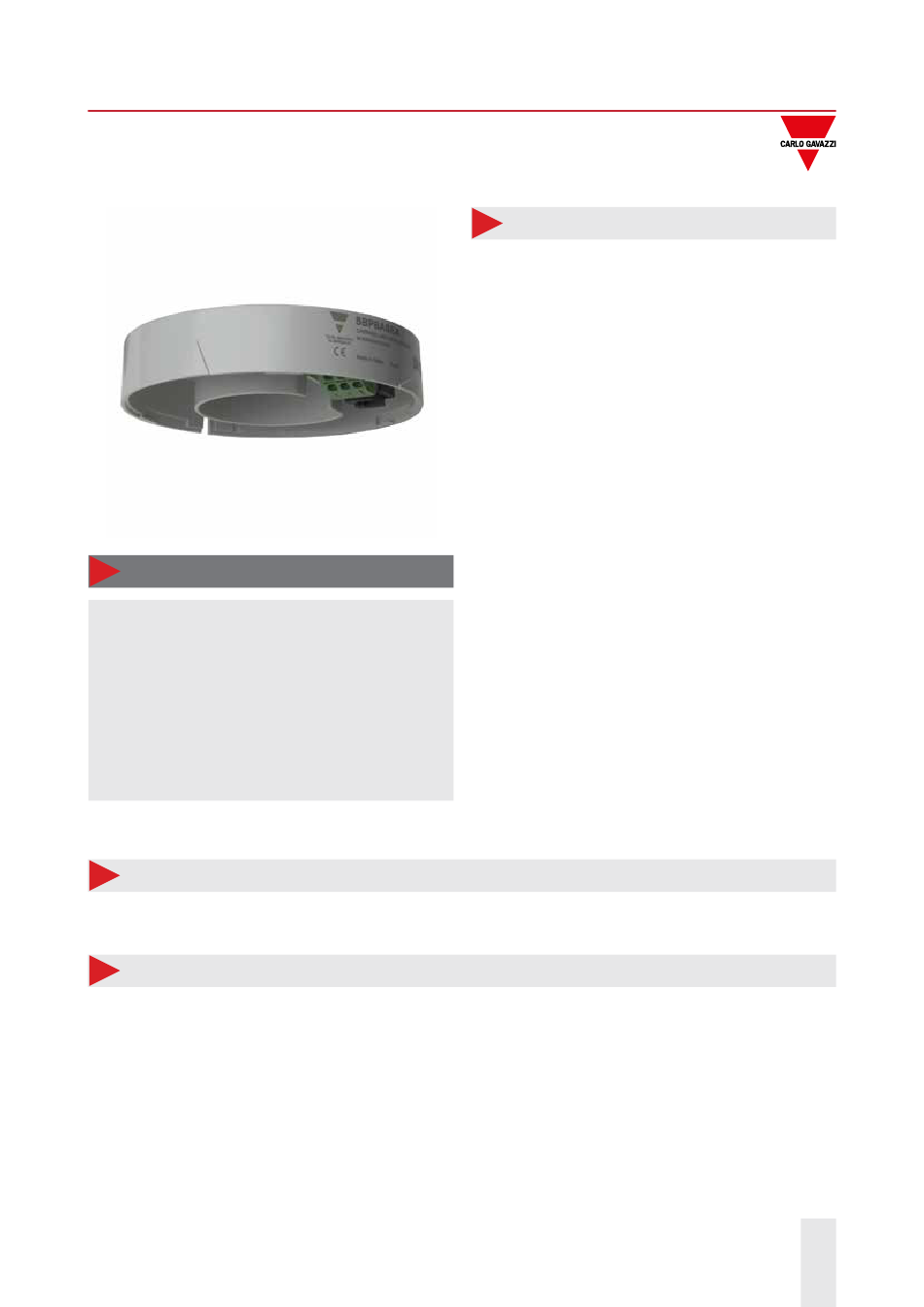

SBPBASEA
Carpark base holder
Description
The SBPBASEA is part of the Dupline
system.
It is a base holder for the SBPSUSxxx sensors and
SBPILED indicator.
The base holder contains the wiring terminals, the
chip with the SIN code and a RJ12 connector for
the sensor / indicator.
It is designed for cable tray and conduit/ pipe
mounting where the wires enter the base holder
from the top.
Applications
Parking Guidance Systems
Main functions
•
Base holder for Dupline
carpark sensors and indicators.
®
15/04/2019
SBPBASEA ENG
Benefits
•
Plug & Play installation
•
One base holder suitable for the SBPSUSxxx sensors
and SBPILED indicator
On board chip with the SIN code and detachable
•
connector for Dupline
Carpark
®
3-wire
®
Carlo Gavazzi Controls S.p.A.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBPBASEA and is the answer not in the manual?

Questions and answers

Related Manuals for CARLO GAVAZZI SBPBASEA

Summary of Contents for CARLO GAVAZZI SBPBASEA

  • Page 1 On board chip with the SIN code and detachable • connector for Dupline 3-wire ® Description The SBPBASEA is part of the Dupline Carpark ® system. It is a base holder for the SBPSUSxxx sensors and SBPILED indicator. The base holder contains the wiring terminals, the chip with the SIN code and a RJ12 connector for the sensor / indicator.
  • Page 2 Wiring terminals (POW, D+, D-) for power supply and communication 2 x 3 PIN connector (Smart Dupline ® It is used to connect the sensor (SBPSUxxx) or indicator (SBPILED) to the base RJ12 female connector holder 15/04/2019 SBPBASEA ENG Carlo Gavazzi Controls S.p.A.
  • Page 3 -40 to 80°C ( -40 to 176°F) Humidity 5-98% Relative humidity Pollution degree 3 (IEC60664) Compatibility and conformity CE-marking Approvals Power Supply Power supply By the Dupline bus via the RJ12 connector ® Communication Protocol Smart-Dupline ® 15/04/2019 SBPBASEA ENG Carlo Gavazzi Controls S.p.A.

  • Page 4: Connection Diagram

    SBPBASEA Connection Diagram SBPILED SBPILED SBPILED 15/04/2019 SBPBASEA ENG Carlo Gavazzi Controls S.p.A.

  • Page 5: Mode Of Operation

    SBPBASEA and the SBPSUSxxx sensors and SBPILED indicator. Installation of the SBPBASEA together with the SBPSUSL45 The SBPBASEA together with the SBPSUSL45 sensor should be placed at a height between 2.2 to 2.4m. The depth of detection is 1.5 m. 1.5 m Fig.
  • Page 6 SBPBASEA Example 1 In this example the SBPBASEA together with the sensor could have been installed closer to the parking bay. The SBPBASEA is wrongly mounted on the left hand of the cable Put the SBPBASEA on the right hand of the cable tray...
  • Page 7 5 cm below the obstacle. The sensor is obstructed by the obstacle Put the SBPBASEA at least 5 cm below the obstacle Example 4 In this example the obstacle (beam) is lower than the sensor and it is too close (< 2.5 m).
  • Page 8 In this example the obstacle is on the side part of the sensor and the distance between them is less than 1 m. Moreover, the thickness of the obstacle is more than 30 cm. The SBPBASEA for conduit/pipe mounting has to be installed to mount the sensor at least 5 cm below the obstacles.
  • Page 9 SBPBASEA Installation of the SBPBASEA together with the SBPSUSL The SBPBASEA together with the SBPSUSL sensor should be placed in the middle of the parking bay at a height between 2.0 to 4.0 m. 0.6 m ÷ 1.2 m Fig. 2 Sensor height and distance...
  • Page 10 In this example the obstacles (beam and conduit) obstruct the sensor and they are too close (< 20 cm). The sensor is obstructed by the lateral obstacles Put the SBPBASEA at least 5 cm below the obstacles Example 8 If there is an obstacle hiding the sensor (which can not be removed) be sure to place the sensor at least 5 cm below it, by using the SBPBASEA together with a pipe.
  • Page 11 In this way, the system is also able to detect the direction of the cars. Example 9 Please refer to the following table to place the two SBPBASEA bases together with the sensors at the proper distance. Sensor Min.
  • Page 12 SBPBASEA Example 11 In a one-way lane larger than the standard (2.5 to 3.25 m), SBPBASEA bases together with the sensors are placed in the middle of the lane: One of the SBPBASEA together with the sensor has been placed...
  • Page 13 SBPSUSLxx sensors. The SBPBASEA bases together with the SBPSUSCNT sensors have been placed at the end of the ramp The SBPSUSCNT sensors work properly if placed in the middle of the ramp...
  • Page 14 When mounting the SBPSUSxxx sensor on the ceiling, the sensor must be installed at an angle of maximum ± 5 degrees deviation from the ceiling surface. Mount the SBPBASEA and the sensor (SBPSUSL45 only) with a maximum horizontal deviation of ±2 degree to have the best performance in terms of signal reliability.
  • Page 15 Troubleshooting www.productselection.net/MANUALS/UK/troubleshooting_guide.pdf guide guide Installation manual IM_SBPBASEA www.productselection.net/MANUALS/UK/IM_SBPBASEA.pdf Order code SBPBASEA Note: The base is delivered without a sensor. Please order it separately. CARLO GAVAZZI compatible components Purpose Component name/code Notes Controller UWP30RSEXXX Bus generator SBP2MCG324 Lane sensor SBPSUSL45 Vertical sensor...
