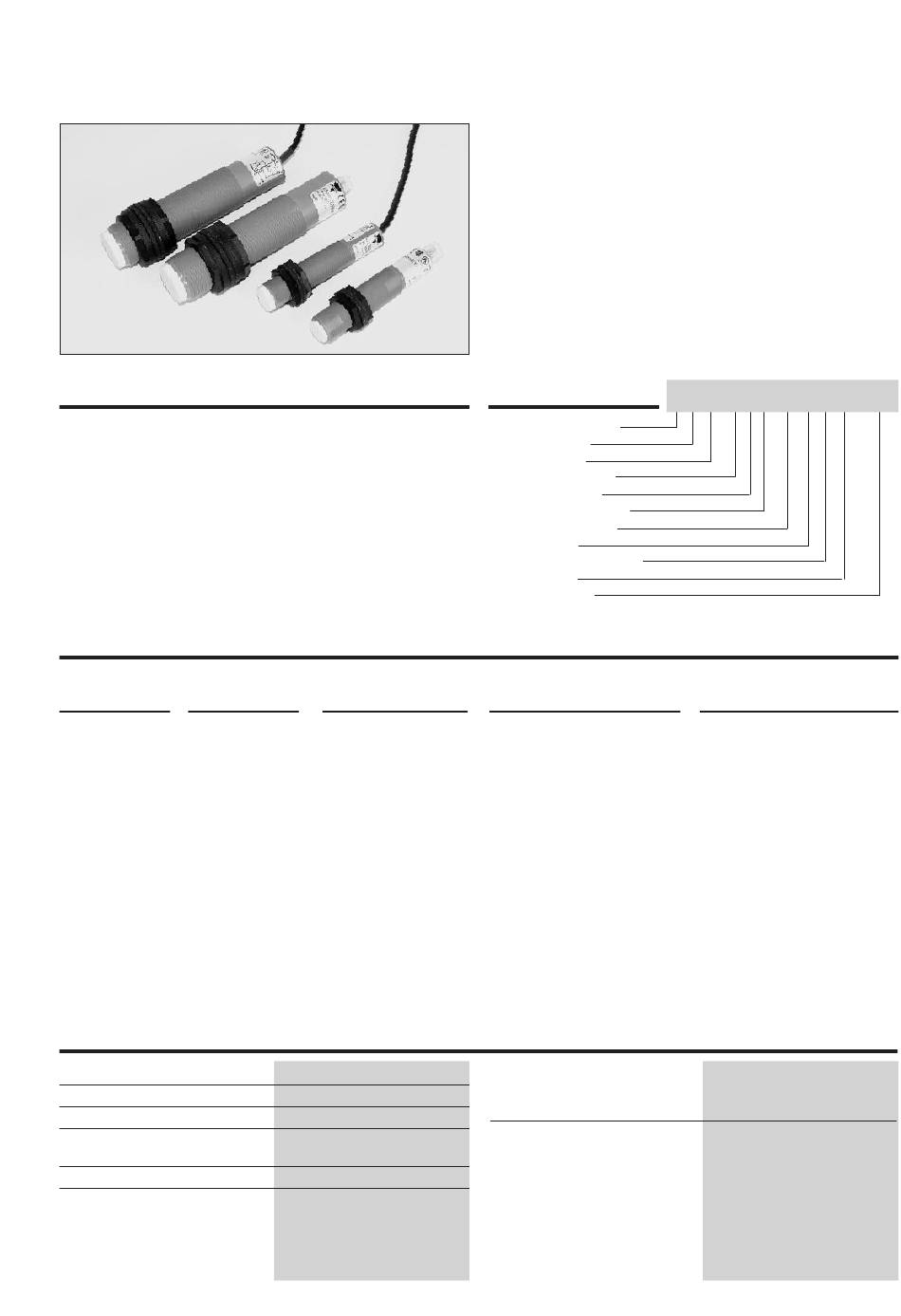

CARLO GAVAZZI M18 Series Product Description

Ultrasonic
Diffuse, Analogue Output
Type M18 and M30

Product Description

A family of multi function dif-
fuse ultrasonic sensors with
a sensing range of 60 to
3500 mm. The analog output
is easily set up in 2 setpoints
(pos./neg. slope) and adjust-
ed by teach-in - makes it
ideal for level control tasks in
a wide variety of vessels. A
sturdy one-piece PBT
housing provides the perfect

Type Selection

Housing Connection
Dimensions
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M18 x 93 mm Plug M12, 5 pin
M18 x 93 mm Cable
M30 x 125 mm Plug M12, 5 pin
M30 x 123.5 mm Cable
M30 x 125 mm Plug M12, 5 pin
M30 x 123.5 mm Cable

Technical Data

Rated operational volt. (Ue)
Ripple
No-load supply current (Io)
Protection
Rated insulation voltage
Power-on delay
UA18..D05/D08
UA18..D20
UA18..D35
Specifications are subject to change without notice (06.08.2008)
packaging for the sofisticat-
ed microprocessor con-
trolled and digitally filtered
sensor electronics. Excellent
EMC performance and pre-
cision are typical features of
this sensor based on true
distance measurement.
Rated operating
dist. (S )
n
60-500 mm
60-500 mm
60-500 mm
60-500 mm
100-800 mm
100-800 mm
100-800 mm
100-800 mm
200-2000 mm
200-2000 mm
200-2000 mm
200-2000 mm
300-3500 mm
300-3500 mm
300-3500 mm
300-3500 mm
15 to 30 VDC (ripple included)
≤ 10%
≤ 40 mA
Short-circuit, transients and
reverse polarity
> 1 kV
60 ms
90 ms
220 ms
• M18 and M30 PBT housing
• Sensing distance: 60 - 3500 mm
• Remote Teach by wire
• Outputs: Analog 0-10 V or 4-20 mA
• Setup of positive or negative slope
• Power supply: 15 to 30 VDC
• 8° beam angle
• Protection: Short-circuit, reverse polarity, transients
• Protection degree IP 67
• M12 plug, 5 pin
Ordering Key
Ultrasonic sensor
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
Connection
Remote teach
Outputs
0-10 V
0-10 V
4-20 mA
4-20 mA
0-10 V
0-10 V
4-20 mA
4-20 mA
0-10 V
0-10 V
4-20 mA
4-20 mA
0-10 V
0-10 V
4-20 mA
4-20 mA
Output
UA..CLD..AK..
UA..CLD..AG..
Output slope
UA18CLD20AKM1TR
Ordering no.
UA18CLD05AKM1TR
UA18CLD05AKTR
UA18CLD05AGM1TR
UA18CLD05AGTR
UA18CLD08AKM1TR
UA18CLD08AKTR
UA18CLD08AGM1TR
UA18CLD08AGTR
UA18CLD20AKM1TR
UA18CLD20AKTR
UA18CLD20AGM1TR
UA18CLD20AGTR
UA30CLD35AKM1TR
UA30CLD35AKTR
UA30CLD35AGM1TR
UA30CLD35AGTR
0-10 VDC
4-20 mA
Positive or negative
Setup via teach-in
1
