Syslog/Mail Alert - Draytek Vigor 5510Gi User Manual

Click Browse button to choose the correct configuration file for uploading to the
2.
router.

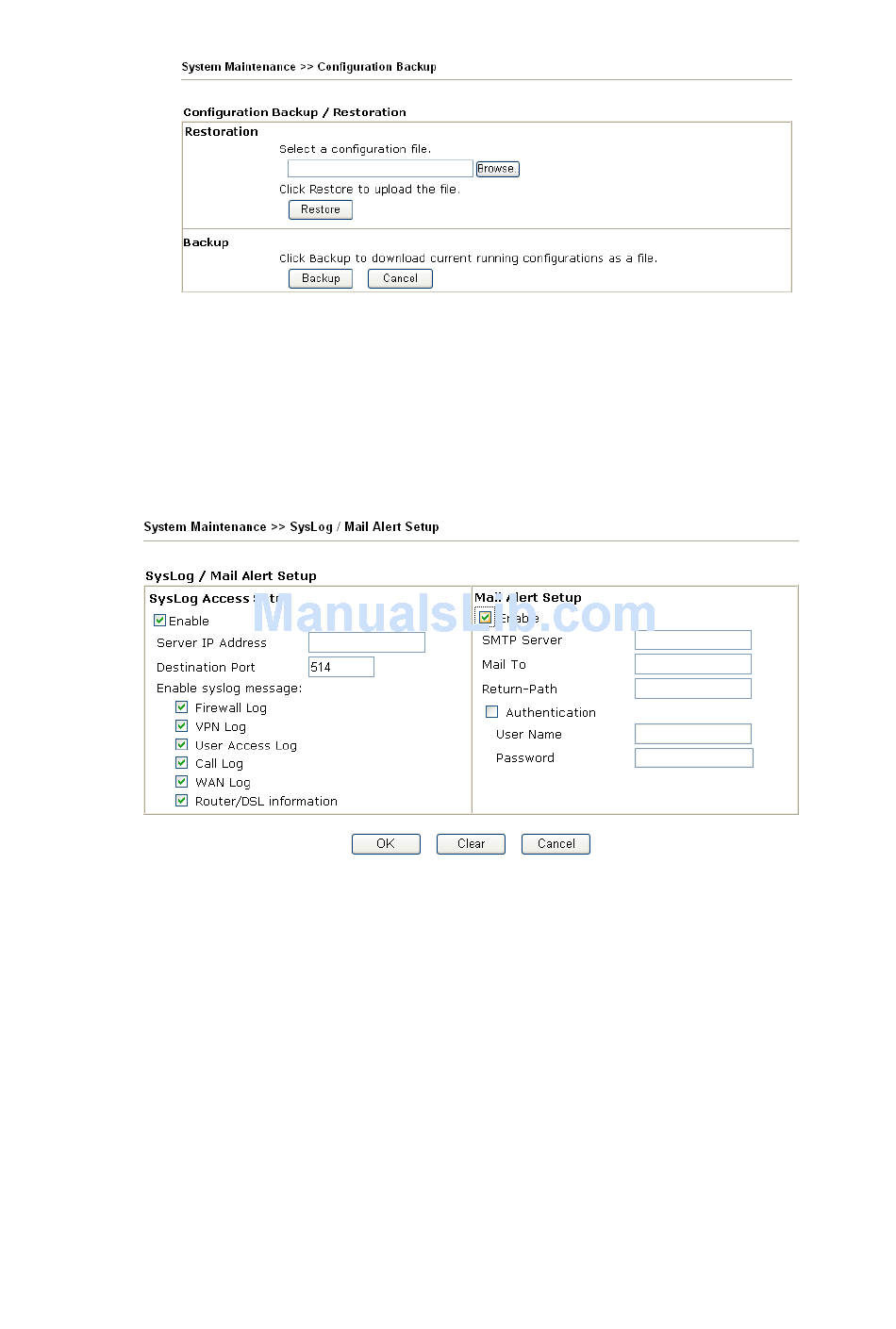

Click Restore button and wait for few seconds, the following picture will tell you that
3.
the restoration procedure is successful.
3 . 1 3 . 4 S y s l o g
3 . 1 3 . 4 S y s l o g
SysLog function is provided for users to monitor router. There is no bother to directly get
into the Web Configurator of the router or borrow debug equipments.
Enable
Syslog Server IP
Destination Port
Enable syslog message
SMTP Server
Mail To
Return-Path
Authentication
User Name
Password
138
/ M a i l A l e r t
/ M a i l A l e r t
Click "Enable" to activate this function.
The IP address of the Syslog server.
Assign a port for the Syslog protocol.
Check the box listed on this web page to send the
corresponding message of firewall, VPN, User Access, Call,
WAN, Router/DSL information to Syslog.
The IP address of the SMTP server.
Assign a mail address for sending mails out.
Assign a path for receiving the mail from outside.
Check this box to activate this function while using e-mail
application.
Type the user name for authentication.
Type the password for authentication.
VigorPro5510 Series User's Guide
