Configuring a RED-1 from its configuration menu

This article explains how to configure the

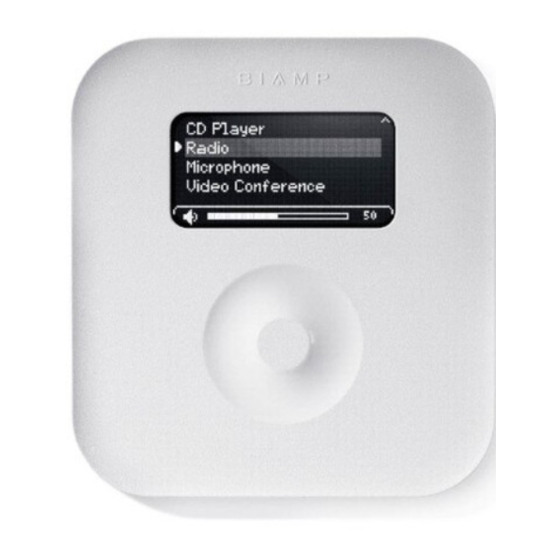

RED-1 remote

controller, from the remote's own configuration menu.

Accessing the configuration menu

An on board configuration menu can be enabled by briefly shorting the two pins of the "locksmith" header found in the

bottom right corner of the printed circuit board.

For the RED-1 remote controller to communicate with the corresponding block in an Audia/Nexia system, the ID of the

remote must match that of the corresponding block. Multiple remotes can have the same ID as a single block in the

Audia/Nexia configuration. To name the unit, scroll to the ID tag icon and press the select button. Then, use the scroll

and select buttons to choose and set the desired characters.

The default network settings of the RED-1 controller allows it to be discovered by an Audia or Nexia device that also has

default settings. To edit the network settings, scroll to the network icon and press the select button. From there, you can

navigate to each individual parameter and edit as needed.

http://support.biamp.com/

Table of Contents

Do you have a question about the RED-1 and is the answer not in the manual?

Page 1 Edit network settings The default network settings of the RED-1 controller allows it to be discovered by an Audia or Nexia device that also has default settings. To edit the network settings, scroll to the network icon and press the select button. From there, you can navigate to each individual parameter and edit as needed.
Page 2 Edit lock code The RED-1 can be set to automatically lock after a certain amount of time or after the select button is pressed for over 2 seconds. Once locked, users will be prompted to enter the lock code to operate the remote. To set the lock code, scroll to the key icon and press the select button.
Page 3 Audia/Nexia software. To view information about the unit, scroll to the information icon and press the select button. Press the select button again to exit this window. Exit To exit the setup screen, scroll to the exit door icon and press the Select button. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
