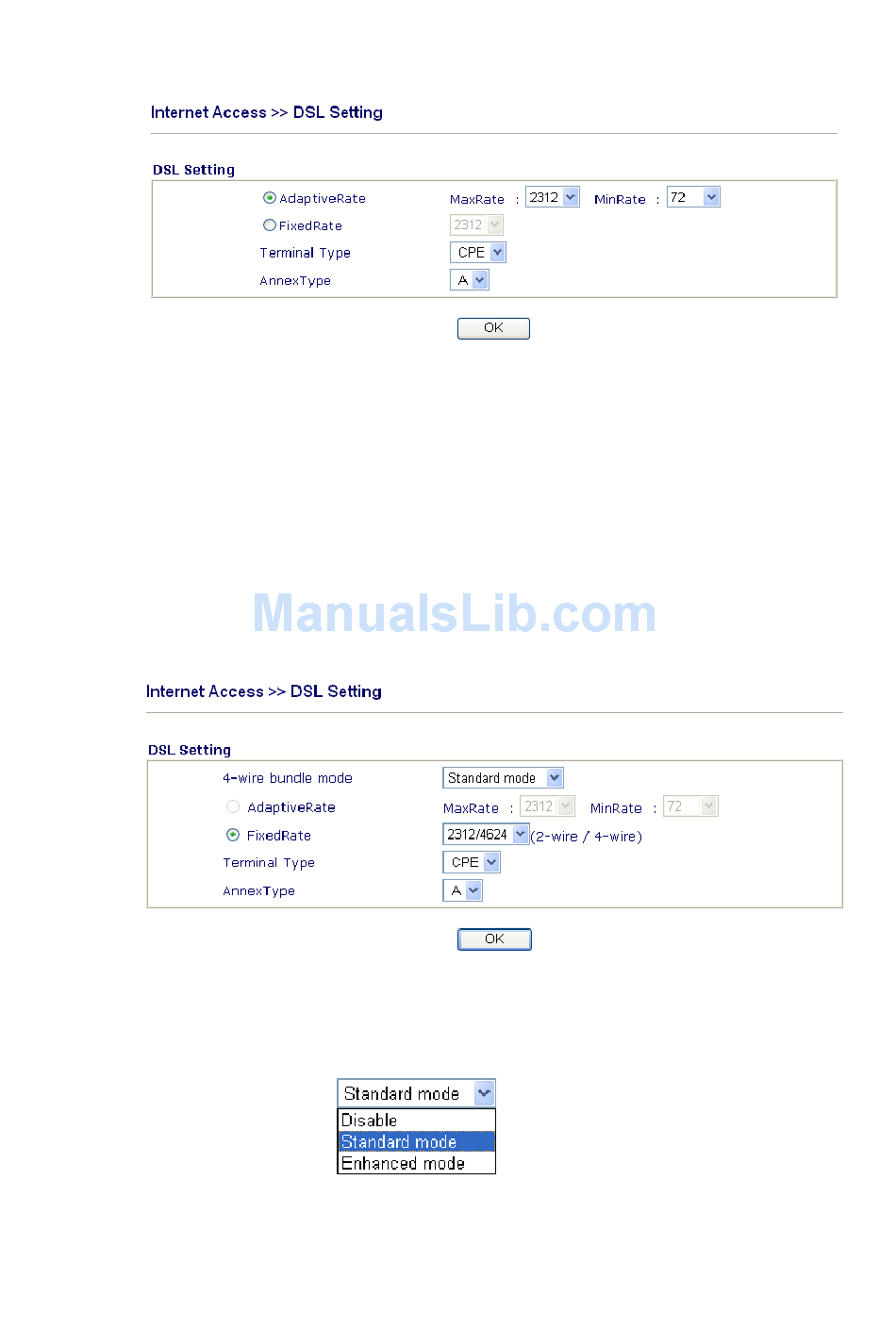

Below shows settings for Vigor3100/Vigor3100G/Vigor3100i.
AdaptiveRate
MaxRate
MinRate
FixedRate
Terminal Type
Annex Type
Vigor3120 offers different DSL settings with Vigor 3100 and Vigor3100G due to its
feature of 4-wire bundle mode.
4-wire bundle mode
Vigor3100 Series User's Guide
Set the connection rate for the network.
Select the maximum rate for this setting. Use the drop down list to
select the one that suits your router. The default value is 2312.
Select the minimum rate for this setting. Use the drop down list to
select the one that suits your router. The default value is 72.
If you select this one, only the fixed value is useful.
Determine the role of this device as a CPE or CO.
Choose the correct annex type (A or B) for your router.
To have wider bandwidth in network transmission, please choose
proper mode in this field. Basically, you can just select the proper
one according to the mode that your ISP provides. And you can set
FixedRate setting only if you select Standard mode or Enhanced
mode here.
Enhanced mode allows network connection via 2-wire instead if
connection via 4-wire fails.
35
