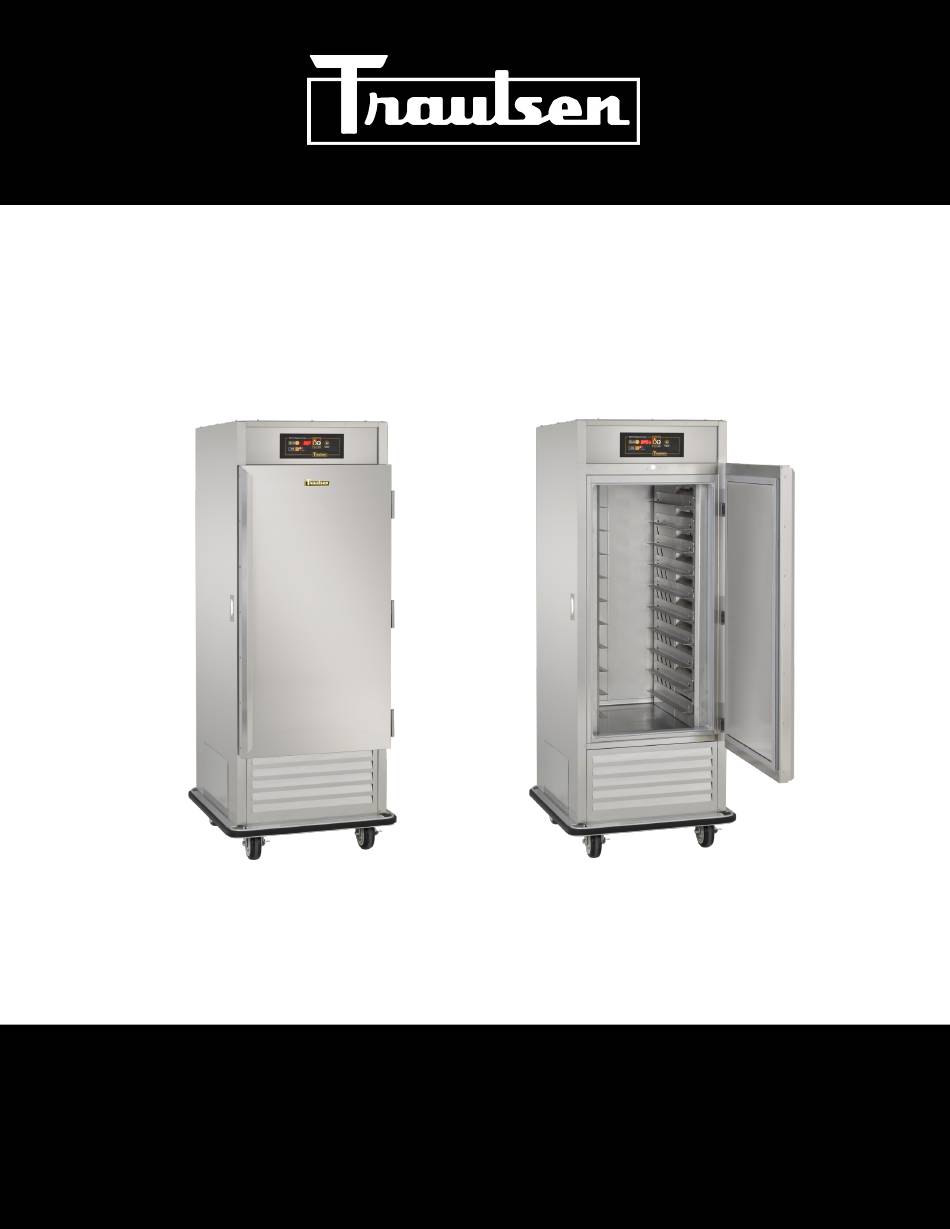

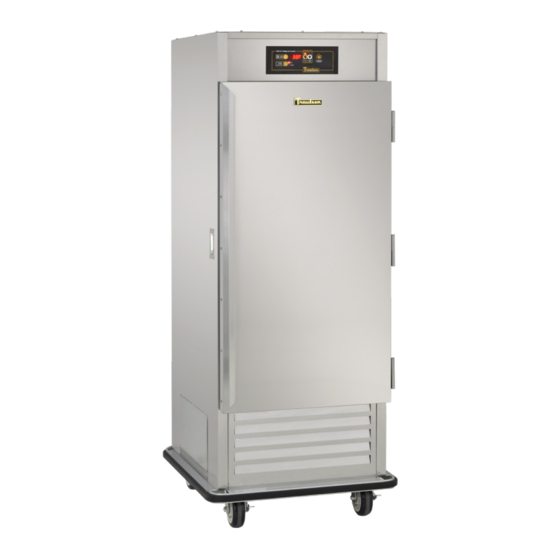

- Page 1 RA C-SE RIE S AIR C UR TA IN R EFR IGE RATO R 4401 Blue Mound Road Fort Worth, Texas 76106 (USA) Phone: 800.825.8220 | Service Fax: 817.740.6757 | E-mail: service@traulsen.com | Website: traulsen.com Hours Of Operation: Monday - Friday 7:30 a.m. - 4:30 p.m. (CST)
-
Page 2: Table Of Contents
This Traulsen unit is built to our highest quality standards. We build our refrigerators this way as a matter of pride. This philosophy has made Traulsen the leader in commercial refrigeration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know you will receive many years of utility from this equipment. -
Page 3: The Serial Tag
1A – SERIAL TAG & LOCATION: The serial tag is a permanently affixed label on which is recorded vital electrical and refrigeration data about your Traulsen product, as well as the model and serial number. The serial tag is located near the power cable, when facing the control (front of unit) it is located in the exterior left side wall in the upper left corner of the of the unit. -
Page 4: B Packaging
3C - CLEARANCE: It is important for the proper operation and longevity of your Traulsen unit that it have adequate provisions for air supply to the compressor. Allow approximately 6” - 12” between the back grill of the unit and the wall for proper air flow. -
Page 5: B Typical Operating Parameters
4C - SUGGESTED PAN SIZING: Traulsen has designed this unit to operate with 18” x 26” (46 x 66 cm) trays. Ten (10) pair of removable tray slides are pro- vided at a fixed 4-1/4” (10.8 cm) specific spacing to assure proper air-flow and maximum performance. -
Page 6: E Condensate Evaporator
6A - CONTROL OVERVIEW: The Traulsen Air Curtain models are supplied standard with an easy to use microprocessor control. It features several im- portant user functions, greatly enhancing the overall utility of the cabinet. The Traulsen RAC-37 is the only two-stage (two temperature settings) Air Curtain currently available on the market. -
Page 7: Open Door
IMPORTANT NOTE: Perishable product left in the unit past the 120 minute open door session may be at unsafe temperatures. RAC SERIES Page 7... -
Page 8: Electronic Controller
This reduces the effectiveness of the overall operation of the unit. To prevent the build-up of ice on the coil, Traulsen has included an “On-Demand” defrost feature. To initiate an on-demand defrost, simply press the ON- DEMAND DEFROST button. Use this feature once a day or as needed to achieve proper performance. -
Page 9: Care & Maintenance
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PARTS ON THE UNIT. The most important thing you can do to insure a long, reliable service life for your Traulsen is to regularly clean the con- denser coil. The condensing unit requires regularly scheduled cleaning to keep the finned condenser clean of lint and dust accumulation. -
Page 10: B Spare Parts
10C - WARRANTY REGISTRATION: For your convenience, the warranties on your new Traulsen unit may be registered with us by one of two methods. Com- pleting the enclosed warranty card (shipped with the unit), or by filling out the on-line warranty registration form located on the MENU/SERVICE TAB on our website: www.traulsen.com... -
Page 11: B Helpful Hints For Top Performance
2. Push pans and trays all the way back to rear wall. 3. Unload cabinet from top to bottom and keep empty trays in position for best performance. 4. Defrost unit daily or after each prolonged usage. RAC SERIES Page 11... -
Page 12: Wiring Diagram
12. WIRING DIAGRAM RAC SERIES Page 12... -
Page 13: Warranties
TRAULSEN’S standard warranty does not apply to Export Sales. Rather, for a period of one (1) year from date of original installation not to exceed Fifteen (15) months from date of shipment from factory, TRAULSEN: Will replace, F.O.B. - Page 14 NOTES:...
