SECTION « A » DESCRIPTION
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to cook your favorite pizza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distances to respect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instruction and operation of the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front control panel symbol description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For more information, please call our office: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION « B » DIMENSIONS
PIZ3G FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G GAS SIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G ELECTRICAL SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G BACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G GAS SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G ELECTRICAL SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G BACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION « C » BURNER AJUSTMENTS
PIZ3G NATUREL .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G PROPANE .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G NATUREL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G PROPANE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION « E » COMPONENT PARTS
PIZ3G FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ3G BACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIZ6G BACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

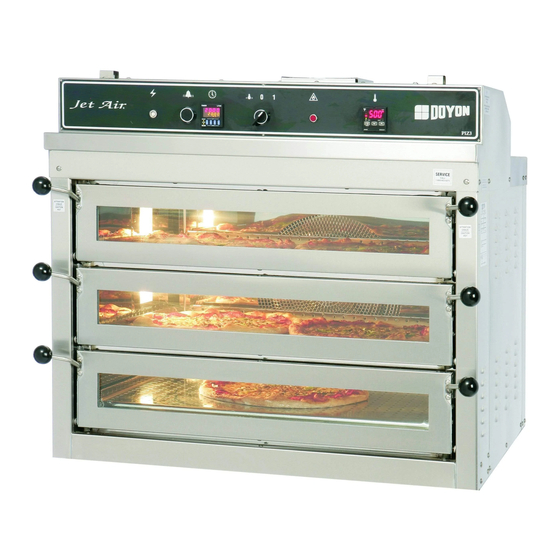

PIZ3G & PIZ6G
GAS FIRED DECK OVENS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
PAGE
A1
A2
A4
A4
A5
A7
A8
A10
A13
A15
A16
B1
B2
B3
B4
B5
B6
B7
B8
C1
C2
C3
C4
E1
E3
E5
E7
E9
E11
Advertisement
Table of Contents
Related Manuals for Doyon PIZ3G
Summary of Contents for Doyon PIZ3G
- Page 1 PIZ3G ELECTRICAL SIDE ........
- Page 2 PIZ6G - 220V/1PH/50 Hz ..........PIZ3G - 120V/1PH/60Hz & 208-240V/1PH/60Hz ......
-
Page 3: Introduction
Proper installation and maintenance will guarantee a reliable service for years to come. A nameplate fixed to the front or right side of the oven specifies the model number, type of combustible, BTU rating, operating pressure, serial number, voltage and amperage. -
Page 4: How To Cook Your Favorite Pizza
If you cook your pizza in a pan or on a screen, the bottom crust will not bake properly. If you use them, remove the pizza from the pan or the screen after 3 minutes and finish baking it directly on the oven deck. Oven baking instructions: •... - Page 5 Cleaning: We recommend to clean the oven every day. 1) Remove the lower shelf and clean the bottom of the oven with dry cloth and cleaner supplied with the oven. 2) Glass doors: During working hours, clean glass with dry cloth (paper towel). At the end of the day, clean with glass cleaner (Windex and paper towel).
-
Page 6: Construction
CONSTRUCTION You just bought the most advanced gas fired oven in the world, "DOYON" technology at its best. This gas fired oven is manufactured using the highest quality components and material. The oven gives a perfect uniform baking with its unique Jet Air convection system. The DOYON gas fired oven is designed with parts that are easy to find. -
Page 7: Installation Warnings
INSTALLATION WARNINGS The DOYON gas fired ovens are designed to be used with the gas specified on the descriptive nameplate. Refer to National Fuel Gas Code, ANSI-Z223.1 and CAN/CGA.B149. Copies of these are available at: American Gas Association, 1515 Wilson Boulevard, Arlington, Virginia, 22209. - Page 8 The ovens must be installed with a proper ventilation like: • under a exhaust vent hood; • or connected directly to the oven draft hood with a B vent flue pipe chimney. A type B gas vent approved for use with gas appliances must be utilized.
-
Page 9: Distances To Respect
Back of the oven: 1 inches. Top of the oven: a clearance of 12 inches to the ceiling must exist to permit adequate venting of the exhaust pipe and hot parts and to give proper access to a technician. The draft hood must have a clearance of 2 inches minimum all around. -
Page 10: Installation
1. To the certified gas technician The burner installed on DOYON gas fired ovens is set up and adjusted at the plant for a first class operation. It is nevertheless necessary to verify on site the pressure at the burner input. - Page 11 Quick-disconnect devices for use with gas fuel ANSI Z21.41 and addenda Z21.41a and Z21.41b. It must also be installed with restraining (chain that came with the oven) to guard against transmission of strain to the connector. The pipe fittings compound must be certified for gas.
-
Page 12: Instruction And Operation Of The Oven
• PIZ3G only The yellow light few seconds (it indicates that every starting condition is present) • PIZ3G only the blower starts and the burner fires if the thermostat is adjusted over the ambient temperature (the green light "BURNER" indicates that the burner is fired) (If nothing happened, press the breakers 4. -
Page 13: Cooking Timer
The Omron E5CS thermostat controls the heat of every element at the SP (set point). The temperature of the oven is always shown on the display of the thermostat and an arrow indicates if the temperature is over or below the SP. When the green light is lit, it indicates that the temperature is at the SP ±... - Page 14 Cooking timer On / off cooking timer switch Breaker Temperature control Main power oven switch (0 = OFF, 1 = ON, bulb sign = Oven light ON only) Overheat alarm Burner operation indicator green light Air proving switch indicator yellow light.
-
Page 15: Troubleshooting
BEFORE CALLING FOR SERVICE Remove the hood control panel of the oven by screwing out the screws. Pull the oven and screw out of the back panels. Check the breakers on the front panel. Check the breakers of the building. - Page 16 If the oven is baking too much on the sides, it is possible that the fan is not cycling properly. Verify if the motor turns 2.5 minutes in a direction, stops 30 seconds and starts for 2.5...
-
Page 17: Oven Maintenance And Cleaning
4. Verify the burner input pressure. 5. Verify every adjustments. 6. Clean every moving pieces. PIZ6G Step by step Clean the inside of the oven with water and soap. Take out the grills (the grills of the oven could be cleaned with "Easy-Off"). -
Page 18: For More Information, Please Contact Our Office
FOR MORE INFORMATION, PLEASE CONTACT OUR OFFICE: DOYON EQUIPMENT INC. 1255, rue Principale Linière, Qc, Canada G0M 1J0 Tel. : 1 (418) 685-3431 Canada : 1 (800) 463-1636 U.S. : 1 (800) 463-4273 FAX : 1 (418) 685-3948 Internet: http://www.doyon.qc.ca E-Mail : doyon@doyon.qc.ca... - Page 19 SECTION DIMENSIONS...
- Page 20 PIZ3G PIZ3G...
- Page 21 PIZ3G PIZ3G...
- Page 22 PIZ3G PIZ3G...
- Page 23 PIZ3G PIZ3G...
- Page 24 PIZ6G PIZ6G...
- Page 25 PIZ6G PIZ6G...
- Page 26 PIZ6G PIZ6G...
- Page 27 PIZ6G PIZ6G...
-
Page 28: Burner Adjustments
SECTION BURNER ADJUSTMENTS... - Page 29 ADJUSTMENT BURNER PIZ3G NATURAL GAS PIZ3G−N...
- Page 30 ADJUSTMENT BURNER PIZ3G PROPAN GAS PIZ3G−P...
- Page 31 ADJUSTMENT BURNER PIZ6G NATURAL GAS PIZ6G−N...
-
Page 33: Component Parts
SECTION COMPONENT PARTS... - Page 35 Item Part Number P3106F PIZ-3 DOOR 31 1/8 x 6 3/8 AND QUE100 FIBERGLASS DOOR GASKET(12` LONG) AND STS220 BOTTOM DOOR SEAL FOR PIZ3(STAINLESS) ELB096 5A BREAKER(FOR 120V ET 240V MODEL ONLY) AND ELB099 15A BREAKER(FOR 120V AND 240V MODEL ONLY) ELM616 ELECTRONIC TIMER AND ELM629...
- Page 37 RIGHT BOTTOM DOOR WEIGHT FOR PIZ3 OVEN (S/N:UNDER 3000) 40000030 STOPPER 3/4" FOR DOOR WEIGHT FOR PIZ3 AND PIZ6 PAP100 RUBBER 3/4" DIAM x 1/2"(FOR PIZ OVEN WITH S/N:UNDER 3000) ELT725 TRANSFORMER 240/120 250VA(NOT FOR 120 VOLTS) ELT715 TRANSFORMER 240>120 100VA(NOT FOR 120 VOLTS)
- Page 39 ELT680 THERMOSTAT 700°F AND ELT681 THERMOSTAT KNOB 700°F AND ELT620 THERMOSTAT BEZEL ELM820ML MOTOR 3 PH. .75 HP. 6 1/4 INCHES SHAFT. GAP300 PRESSURE SWITCH DWYER GAD200P3 PIZ3G FLAME DETECTION ROD Model : PIZ3 GAZ Description Quantity View : BACK...
- Page 41 Item Part Number P4107F PIZ-6 DOOR 41 1/2" X 7 1/8" AND QUE100 FIBERGLASS DOOR GASKET(15` LONG) AND STS230 BOTTOM DOOR SEAL FOR PIZ6(STAINLESS) ELB096 5A BREAKER(FOR 120V ET 240V MODEL ONLY) AND ELB099 15A BREAKER(FOR 120V AND 240V MODEL ONLY) ELM616 ELECTRONIC TIMER AND ELM629...
- Page 43 AND STKP06BR RIGHT BOTTOM DOOR WEIGHT FOR PIZ6 OVEN 40000030 STOPPER 3/4" FOR DOOR WEIGHT FOR PIZ3 AND PIZ6 PAP100 RUBBER 3/4" DIAM x 1/2"(FOR PIZ OVEN WITH S/N:UNDER 3000) ELT715 TRANSFORMER 240>120 100VA Model : PIZ6 GAZ Description Quantity...
- Page 45 THERMOSTAT BEZEL ELM800ML MOTOR 1 PH. 3/4 HP. 6 1/4 INCHES SHAFT. ELM820ML MOTOR 3 PH. .75 HP. 6 1/4 INCHES SHAFT. GAP300 PRESSURE SWITCH DWYER GAD200P3 PIZ3G FLAME DETECTION ROD Model : PIZ6 GAZ Description Quantity View : BACK...
-
Page 46: Control Panels
SECTION CONTROL PANELS... - Page 47 PIZ6G 120 VOLTS 1 PHASE G:\ACAD10\PANNEAU\FAMPIZ\P120SP6G.dft...
- Page 48 PRESET TIMER 25SEC. OFF - 150SEC. ON ELO100 OVERLOAD 7 TO 10 Amps. ELO125 OVERLOAD BASE RELAY TÉLÉMÉCANIQUE ELC495 MOTOR REVERSING CONTACTOR 2HP ELB071 TERMINAL BLOCK 2P 175A 1PHASE Model : P120SP6G Description View : INSIDE (See OVEN BACK) Quantity...
- Page 49 PIZ6G 120/208 OR 120/240 VOLTS 1 PHASE G:\ACAD10\PANNEAU\FAMPIZ\P240SP6G.dft...
- Page 50 PRESET TIMER 25SEC. OFF - 150SEC. ON ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS ELO125 OVERLOAD BASE RELAY TÉLÉMÉCANIQUE ELC495 MOTOR REVERSING CONTACTOR 2HP ELB072 TERMINAL BLOCK 3P 175A Model : P240SP6G(240V PIZ-6-G) Description View : INSIDE (See OVEN BACK) Quantity...
- Page 51 PIZ6G 120/208 OR 120/240 VOLTS 3 PHASE G:\ACAD10\PANNEAU\FAMPIZ\P208SP6G.dft...
- Page 52 TERMINAL BLOCK 30A ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS ELC495 MOTOR REVERSING CONTACTOR 2HP ELB071 TERMINAL BLOCK 2P 175A 1PHASE Model : P208SP6G (PIZ6G) Description View : INSIDE (See OVEN BACK) Quantity...
- Page 53 PIZ6G 220 VOLTS 1 PHASE G:\ACAD10\PANNEAU\FAMPIZ\P220SP6G.dft...
- Page 54 PRESET TIMER 25SEC. OFF - 150SEC. ON ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS ELO125 OVERLOAD BASE RELAY TÉLÉMÉCANIQUE ELC495 MOTOR REVERSING CONTACTOR 2HP ELB071 TERMINAL BLOCK 2P 175A 1PHASE ELT715 TRANSFORMER 240>120 100VA Model : P220SP6G (PIZ6G) Description View : INSIDE (See OVEN BACK) Quantity...
- Page 55 PIZ3G 120 OR 240 VOLTS 1 PHASE G:\ACAD10\PANNEAU\FAMPIZ\P120SP3G.dft...
- Page 56 CONTROL RELAY 12A COIL 120V ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON FEV009 INVERTER ATV11HU18F1U (120 volts) FEV001 INVERTER ATV11HU18M2U (240 volts) ELF220 1 PHASE MOTEUR LINE FILTER Model : P120SP3G (PIZ3G & PIZ3GEU) Description View : INSIDE (See OVEN BACK) Quantity...
-
Page 57: Limited Warranty
LIMITED WARRANTY (Continental United States Of America And Canada Only) Doyon Equipment Inc. guarantees to the original purchaser only that its product are free of defects in material and workmanship, under normal use. This warranty does not cover any light bulbs, thermostat calibration or defects due to or resulting...
