System Sensor LASS-WSS-NC Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS

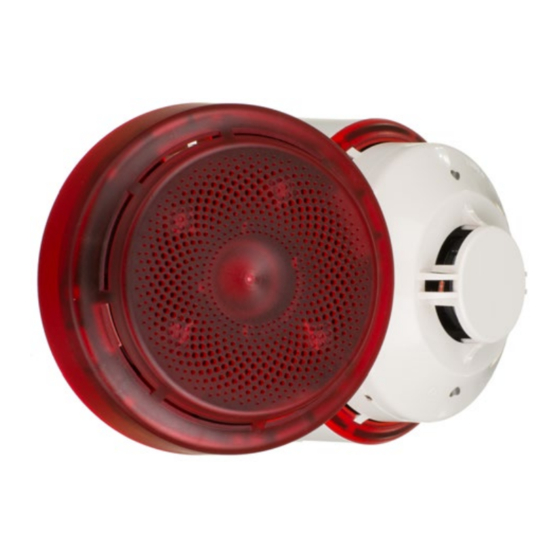

Model LASS-WSS-NC
Addressable Wall Mount Sounder&Strobe
SPECIFICATION
Item
Operating Voltage
Avg. Standby Current
Alarm Current
Operating Temp
Humidity
Ingress Protection
Approved Sound
Pressure Level
High Volume
Low Volume
Tone Type
Flash Pattern
Flash Intensity
Height
Diameter
Weight
Note: * Detailed description see table A
** These volume & tone settings are not approved to EN54-3.
***This ingress protection is not approved to EN54-3.
Meet the following Standards requirements： EN54-3 ，AS ISO 7240.3:2014
B Before installing and using the product, please read the system wiring
and installation manual thoroughly. If the products will be installed in an
existing operational system, inform the operator and local authority that
the system will be temporarily out of service, disconnect power to the
control panel before installing the products.
NOTICE: This manual should be left with the owner/user of this
equipment.
GENERAL
LASS-WSS-NC is an intelligent addressable AV products designed to
alarm light/sound for emergency events, and be able to communicate
with control panel by intelligent protocol.
It is designed specifically for analogue addressable fire alarm system
and only can be connected to control panels with a compatible
proprietary analogue addressable communication protocol. It is
powered from the loop and can be controlled via the communication
protocol(s). The Wall Mount Version is compatible with B501 mounting
base. Up to 99 addresses are available via two rotary selector
switches. The sounders have 2 volume levels (high/low) and 4 tone
sets. The alarm light/sound can be tested on field.
INSTALLATION
It must be installed and wired with B501 mounting base.
1. Verify the product type matches with product drawing.
2. Set the address via two rotary selector switches. Please refer to
"Address setting".
3. Volume and tone setting are realized by 4 digit DIP switch. On field
testing can be tested via DIP switch.
4. Plug the Sounder base into B501 mounting base.
5. Turn the Sounder base clockwise until it drops into place.
6. Continue turning the Sounder base clockwise to lock it in place.
SETTING
Address setting
Rotary-decade switches are provided for setting the base's address
whose range is from 1 to 99. (Default address is 01).
Address is set by turning the switches.
Address is calculated as below formula: Address = TENS *10 +
ONES*1. For instance: Address 05 = 0*10 + 5*1.
Parameter Description
24VDC(15 to 32VDC)
<400µA
<11mA
<8.5mA
-25℃ to +70℃
10 to 95% R.H.
IP33C
IP35(With Water-proof box )
86±4dB(A)
90±4dB(A)
92±3dB(A)
91±5dB(A)
95±5dB(A)
86±3dB(A)
86±4dB(A)
81±3dB(A)
84±6dB(A)
4
2
>1cd
47mm
122mm
176±6g
Tel: (+86) 029 85387800 Fax: (+86) 029 88332959
24VDC, No Communication, No sounding/flashing
High Volume, 24VDC
Low Volume, 24VDC
Non-condensing
Approved to EN54-3
***
1m , High Volume, Tone 21 @24V(5.0mA)
1m , 90°,High Volume, Tone 21 @24V(5.0mA)
1m , 90°,High Volume, Tone 13 @24V(6.0mA)
1m , 90°,High Volume, Tone 12 @24V(5.7mA)
1m , 90°,High Volume, Tone 19 @24V(5.5mA)
1m , 90°,Low Volume, Tone 21 @24V(4.7mA) **
1m , 90°,Low Volume, Tone 13 @24V(5.0mA)
1m , 90°,Low Volume, Tone 12 @24V(4.7mA) **
1m , 90°,Low Volume, Tone 19 @24V(4.7mA) **
See table 1: 'Sound setting ' for detailed tones
See table 2: 'Flash Pattern'
Strobe is not approved to EN54-23
Tamper-resistant capability
Addressable Base sounder include a tamper-resistant capability that
prevents its removal from the B501 base and the removal of installed
detector without the use of a tool.
Figure 1
Figure 2
COMM-
DIP switch for
tone setting
1
Xi'an System Sensor Electronics Ltd.
28 Tuanjie South Road
Xi'an Hi-tech Development Zone
710075, China
Note
*Approved to EN54-3
**
**
**
**
**
B501
Mounting Base
Wall Mount
Sounder&
Strobe
COMM+
RA Remote
Annunciator
ONES
TENS
I56-5925-000
A5665-006
A5665-002
