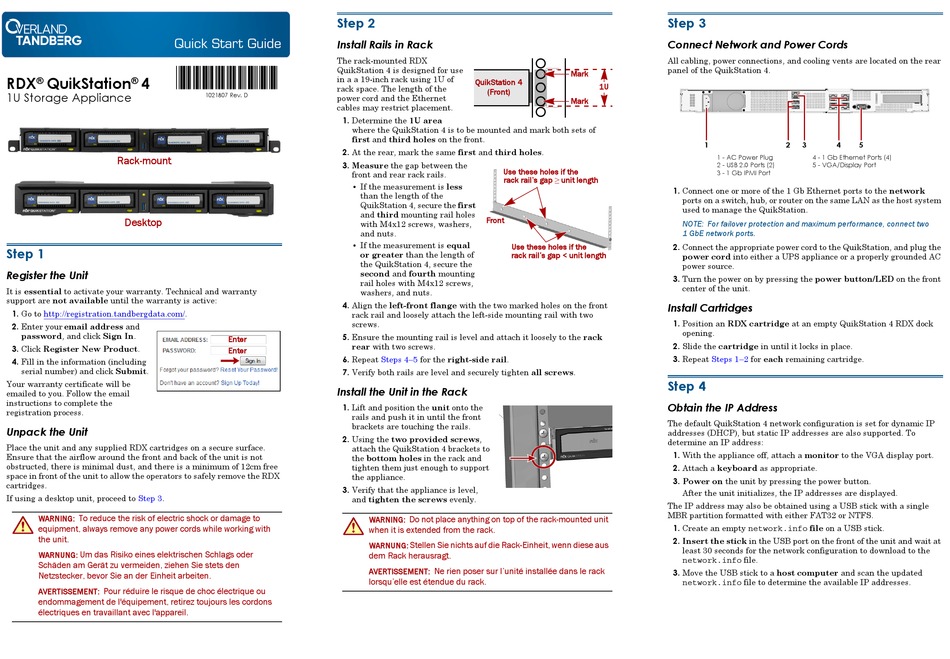

Quick Start Guide

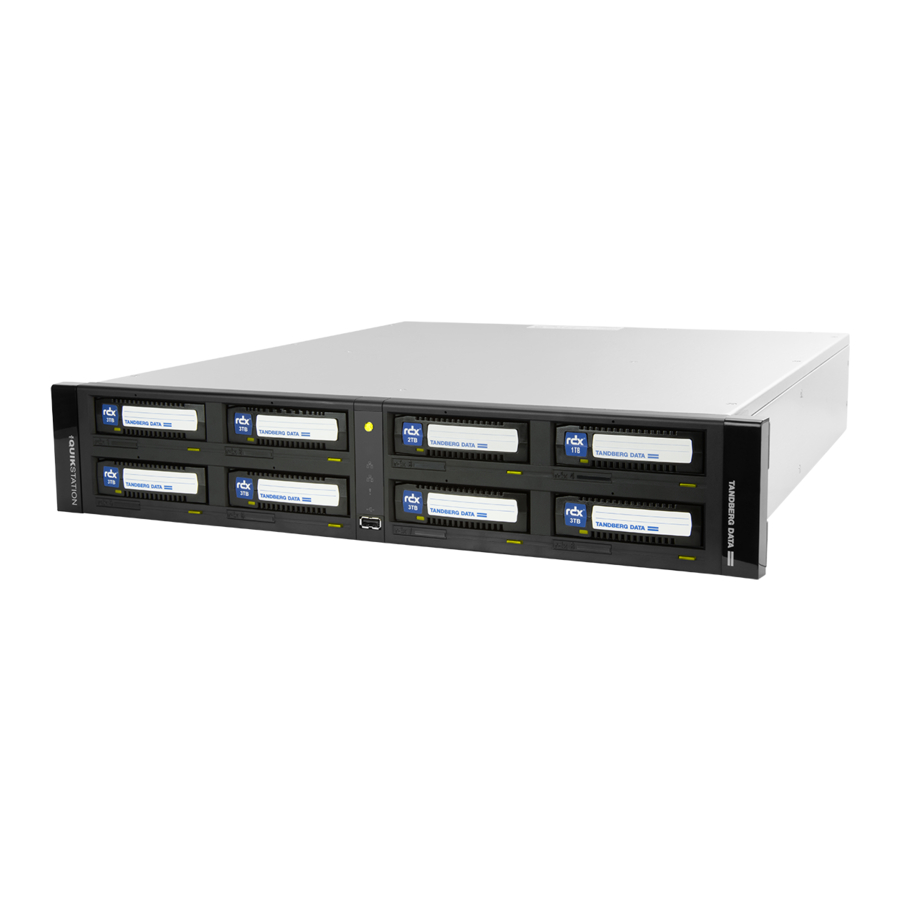

RDX QuikStation 4
® ®
*1021807*
1U Storage Appliance
Rack-mount
Desktop
Step 1

Register the Unit

It is essential to activate your warranty. Technical and warranty
support are not available until the warranty is active:
1. Go to http://registration.tandbergdata.com/.
2. Enter your email address and
password, and click Sign In.
3. Click Register New Product.
4. Fill in the information (including
serial number) and click Submit.
Your warranty certificate will be
emailed to you. Follow the email
instructions to complete the
registration process.

Unpack the Unit

Place the unit and any supplied RDX cartridges on a secure surface.
Ensure that the airflow around the front and back of the unit is not
obstructed, there is minimal dust, and there is a minimum of 12cm free
space in front of the unit to allow the operators to safely remove the RDX
cartridges.
If using a desktop unit, proceed to Step 3.
To reduce the risk of electric shock or damage to
WARNING:
equipment, always remove any power cords while working with
the unit.
WARNUNG: Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
Pour réduire le risque de choc électrique ou
AVERTISSEMENT:
endommagement de l'équipement, retirez toujours les cordons
électriques en travaillant avec l'appareil.
Step 2

Install Rails in Rack

The rack-mounted RDX
QuikStation 4 is designed for use
in a a 19-inch rack using 1U of
rack space. The length of the
1021807 Rev. D
power cord and the Ethernet
cables may restrict placement.
1. Determine the 1U area
where the QuikStation 4 is to be mounted and mark both sets of
first and third holes on the front.
2. At the rear, mark the same first and third holes.
3. Measure the gap between the
front and rear rack rails.
• If the measurement is less
than the length of the
QuikStation 4, secure the first
and third mounting rail holes
with M4x12 screws, washers,
and nuts.
• If the measurement is equal
or greater than the length of
the QuikStation 4, secure the
second and fourth mounting
rail holes with M4x12 screws,
washers, and nuts.
4. Align the left-front flange with the two marked holes on the front
rack rail and loosely attach the left-side mounting rail with two
screws.
5. Ensure the mounting rail is level and attach it loosely to the rack
Enter
rear with two screws.
Enter
6. Repeat
Steps 4–5
7. Verify both rails are level and securely tighten all screws.

Install the Unit in the Rack

1. Lift and position the unit onto the
rails and push it in until the front
brackets are touching the rails.
2. Using the two provided screws,
attach the QuikStation 4 brackets to
the bottom holes in the rack and
tighten them just enough to support
the appliance.
3. Verify that the appliance is level,
and tighten the screws evenly.
WARNING:
when it is extended from the rack.
WARNUNG:
dem Rack herausragt.
AVERTISSEMENT:
lorsqu'elle est étendue du rack.
Mark
QuikStation 4
(Front)
Mark
Use these holes if the
rack rail's gap ≥ unit length
Front
Use these holes if the
rack rail's gap < unit length
for the right-side rail.
Do not place anything on top of the rack-mounted unit
Stellen Sie nichts auf die Rack-Einheit, wenn diese aus
Ne rien poser sur l'unité installée dans le rack
Step 3

Connect Network and Power Cords

All cabling, power connections, and cooling vents are located on the rear
panel of the QuikStation 4.
1U
1
1 - AC Power Plug
2 - USB 2.0 Ports (2)
3 - 1 Gb IPMI Port
1. Connect one or more of the 1 Gb Ethernet ports to the network
ports on a switch, hub, or router on the same LAN as the host system
used to manage the QuikStation.
NOTE: For failover protection and maximum performance, connect two
1 GbE network ports.
2. Connect the appropriate power cord to the QuikStation, and plug the
power cord into either a UPS appliance or a properly grounded AC
power source.
3. Turn the power on by pressing the power button/LED on the front
center of the unit.

Install Cartridges

1. Position an RDX cartridge at an empty QuikStation 4 RDX dock
opening.
2. Slide the cartridge in until it locks in place.
3. Repeat Steps 1–2 for each remaining cartridge.
Step 4

Obtain the IP Address

The default QuikStation 4 network configuration is set for dynamic IP
addresses (DHCP), but static IP addresses are also supported. To
determine an IP address:
1. With the appliance off, attach a monitor to the VGA display port.
2. Attach a keyboard as appropriate.
3. Power on the unit by pressing the power button.
After the unit initializes, the IP addresses are displayed.
The IP address may also be obtained using a USB stick with a single
MBR partition formatted with either FAT32 or NTFS.
1. Create an empty network.info file on a USB stick.
2. Insert the stick in the USB port on the front of the unit and wait at
least 30 seconds for the network configuration to download to the
network.info file.
3. Move the USB stick to a host computer and scan the updated
network.info file to determine the available IP addresses.
2 3 4 5
4 - 1 Gb Ethernet Ports (4)
5 - VGA/Display Port
