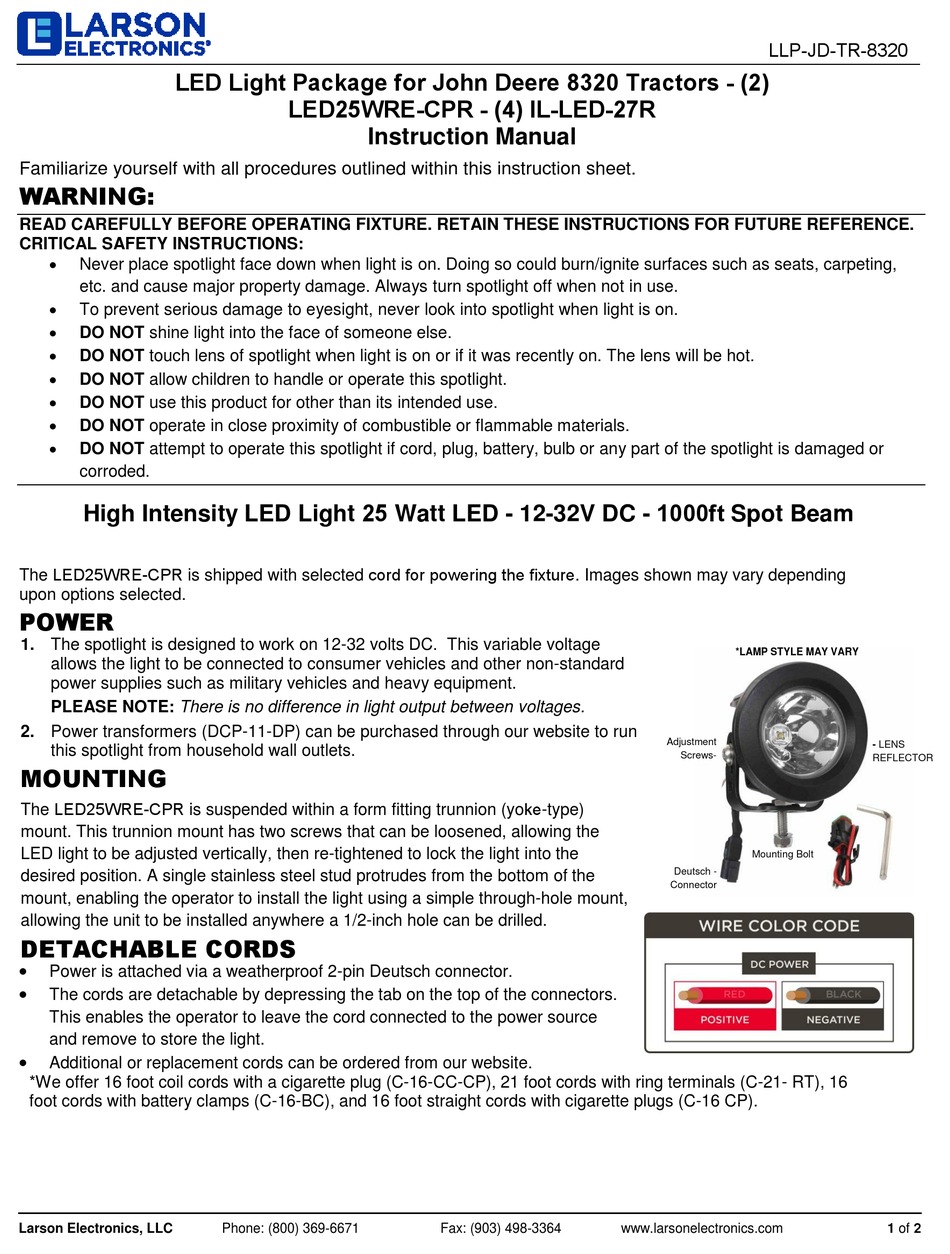

Larson Electronics IL-LED-27R Instruction Manual

LED Light Package for John Deere 8320 Tractors - (2)
Familiarize yourself with all procedures outlined within this instruction sheet.

WARNING:

READ CAREFULLY BEFORE OPERATING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:


Never place spotlight face down when light is on. Doing so could burn/ignite surfaces such as seats, carpeting,
etc. and cause major property damage. Always turn spotlight off when not in use.

To prevent serious damage to eyesight, never look into spotlight when light is on.

DO NOT shine light into the face of someone else.

DO NOT touch lens of spotlight when light is on or if it was recently on. The lens will be hot.

DO NOT allow children to handle or operate this spotlight.

DO NOT use this product for other than its intended use.

DO NOT operate in close proximity of combustible or flammable materials.

DO NOT attempt to operate this spotlight if cord, plug, battery, bulb or any part of the spotlight is damaged or
corroded.

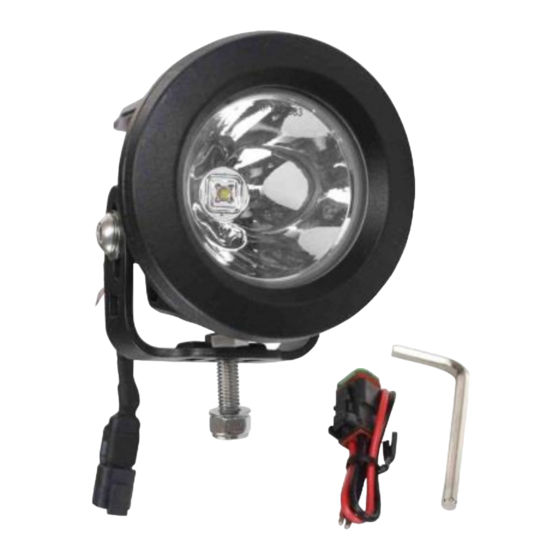

High Intensity LED Light 25 Watt LED - 12-32V DC - 1000ft Spot Beam
The LED25WRE-CPR is shipped with selected cord for powering the fixture. Images shown may vary depending
upon options selected.

POWER

1. The spotlight is designed to work on 12-32 volts DC. This variable voltage
allows the light to be connected to consumer vehicles and other non-standard
power supplies such as military vehicles and heavy equipment.
PLEASE NOTE: There is no difference in light output between voltages.
2. Power transformers (DCP-11-DP) can be purchased through our website to run
this spotlight from household wall outlets.

MOUNTING

The LED25WRE-CPR is suspended within a form fitting trunnion (yoke-type)
mount. This trunnion mount has two screws that can be loosened, allowing the
LED light to be adjusted vertically, then re-tightened to lock the light into the
desired position. A single stainless steel stud protrudes from the bottom of the
mount, enabling the operator to install the light using a simple through-hole mount,
allowing the unit to be installed anywhere a 1/2-inch hole can be drilled.

DETACHABLE CORDS


Power is attached via a weatherproof 2-pin Deutsch connector.

The cords are detachable by depressing the tab on the top of the connectors.
This enables the operator to leave the cord connected to the power source
and remove to store the light.

Additional or replacement cords can be ordered from our website.
*We offer 16 foot coil cords with a cigarette plug (C-16-CC-CP), 21 foot cords with ring terminals (C-21- RT), 16
foot cords with battery clamps (C-16-BC), and 16 foot straight cords with cigarette plugs (C-16 CP).
Larson Electronics, LLC
LED25WRE-CPR - (4) IL-LED-27R
Instruction Manual
Phone: (800) 369-6671 Fax: (903) 498-3364
LLP-JD-TR-8320
*LAMP STYLE MAY VARY
Adjustment
Screws-
Mounting Bolt
Deutsch -
Connector
www.larsonelectronics.com
- LENS
REFLECTOR
1 of 2
