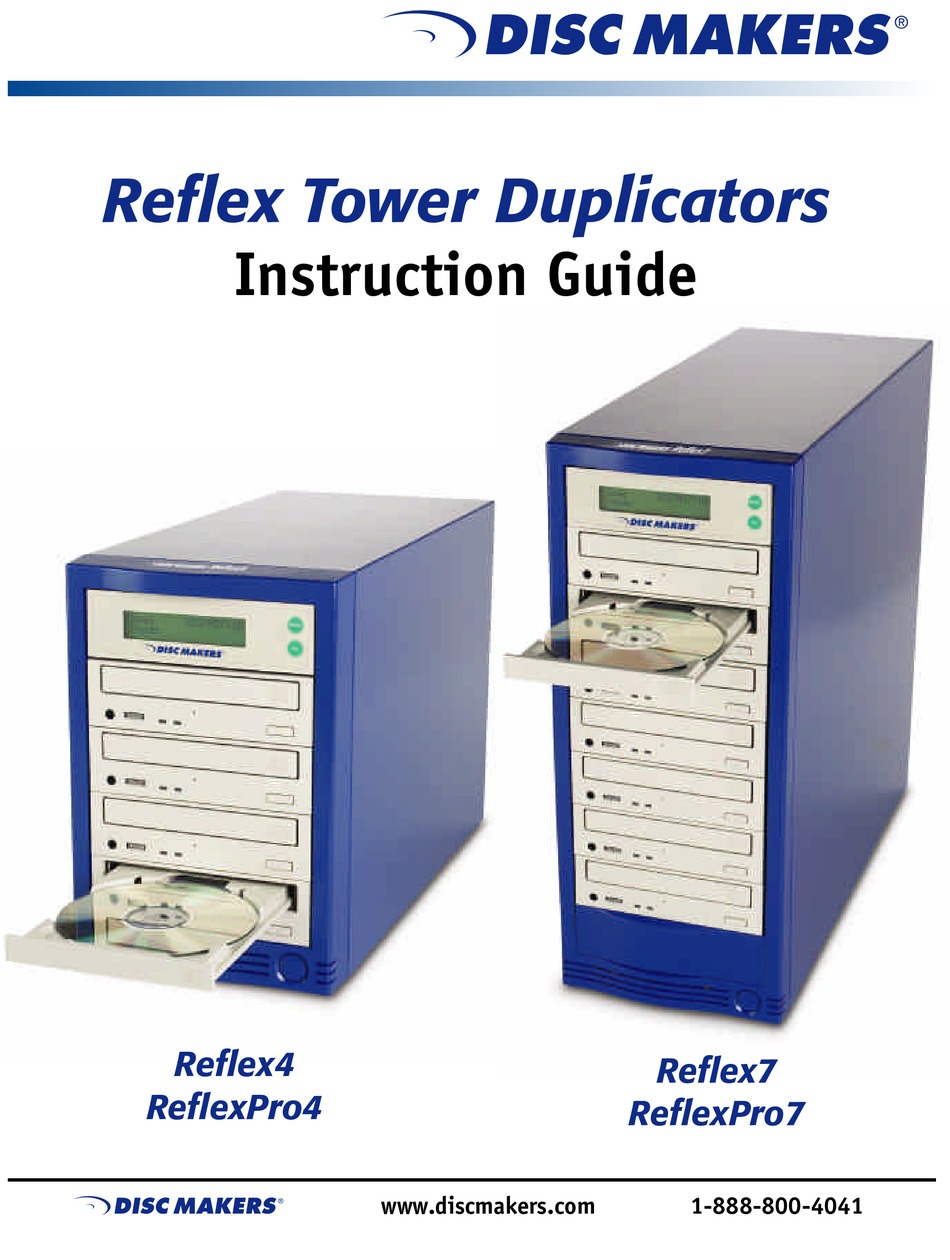

- Page 1 Reflex Tower Duplicators Instruction Guide Reflex4 Reflex7 ReflexPro4 ReflexPro7 www.discmakers.com 1-888-800-4041...
-
Page 2: Table Of Contents
Eject Disc Makers ........ -
Page 3: Technical Support
Need blank media or supplies? We carry a complete line of name brand blank CD-Rs and DVD-Rs, including our own Disc Makers premium brand. We also have an extensive line of pack- aging and mailing supplies, as well as peripherals for your CD-R duplication system. -
Page 4: Getting Started
Disc Makers’ Reflex tower duplicators are designed to provide you with production-level CD duplication capability combined with an easy user interface, simple installation, and fast throughput. GETTING STARTED Carefully remove your new CD-R duplicator from the shipping container. Please inspect the contents and verify them against your packing slip. -
Page 5: Reflex Quick Start Notes
Quick Start Notes for the Reflex (without hard drive): • Power On the system by switching the button on the lower right front of the unit. You will then see the system initialize and perform a self test on the front panel LED. The LED will show DETECT DRIVES and then automatically switch to COPY <... -
Page 6: Functions
• disc will be ejected when the data is loaded to the hard drive. In case of error, the LCD will show ERROR and the master disc will be ejected automatically. • To begin the duplication operation, switch back to the COPY function by pressing the STATUS button. -
Page 7: Copy And Compare
Copy and Compare The COPY AND COMPARE function will perform duplication and then compare the duplicated discs with the master disc or hard drive disc image. With this function, the discs that have been duplicated properly will be ejected and re-inserted again in the writ- ers automatically for comparison to the original disc or hard drive disc image. -
Page 8: Sub Functions
SUB FUNCTIONS The Sub Functions provided in the Reflex are designed to allow the user to alter and enhance the performance of the system according to their needs and applications. In the main menu, press and hold down the STATUS button for five seconds. The menu will be switched to the Sub Function menu. -
Page 9: Cd Reader
CD Reader Drive The CD-ROM (Reader) drive can be selected manually. The default setting is AUTO, the Reflex will select the CD-ROM drive automatically (the top drive). If you wish to change the default Reader drive to another drive other than the top, use this setting. Press the STATUS button to change the setting and the START button to exit. -
Page 10: Skip Read Error
Skip Read Error This setting controls error skipping during source reading. The default setting is NO. When an error is detected during the load or read in process, the duplicator will stop the read in or load and display a READ ERROR message. If the setting is YES, there will be no message shown even if there is an error in reading. - Page 11 Press once again START at END TRACK to exit. The ReflexPro will start loading those music tracks selected into the current partition of the hard drive. After loading, the master CD will be ejected automatically and the LCD will display PASS. You may change the master CD and run the EDIT function again to gather more music tracks from different master CDs.
-
Page 12: Delete
Example 2: CD #1: All tracks CD #2: 4-6 tracks Load CD #1 normally by using the LOAD function. Any data in the current partition will be erased and replaced automatically with the tracks of this CD. Load CD #2 by using the EDIT function but keep the data currently stored in the hard drive. -
Page 13: Trouble Shooting
TROUBLE SHOOTING If the unit does not operate with the power on: Check the connection of the power cable and power outlet. Also, check the Power Supply Fan to confirm its rotation. If an ERROR message appears on the LCD Display: Press the STATUS button to abort the operation.
