Building Automation Applications

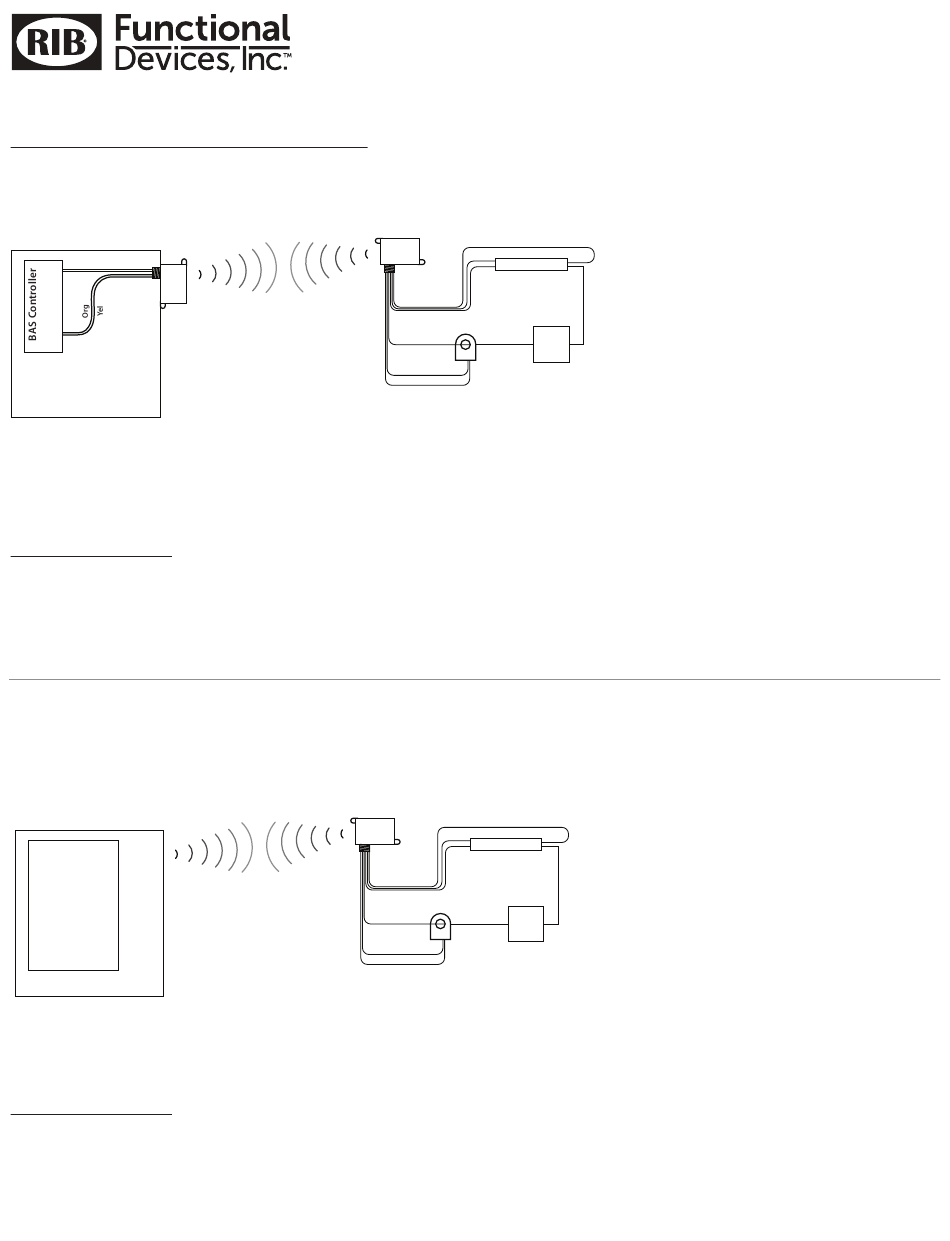

Bi-directional Control and Status: RIBWxxxB-EN2 installed at controller to RIBWxxxB-EN2 installed at load
BAS Panel
Wht/Red and Wht/Blu
DO
RIBWxxxB-EN2
DI
• Transmits ON command when dry contact input is closed and OFF command when dry contact input is opened.
• Retransmits dry contact input state every 70-140 seconds.
• Relay output state is saved at power loss. Relay output is restored when power is recovered. (See *note at end of document)
• In this mode, one RIB can only be paired with one other RIB and no other devices.
• Dry contact input closure on RIB1 will activate relay output of RIB2. Dry contact input opening on RIB1 will deactivate relay output of RIB2. RIB2 controls RIB1 in same manner.
• Optional modes: Repeater (see page 5)
Bi-directional Learn Procedure
1. Apply power to both RIB's.
2. Press and hold CLR button on RIB1 for 3 seconds until LED begins to flash.
3. LED will blink slowly.
4. Press and hold LRN button on RIB2 for 3 seconds to transmit teach telegram.
Bi-directional Relay Output and Dry Contact Sensor Input: Controller with Enocean Gateway [Enocean Equipment
Profile A5-38-08] to RIBWxxxB-EN2 [Enocean Equipment Profile A5-30-02] installed at load
BAS Panel
BAS Controller
with EnOcean®
Gateway
• Transmits on opening and closing of dry contact input and retransmits status every 70-140 seconds.
• Relay output state is stored at power loss. Relay output initiates in last stored state when power is restored. (See *note at end of document)
• In this mode, one RIB can only be paired with one PHC Gateway and no other devices.
• RIBWxxxB-EN2 only responds to Switching Command telegram from PHC Gateway (DB3 = 0x01). DB0.0 = 0 deactivates relay output and DB0.0 = 1 activates relay output.
• Optional modes: Repeater (see page 5)
Bi-directional Learn Procedure
1. Apply power to RIB.
2. Press and hold CLR button on RIB for 3 seconds until LED begins to flash.
3. LED will blink slowly.
4. Follow instruction from PHC Gateway manufacturer to send teach telegram.
393230C
RIBWxxxB-EN2 Application Manual
Bulletin B1594
RIBWxxxB-EN2
Org
60Hz A/C Power
Blk
Yel
RIBX Series
(not included)
Wht/Red
Wht/Blu
5. LED on RIB1 will stay ON for 4 seconds indicating telegram reception.
6. RIB2 will automatically listen for corresponding teach telegram which is automatically sent
from RIB1.
7. LED on RIB2 will turn ON for 4 seconds to indicate reception of teach telegram.
RIBWxxxB-EN2
Wht or Red
Org
60Hz A/C Power
Blk
Yel
Load
RIBX Series
(not included)
Wht/Red
Wht/Blu
5. LED on RIB will stay ON for 4 seconds indicating telegram reception.
6. PHC Gateway should automatically listen for corresponding teach telegram which is
automatically sent from RIB.
Code Version 1.x
Wht or Red
Load
page 1
