Summary of Contents for TESTO 511

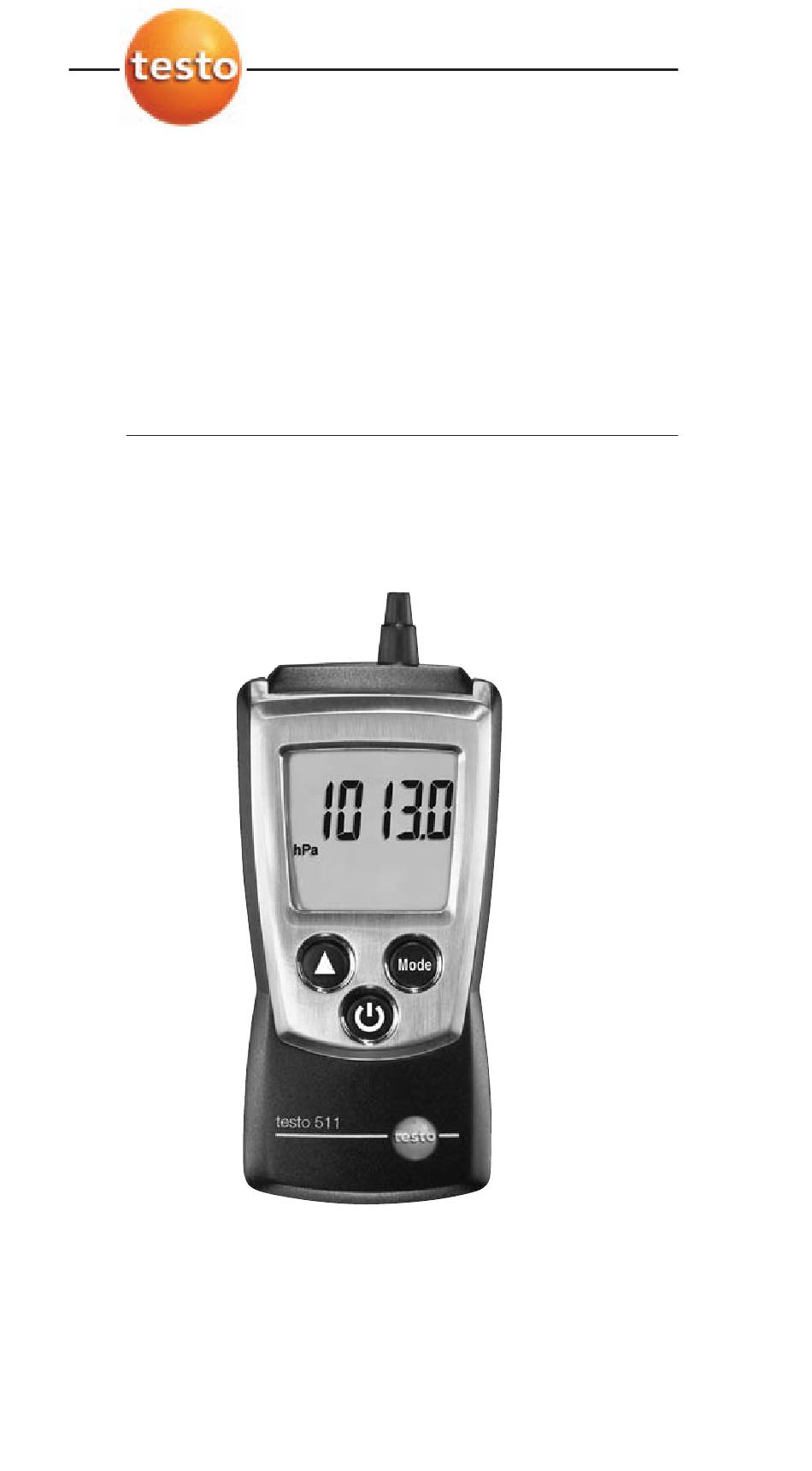

- Page 1 511 Bedienungsanleitung Instruction manual Mode d’emploi Manual de instrucciones Manuale di istruzioni Manual de instruções...
- Page 2 Bedienungsanleitung de ......3 - 9 Instruction manual en ......11 - 17 Mode d’emploi fr ......19 - 25 Manual de instrucciones es ......27 - 33 Manuale di istruzioni it ......35 - 41 Manual de instruções pt ......43 - 49...
- Page 3 Short manual testo 511 Short manual testo 511 Protection cap: Park position Absolute pressure sensor nipple connection Display Control keys Battery compartment, holding magnets (on rear) Basic s s ettings Instrument off >press and hold 2s > select with ( ), confirm with Unit of height above mean sea level: m, ft >...
-
Page 4: Safety And The Environment
Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them. Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly... -
Page 5: Specifications
Specifications Specifications Functions and use The testo 511 is an absolute pressure measuring instrument. It is normally used to measure absolute pressure, e.g. for pressure compensation in velocity measurement in ducts, laboratories and production processes. Barometric measurements and height measurements between two points are also possible. -
Page 6: Product Description

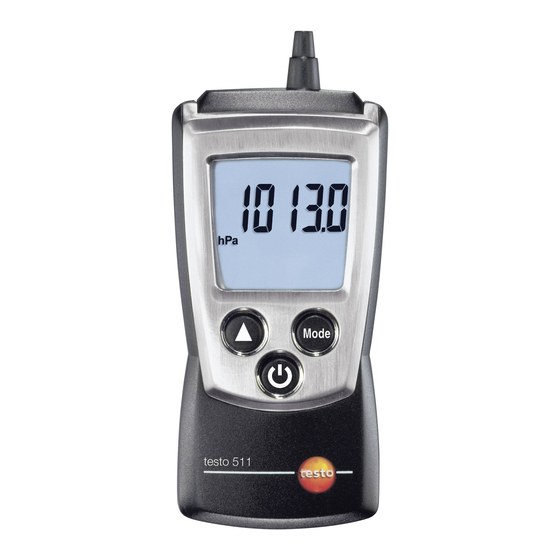

Product description Product description At a glance Protection cap: Park position Absolute pressure sensor nipple connection Display Control keys Battery compartment, holding magnets (on rear) First steps Inserting b b atteries: 1 To open the battery compartment, push the battery cover down. -
Page 7: Using The Product
Use the product 3 Press ) to confirm the input. 4 Repeat steps 2 and 3 for all functions. - The instrument changes to measuring mode. Using the product To measure the barometric pressure, the height above mean sea level must be set correctly, see chapter ‘First steps’, section ‘Basic settings (configuration mode)’. -
Page 8: Maintaining The Product
Maintaining the product Resetting M M ax/Min v v alues: 1 Press several times until the desired view appears. ---- 2 Press and hold until appears. 3 Repeat steps 1 and 2 for all values that are to be reset. Switching t t he i i nstrument o o ff: Press and hold until the display goes out. -
Page 9: Tips And Assistance
· Residual capacity <10 min: Change batteries. If we could not answer your question, please contact your dealer or Testo Customer Service. Contact details can be found on the guarantee card or on the Internet at: www.testo.com Accessories and spare parts Accessories and spare parts can be found in the product catalogues and brochures or in the internet at: www.testo.com... - Page 10 AG Postfach 11 40, 79849 Lenzkirch Testo-Straße 1, 79853 Lenzkirch Telefon: (0 76 53) 6 81 - 0 Fax: (0 76 53) 6 81 - 1 00 E-Mail: info@testo.de Internet: http://www.testo.com 0973.5111/01/T/dr/01.03.2007...
