Summary of Contents for TESTO 511

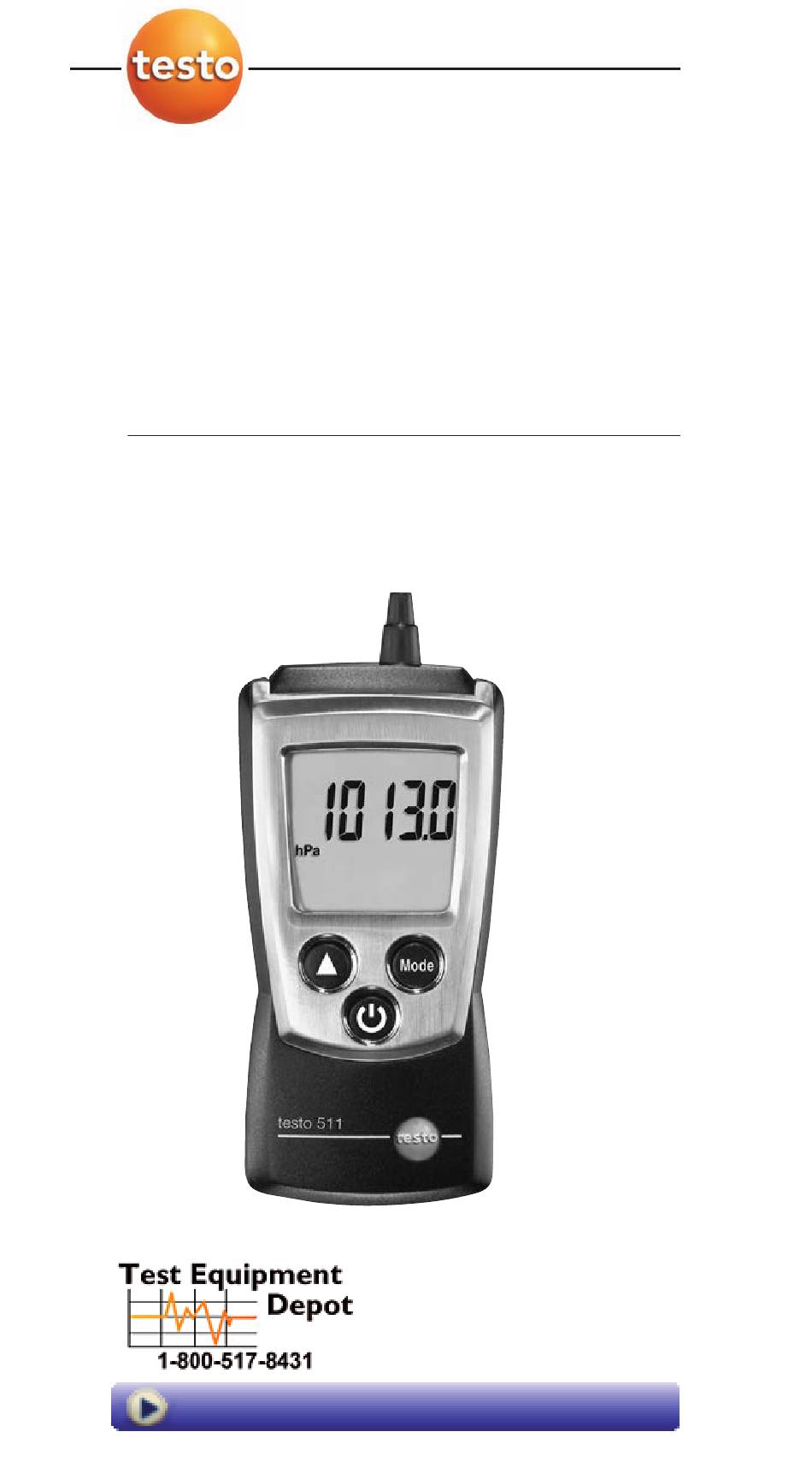

- Page 1 511 Instruction manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 2 Short manual testo 511 Short manual testo 511 Protection cap: Park position Absolute pressure sensor nipple connection Display Control keys Battery compartment, holding magnets (on rear) Basic settings Instrument off >press and hold 2s > select with ( ), confirm with Unit of height above mean sea level: m, ft >...
-
Page 3: Safety And The Environment
Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them. Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly... -
Page 4: Specifications
Specifications Specifications Functions and use The testo 511 is an absolute pressure measuring instrument. It is normally used to measure absolute pressure, e.g. for pressure compensation in velocity measurement in ducts, laboratories and production processes. Further measurement parameters are barometric (surface) pressure (= pressure at sea level) and altitude above sea level. -
Page 5: Product Description
Product description Product description At a glance Protection cap: Park position Absolute pressure sensor nipple connection Display Control keys Battery compartment, holding magnets (on rear) First steps Inserting batteries: 1 To open the battery compartment, push the battery cover down. 2 Insert batteries (2x 1.5 V type AAA). -
Page 6: Using The Product
Use the product 3 Press ) to confirm the input. 4 Repeat steps 2 and 3 for all functions. - The instrument changes to measuring mode. Using the product barom For measuring barometric (surface) pressure (= pressure at sea level), the following must be observed: ·... -
Page 7: Maintaining The Product
Maintaining the product Changing the parameter: The parameter can be changed. Adjustable parameters · Absolute pressure · barom (barometric pressure) · Altitude (height above mean sea level) Press several times until the desired parameter appears. Changing the display view: Adjustable views ·... -
Page 8: Tips And Assistance
Tips and assistance 17 Tips and assistance Questions and answers Question Possible causes/solutions Hi or Lo · Readings outside the measuring range (too high, too low): Keep to the permitted measuring range. · Residual capacity <10 min: Change batteries. - Page 9 Notes...
- Page 10 Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com 0973.5111/03/Sh/dr/10.04.2008...
