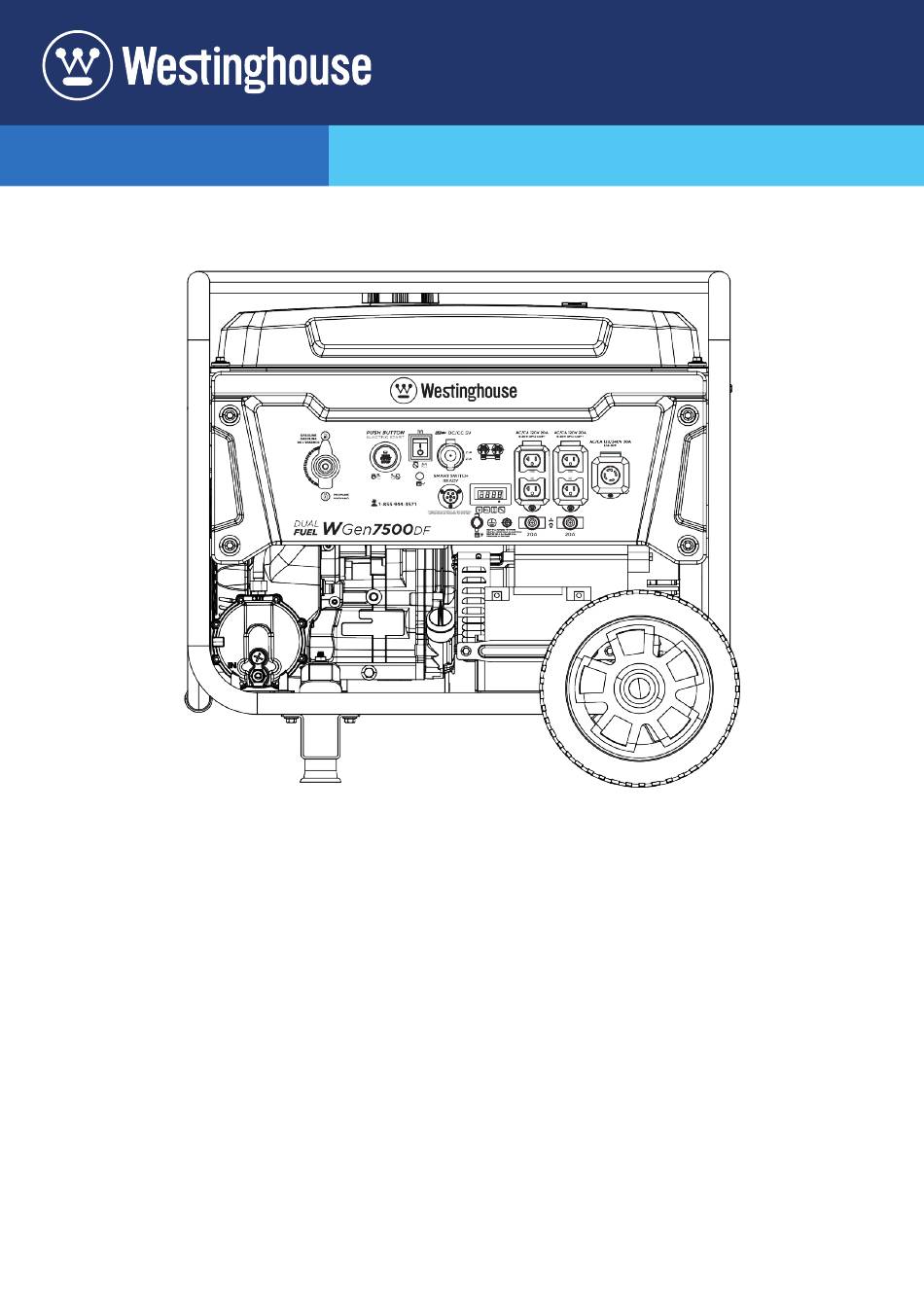

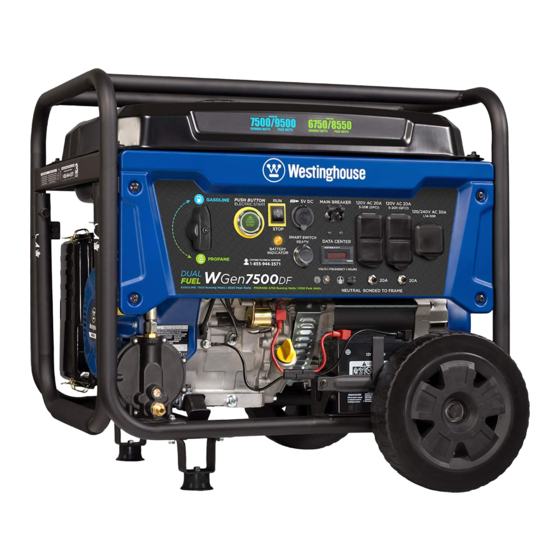

  • Page 1 SAFETY USER MANUAL WGen7500 Dual Fuel Portable Generator Gasoline: 7500 Running Watts | 9500 Peak Watts Propane: 6750 Running Watts | 8550 Peak Watts DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
  • Page 2: Table Of Contents

    The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice. 2 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 3: Introduction

    Or scan the following QR code with your smartphone camera to be directed to the link. Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage. Westinghouse Outdoor Power Equipment, LLC | 3...
  • Page 4: Safety

    Do Not Operate in Wet Conditions environment, or cause the equipment to operate improperly. Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. 4 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 5: Safety Instructions

    The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Westinghouse Outdoor Power Equipment, LLC | 5...
  • Page 6 • Gas has a distinctive odor, this will help detect potential leaks quickly. • Gas vapors can cause a fire if ignited. • Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. 6 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 7 7” to 14” of water column. A certified plumber must ensure that the pressure is correct or install a step down regulator if needed. Westinghouse Outdoor Power Equipment, LLC | 7...
  • Page 8: Safety Labels And Decals

    SAFETY SAFETY LABELS AND DECALS 8 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 9 SAFETY SAFETY LABELS AND DECALS Westinghouse Outdoor Power Equipment, LLC | 9...
  • Page 10: Control Panel Components

    11. Battery Charging Port: Used to charge the battery with the included battery charger. Type A USB plugs. 12. Smart Switch Outlet: Connects the Westinghouse 5. Main Circuit Breaker: The main circuit breaker controls ST Switch (sold separately) to the control panel.
  • Page 11: Generator Components

    FEATURES GENERATOR COMPONENTS Westinghouse Outdoor Power Equipment, LLC | 11...
  • Page 12: Assembly

    Note: The wheels are only intended for hand transport. • Washer The wheels are not suitable for towing the generator • Cotter pin either on or off-road. If any parts are missing, contact our service team at service@wpowereq.com or call 1-855-944-3571. 12 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 13: Initial Oil Fill

    Always mix the correct amount of fuel stabilizer to gasoline 3. Replace the oil dipstick and hand-tighten. in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system. Westinghouse Outdoor Power Equipment, LLC | 13...
  • Page 14: Connect A Lpg/Propane Tank

    IMPORTANT: DO NOT use thread seal tape or any other type of sealant to seal the LPG/propane hose connection. 5. Tighten the LPG/propane hose connector to the generator with a 19 mm or adjustable wrench. DO NOT over-tighten. Torque: 5-10 lb-ft. 14 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 15: Connect The Battery

    If the leak continues or if the leak is not at a fitting then do not use the generator and contact customer service. IMPORTANT: Keep the propane tank valve in the fully closed position unless in use. Westinghouse Outdoor Power Equipment, LLC | 15...
  • Page 16: Operation

    (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation. 16 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 17: High Altitude Operation

    Release the button. be attached to the recoil handle or control panel. If your 6. Turn the generator battery switch to the OFF position. unit was shipped without a key fob, contact Westinghouse The remote is now paired. customer service.
  • Page 18: Fuel Selector Switch

    Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly. Cold start: Close the choke by moving it right toward the front handle of the generator. 18 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 19: Starting The Engine: Propane

    (more than one month before next use), refer to running if a propane tank is connected to the generator the Battery Maintenance and Storage sections of this BEFORE operation. manual for information regarding battery charging and fuel deterioration. Westinghouse Outdoor Power Equipment, LLC | 19...
  • Page 20: Ac Circuit Breakers

    Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2. 20 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 21: Extension Cords

    ST SWITCH people inside the home. Always use battery-powered The wGen7500DF is compatible with the ST Switch, carbon monoxide detector (s) that meet current UL 2034 purchased separately. When utility power is on it will safety standards when running the generator.
  • Page 22: Transporting

    Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. 22 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 23: Maintenance

    4. Remove the foam air filter and wash it by submerging the element in a solution of household detergent soap and warm water. Slowly squeeze the foam to thoroughly clean. Westinghouse Outdoor Power Equipment, LLC | 23...
  • Page 24: Engine Oil Level Check

    1. Place the generator on a level surface and allow the engine to cool for several minutes. 2. With a damp rag, clean around the oil dipstick. 3. Remove the oil dipstick and wipe the dipstick clean. 24 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 25: Engine Oil Change

    L and H marks on the dipstick. Stop 8. Attach the spark plug boot. frequently to check the oil level. DO NOT overfill. Maximum oil capacity: 1.16 Quart (1.1 Liter) Westinghouse Outdoor Power Equipment, LLC | 25...
  • Page 26: Spark Arrestor Service

    4. Install the new fuel filter in the reverse order of removal. 6. Install the battery into the generator. Reinstall the battery hold-down plate and tighten the bolt. 7. Connect the quick-connect plug. 26 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 27: Storage

    • With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion. Westinghouse Outdoor Power Equipment, LLC | 27...
  • Page 28: Valve Clearance

    4. Both the rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360°. 5. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance. 28 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 29: Troubleshooting

    No power at AC receptacles Replace or repair tool or appliance. Stop and Faulty power tool or appliance. restart the engine. Contact Westinghouse customer service toll- Faulty generator. free at 1 (855) 944-3571. Westinghouse Outdoor Power Equipment, LLC | 29...
  • Page 30 Start the engine and allow Gasoline not purged from the carburetor before the engine to run until the gasoline has been switching to propane. consumed in the carburetor. Begin propane start up procedure. 30 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 31: Exploded Views

    EXPLODED VIEW EXPLODED VIEW A Westinghouse Outdoor Power Equipment, LLC | 31...
  • Page 32 CYLINDER HEAD ASSEMBLY 14.1 260402 FLYWHEEL 271005 CYLINDER HEAD 14.2 264601 IMPELLER 271702 INTAKE VALVE 14.3 264501 STARTER PULLEY 14.4 90004 FLYWHEEL NUT 275902 INTAKE VALVE 261807 EXHAUST VALVE 93513 VALVE SEAL 266002 VALVE SPRING 32 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 33 16.4 269902 WIRE CLAMP 16.5 91348 BOLT M8*35 91817 OIL DRAIN BOLT 94004 OIL DRAIN BOLT WASHER 96075 HEAD COVER SEAL WASHER 96081 CARBURETOR WASHER 5205 AIR CLEANER ELEMENT 96086 AIR FILTER GASKET Westinghouse Outdoor Power Equipment, LLC | 33...
  • Page 34 EXPLODED VIEW EXPLODED VIEW B 34 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 35 12.5 6796 DC SOCKET 527603 HANDLE PLUG 12.6 6523 BREAKER 527612 BOLT M10X12.5X53.5 12.7 6275 SOCKET 526620-116 HANDLE 12.8 6845 WATERPROOF CAP 528607 HANDLE GUM COVER WHEEL ASSEMBLY 94207 FLAT WASHER 523646 WHEEL Westinghouse Outdoor Power Equipment, LLC | 35...
  • Page 36 519215 FUEL CAP 6866 SPARK ARRESTER 518801 FUEL TANK FILTER 545331 BATTERY 99504 PRESSURE REDUCING VALVE 99010 FUNNEL 99546 SPARK PLUG SLEEVE 511076 OIL BOTTLE 99025 CHARGER 94432 WRENCH 511008 NYLON BRAIDED TUBE 36 | Westinghouse Outdoor Power Equipment, LLC...
  • Page 37: Schematics

    SCHEMATICS SCHEMATICS Westinghouse Outdoor Power Equipment, LLC | 37...
