Summary of Contents for DELTA DORE TYXIA 631
- Page 1 PACK TYXIA 631 Pack for control of blackout blind, awning and indoor venitian blinds...
-
Page 2: Table Of Contents
Contents 1/ Remote control installation ......4 1.1 Mounted on the wall ......... 4 1.2 Placed on a flat surface ......4 2/ Installing the receiver ........5 2.1 Connection instructions for terminals 1 2 3 4..........7 2.2 Connection instructions for IN1 - COM - IN2 terminals ......8 2.3 ... -
Page 3: 1/ Remote Control Installation
1/ Remote control installation 2/ Installing the receiver 1.1 Mounted on the wall Recommendations IMPORTANT: the control wires are not insulated from the mains power supply. All connected equip- ment must be marked CE and meet the require- ments of the low voltage devices as well as assembly recommendations. -
Page 4: 2/ Installing The Receiver
2/ Installing the receiver 2.1 Connection instructions 230V~ Switch off the installation for terminals 1 2 3 4. Ø 0,75 - 1,5 mm power supply Strip the wires while respecting the strip length specifi ed on the product. • • Solid wires Stranded wires You can install the receiver for roller shutter in... -
Page 5: Connection Instructions For In1 - Com - In2 Terminals
2/ Installing the receiver 2.2 Connection instructions for 2.3 Connection IN1 - COM - IN2 terminals - Connect the motor control wires to terminals 3 - Use the wires supplied. and 4 (motor lowering control wire to terminal 3, - Push the wire fully into the raising control wire to terminal 4). -
Page 6: 3/ Wireless Association
3/ Wireless association This chapter allows you to associate a remote ❷ On the remote control press at the control with an X3D wireless motor or X3D roller same time and hold for 3 seconds, until the red shutter receiver. LED fl ashes. -
Page 7: Associate Multiple Receivers Or Motors
3/ Wireless association 3.1.2 Several receivers or motors are in association 3.2 Associate multiple receivers standby mode or motors ❶ On the remote control press ❶ Set the receivers to association standby mode. at the same time and hold for 3 seconds, until the red ❷... -
Page 8: 4/ Configuring The Receiver
4/ Confi guring the receiver Configure the receiver according to the type of To modify the receiver configuration switch connected. ❶ Press the receiver’s button for 6 seconds. Mode 1: Hold switch ❷ The LED fl ashes, then becomes steady, release. Raise/Stop/Lower The number of fl ashes corresponds to the current mode. -
Page 9: 5/ Learning For The Shutter Travel Time
5/ Learning for the shutter travel time 6/ Learning for the tilt time Perform a complete cycle from stop to stop: Do not carry out this operation, if the TYXIA 5731 controls an awning. ❶ Lower or raise the roller shutter completely to the stop. -
Page 10: 7/ Save The Favourite Positions
7/ Save the favourite positions 8/ Use • Press to control the roller shutter. You can save up to 2 favourite positions: The red then green LED indicates that the receiver has correctly received the information. ❶ ❷ Set the shutter to the required position (e.g. -
Page 11: 9/ Troubleshooting
CR 2430 required to select the motor (receiver) to remove. - Press the button. The shutter starts. An additional user guide is available on the - Press button A to exit. TYXIA 5731 page of the DELTA DORE website. www.deltadore.com... -
Page 12: 10/ Technical Characteristics

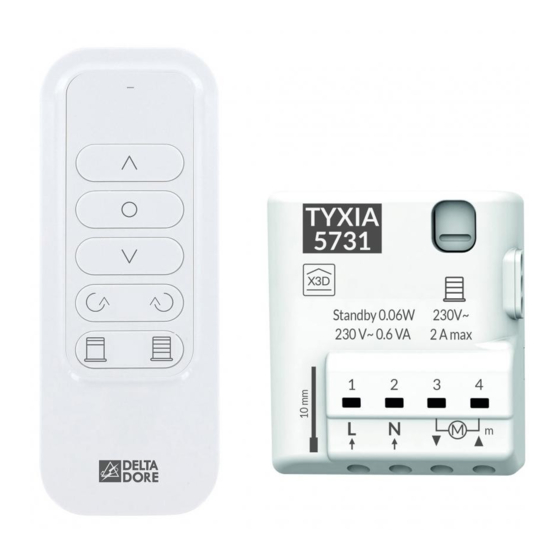

10/ Technical characteristics Remote control TYXIA 1705 Receiver TYXIA 5731 • Power supply: 230 V~ 0.6 VA • Power supplied by 3V lithium battery, CR2430 • 2 Powered contact outputs: 2A • Class III insulation • Stand-by consumption: 0.06 W •... - Page 13 www.deltadore.com...
