PACK TYXIA 641
Pack volets roulants et lampe d'appoint connectés
Notice d'installation
FR
Installation instructions
EN
Installationsanleitung
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYXIA 641 and is the answer not in the manual?

Questions and answers

Related Manuals for DELTA DORE TYXIA 641

Summary of Contents for DELTA DORE TYXIA 641

  • Page 1 PACK TYXIA 641 Pack volets roulants et lampe d’appoint connectés Notice d’installation Installation instructions Installationsanleitung...

  • Page 2: Table Of Contents

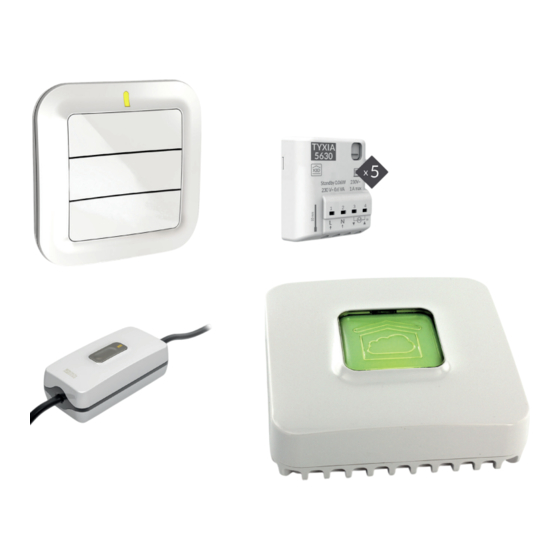

    CONTENTS PACK COMPOSITION CONTENTS - 5 X3D receivers for roller shutter 1 A max., TYXIA 5630 1/ Installation - 1 receiver switch to control auxiliary light, TYXIA 6610 1.1 TYXIA 2330 transmitter switch - 1 transmitter switch, TYXIA 2330 - 1 TYDOM 1.0 home automation box and its connector 1.2 TYXIA 6610 transmitter switch 1.3 Receiver for TYXIA 5630 roller shutter 1.4 TYDOM 1.0...

  • Page 3: Tyxia 2330 Transmitter Switch

    CONTENTS 1/ INSTALLATION 6/ Technical characteristics 1.1 TYXIA 2330 TRANSMITTER SWITCH 6.1 TYXIA 2330 transmitter switch This unit must not be placed on a metal surface. 6.2 TYDOM 1.0 home automation box 6.3 TYXIA 6610 transmitter switch Click CR 2430 Click 1.2 TYXIA 6610 TRANSMITTER SWITCH Create an extension for the light 230V~...
  • Page 4 1/ INSTALLATION Replace the light switch with the TYXIA 6610 230V~ ❶ Check that the installati on is switched off . ❺ Fit the wires for the light and the mains supply. ❷ Remove the cable glands. ❻ Place the wires in the cable ducts. Insert the cable glands into their housing.

  • Page 5: Receiver For Tyxia 5630 Roller Shutter

    1/ INSTALLATION 1.3 RECEIVER FOR TYXIA 5630 ROLLER SHUTTER Connecti on instructi ons for IN1 - COM - IN2 terminals Use the wires supplied. Push the wire fully into the terminal. Recommendati ons • IMPORTANT: the control wires are not insulated Use an electrically from the mains power supply.

  • Page 6: Tydom

    TYBOX 5000 1/ INSTALLATION Press 3 seconds sim On the "mode" an TO ASSOC 1.4 TYDOM 1.0 A. Home automati on box for the TYDOM ❶ smartphone and tablet applicati on B. Mains power supply C. Ethernet cable ❷ Carrier 9:41 AM 100% Carrier 9:41 AM...

  • Page 7: 2/ Wireless Association

    Beyond 16 transmitt ers, see the noti ce for TYXIA 2330, that is available SUPPORT SUPPORT Reception Photos Prog. Reception Scenario Photos Rooms Prog. Scenario Rooms on the DELTA DORE website Aide Aide ❸ Select 'Add a device' ❹ Select 'Blinds' Carrier 9:41 AM Carrier 100% 9:41 AM Carrier 100% 9:41 AM...

  • Page 8: With The Tyxia 6610 Receiver Switch

    Ajouter un équipement Ajouter un équipement Volets Volets Volets Volets Éclairage Éclairage Éclairage Éclairage VOLETS VOLETS Chauffage Chauffage Chauffage Chauffage Volet salon Volet salon 2/ WIRELESS ASSOCIATION Garage Garage Électrique Électrique Volet chambre Volet chambre Hydraulique Hydraulique Portail Portail Volet cuisine Volet cuisine Alarme Alarme...

  • Page 9: 3/ Learning For The Shutter Travel Time

    Ajouter un équipement Volets Volets Ajouter un équipement Volets Volets Éclairage Éclairage Éclairage Éclairage VOLETS VOLETS Chauffage Chauffage Chauffage Chauffage Volet salon Volet salon 2/ WIRELESS ASSOCIATION Garage Garage Électrique Électrique 3/ LEARNING FOR THE SHUTTER TRAVEL TIME Volet chambre Volet chambre Hydraulique Portail Portail...

  • Page 10: 4/ Installation Configuration

    4/ INSTALLATION CONFIGURATION Confi gure the receiver according to the type of switch connected 4.1 FAVOURITE POSITION Mode 1 (by default): ❶ Place the roller shutt er in favourite positi on Hold switch Raise/Stop/Lower ❷ Press the butt ons for 5 seconds Mode 2: to save positi on 1, and on butt ons Raise/Lower...

  • Page 11: 5/ Troubleshooting

    5/ TROUBLESHOOTING 5.1 TYXIA 2330 TRANSMITTER SWITCH 5.2 SIGNALS AND POSSIBLE FAULTS ON THE TYDOM 1.0 Removing a motor or functional receiver System status Green and System accessible locally and remotely, user logged in Green ..Green ❶ Press the T1 button for 3 seconds, flashing then successively press the button...

  • Page 12: Summary Of Functions Accessible Using The Button

    5/ TROUBLESHOOTING Advanced functi ons 5.3 SUMMARY OF FUNCTIONS ACCESSIBLE USING THE BUTTON OF THE TYXIA 5630 RECEIVER > > > > > > 3’’ 6’’ 10’’ 20’’ 30’’ > > 3’’ Fixed DHCP / IP 15’’ Delete password 30’’ Association Removing an Remove Factory...
  • Page 13 5/ TROUBLESHOOTING 6/ TECHNICAL CHARACTERISTICS 6.1 TYXIA 2330 TRANSMITTER SWITCH Remove an association (the removal method varies according to the transmitter associated, refer to the transmitter's user guide) • Battery life of 10 years CR 2430 Example of removing a remote control association. •...
  • Page 14 6/ TECHNICAL CHARACTERISTICS 6.2 TYDOM 1.0 HOME AUTOMATION BOX 6.3 TYXIA 6610 TRANSMITTER SWITCH • Main power supply 230 V~/240 V~, +/-10%, 50/60 Hz, • Main power supply 230 V~/240 V~, +/-10%, 50/60 Hz, 2 VA • Radio frequency 868.7 MHz to 869.2 MHz •...
  • Page 15 www.deltadore.com...
