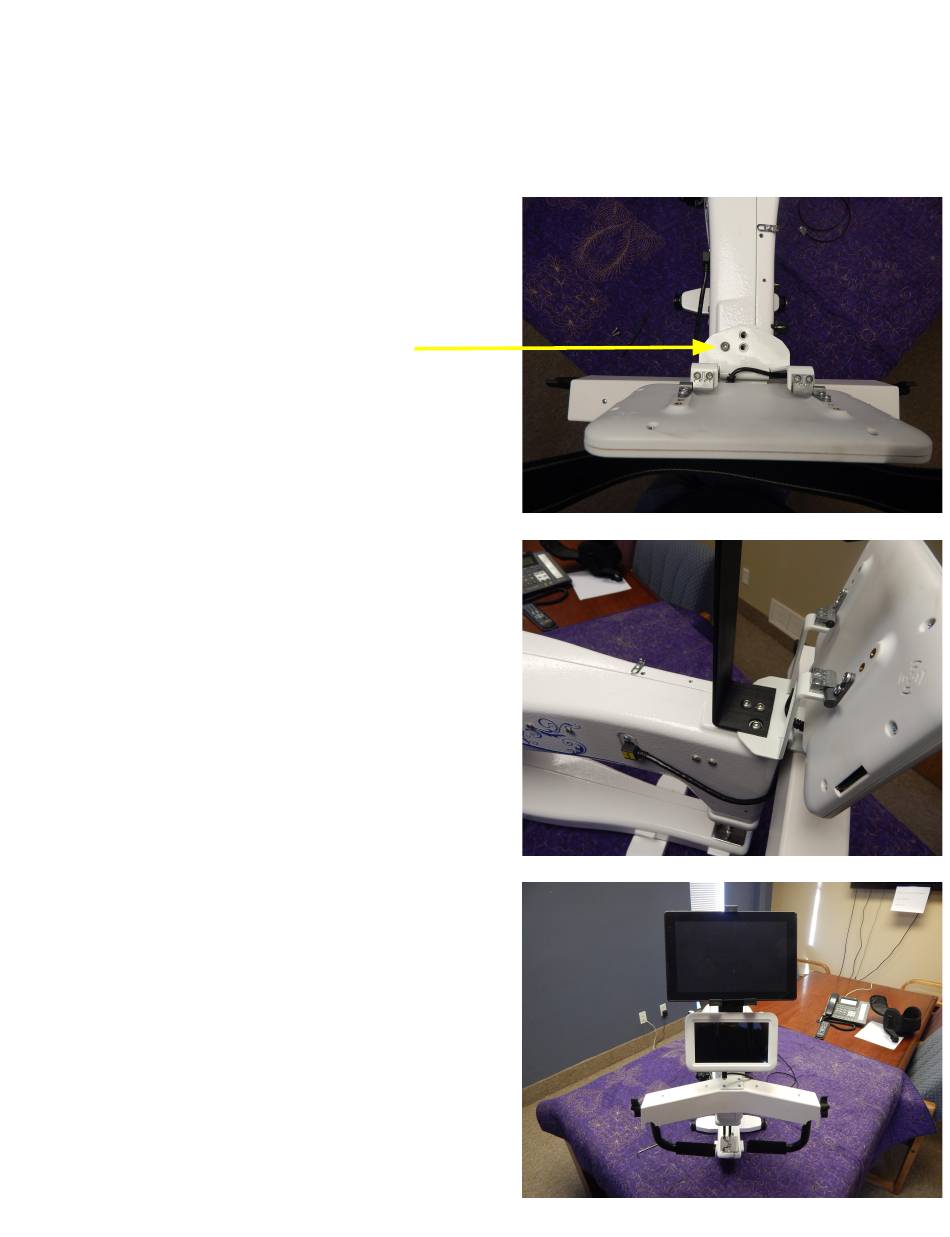

- Page 1 King Quilter II Installation Instructions 1. Tablet Bracket Remove the two tablet bracket screws as pictured. **Note: Do not remove this screw. Align Butler tablet bracket as pictured and replace tablet bracket screws. Butler tablet should appear as pictured.
- Page 2 Butler in the remote port. 2. Handlebar Cable Connect the USB connector of the handlebar cable to the King Quilter II as pictured. The opposite end of the handlebar cable will connect to the Butler in the handlebar port.
- Page 3 How to Attach Butler Robotics to a Handi Quilter/Baby lock with Studio, Fusion, Pearl, or Momentum Frame : 6/23/16 evision...
- Page 4 In order to accommodate all machine types we use universal parts bags, not all parts will be used in every installation. Bag # Contents Picture Vary by machine Cables 1-White belt (12’) 4 - Plastic belt clamps 4 - Screw (4-40 x 0.5) 1 - Black Belt (86”) 4 - Plastic Belt Clamps 4 - Screw (4-40 x 0.5)
- Page 5 Bag # Contents Picture 1 - Universal Display Bracket 4 - Screw (M6 x 8mm) 4 - Nut (M6) 2 - Screw (8-32 x 0.5) 2 - Poly disc washers 2- Screw (M4 x 20mm) 2- Washer 3- Hex head bolts (M6 x 45mm) 1- Rear idler bracket 1- Tensioner bracket 2- Lock nut (1/4”-20)
- Page 6 Attach the Front Carriage Bracket (Bag M8) Front Carriage Attach the front Bracket carriage bracket to black motor box using the provided M5 x 12mm screws. Black Motor Box Install the motor box bracket underneath the front of the carriage. Line the holes on the bracket with the existing holes on the...
- Page 7 Attach the Rear Idler Bracket (Bag I8) Line the idler bracket with the existing holes on the rear of the carriage and attach it using the provided 1/4”-20 x 1” screws Idler Bracket Page 5...
- Page 8 Install Black Belt (Bag Y1 and Bag Y13) Attach the two black Carriage bracket belt brackets together using the provided winged screw and screw. If the bracket is pres- installed continue to step 2. Y-bracket Insert the winged- screw from the front and the normal screw from the back.
- Page 9 Install black belt assembly to the underside of the front carriage wheels. Black Belt Assembly Black Belt Assembly Page 7...
- Page 10 Use the belt clamps to attach one side of the black belt to the Y-bracket. Make sure the teeth face away from the carriage. See Appendix A for help with belt clamps. Loop the belt around the motor pulley with the teeth facing in.
- Page 11 Install White Belt on Handi Quilter Studio Frame (Bag X1 and Bag X7) Remove the screws indicated to the right from the frame. Position the bracket onto the frame and use the screws removed in step one to secure it to the frame.
- Page 12 Attach the eye bolt into one of the slotted holes on the bracket so that it is in line with the pulley on the back of the motor box. Loop the white belt through the eye on the bolt, and secure with a belt clamp.
- Page 13 Install White Belt on Handi Quilter Fusion Frame (Bag X1 and Bag X7) Attach the clamp brackets to the using the provided screws. Make sure that they are inline with the pulley on the back of the motor box. Attach the eyebolt to the inner clamp with one of the lock nuts on each side of the clamp.
- Page 14 Use a belt clamp to secure the belt to each of the eyebolts. Release the belt lock lever and run the belt as shown with the teeth facing up. Then reengage the lock lever. Page 12...
- Page 15 Install White Belt on Baby Lock Pearl Frame (Bag X1 and Bag X5) Clamp the white belt brackets onto the each end of the frame using the provided long screws. (Level the belt and brackets with the pulley on motor box.) Attach the white belt to the eye-bolt using the belt clamps to install...
- Page 16 Release the belt lock lever and run the belt as shown with the teeth facing up. Then reengage the lock lever. Install White Belt on Baby Lock Momentum Frame (Bag X1 and Bag X5) Clamp the white belt brackets onto the each end of the frame using the provided long screws.
- Page 17 Attach the white belt to the eye-bolt using the belt clamps to install onto the belt bracket. Install the eye-bolt into one belt bracket, stretch white belt the length of the frame, belt teeth facing up. Attach the other end of the white belt to the remaining eye-bolt and install onto opposite...
- Page 18 Install Display (Bag D5) Remove the 3 screws holding the handle to the machine. Then line up the display bracket with the three holes. Use the three M6 x 45mm bolts to attach the display to the machine. Page 16...
- Page 19 Note: For some display models, the tab will need to sit in front of the HQ display For standard displays, use the provided screws to attach the display to the bracket. Page 17...
- Page 20 Connect Cables Attach one end of the network cable to the Remote port on the Motor box. Run the cable around the back of the machine up to the display. *Image not representative of machine type. Page 18...
- Page 21 Connect the other end of the display cable into the display. Android cables will plug into the RJ45 network connection on the hub on the back of the tablet. Standard displays will plug into the slot on the bottom of the display.
- Page 22 Use the anchors and zip-ties from bag Z1 to secure the cables to the carriage and the machine in such a way that they will not be in the way of moving parts. *Image not representative of frame type. Avante: Remove the handlebar wires from the machine.
- Page 23 Loosen the nut on the eye-bolt that is on the inside then tighten the nut that is on the outside to adjust the tension of the white belt. The belt clamps may need to be readjusted. *Images not representative of frame type. Adjust the tensioner bracket on the rear idler pulley to adjust...
- Page 24 Set Machine Type Important: If the machine has been upgraded to PerfectStitch, then the machine type is to be set to Default. Android Tablet Power on the display, go to Settings > Machine and set the machine type to HQ/ Babylock.
- Page 25 Appendix A - How to use Belt Clamps A belt clamp consists of two clamps and two screws. Using a Phillips screwdriver, insert each screw on opposite sides of the clamps and tighten halfway. Page 23...
- Page 26 Thread the belt between the clamps, loop it around and reinsert it between the clamps. Align the belt teeth, then finish tightening the clamps. Page 24...
- Page 27 Appendix B- Additional help Installing cables Please refer to the Connecting Robot to Quilt Machine instruction set for help installing cables. Power on the robotics Use the power switch located on the side of the motor box with the ports to power the motor box off and on.
- Page 28 Still need help? Visit support.quiltez.com for tutorial videos and additional help documentation...
